GP44 Semi-Automatic Strapping Machine
OPERATION -40-

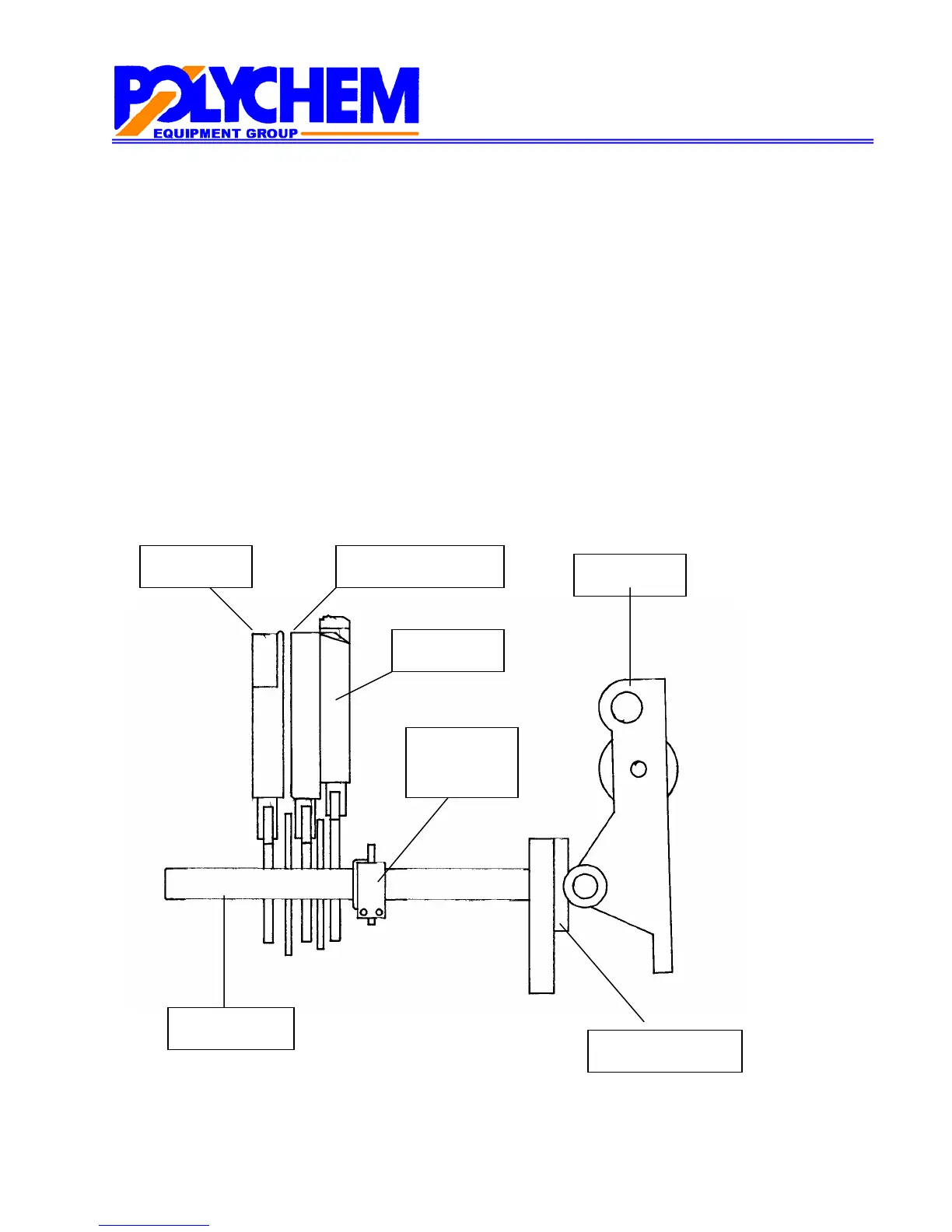

SETTING HOME POSITION & INITIAL RETRACTION POSITION FOR CAM SHAFT
1. S2: Sets stopping position for home position and initial retraction position.
NOTE: Home position delayed by TR12 (in PLC) after S2 turns off
Initial retraction position delayed by TR93 (in PLC) after S2 turns on
S2 HOME
Prox.
Cam Shaft
Bracket Cam
Bracket
1
st
Clamp
2
nd
Clamp Compression
