Polychem GP44 - Part List: Arch A (Fig. A-9 P-1)

GP 44
Spare Parts - 16 -

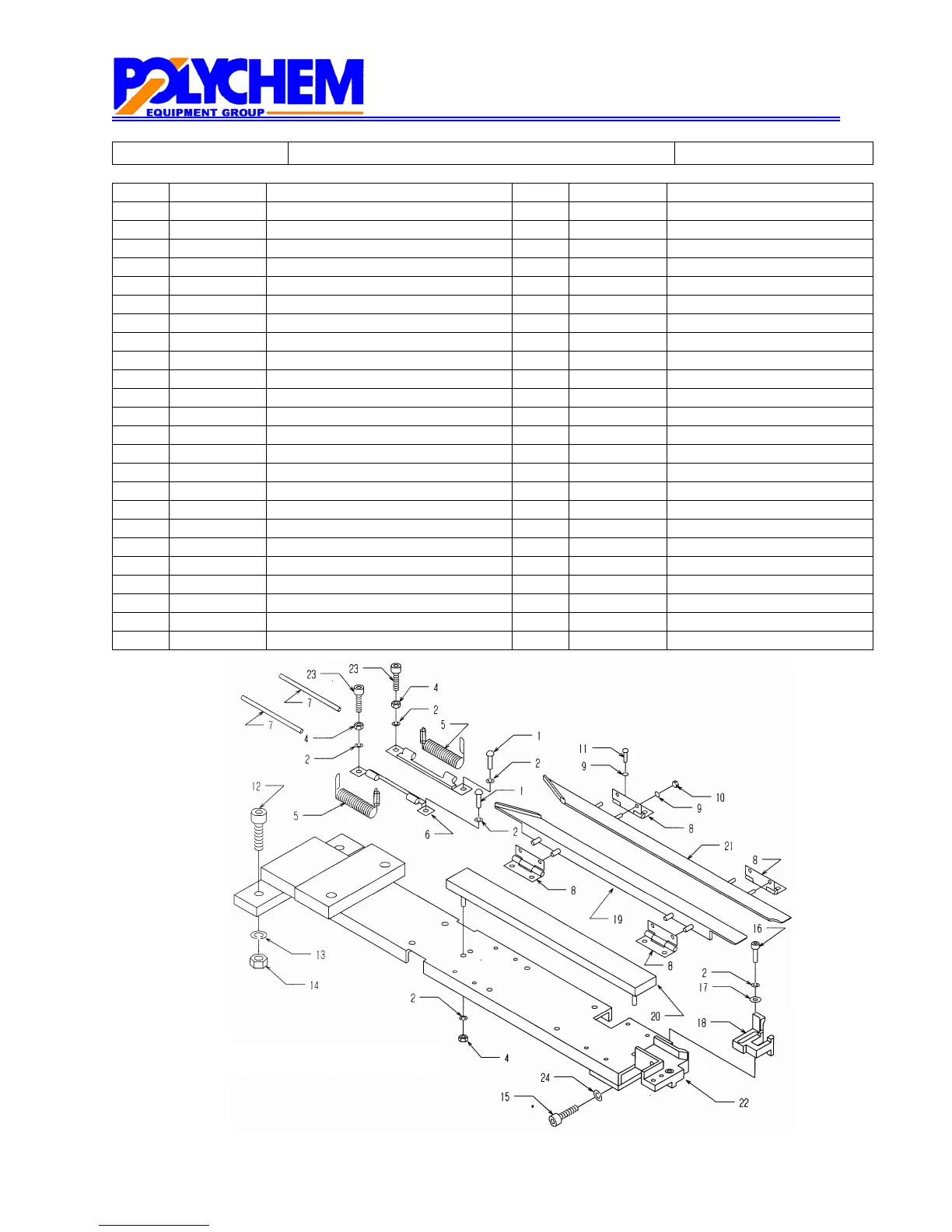

PART LIST
ARCH A FIG. A-9P-1
Key Part-No Description Key Part-No Description
1 B00108 Pan Head Screw M4×8 19 M09269 Arch Front Hinge 600A
2 B27100 Spring Washer M4 19 M09270 Arch Front Hinge 800A
3 19 M09271 Arch Front Hinge 1000A
4 B17100 Nut M4 19 M09272 Arch Front Hinge 1200A
5 A00299 Spring 19 M09273 Arch Front Hinge 1400A
6 P15059 Spring Base 19 M09274 Arch Front Hinge 1600A
7 L12023 Spring Pin 20 M09252 Arch Rail 600A
8 P39001 Hinge 2 20 M09253 Arch Rail 800A
9 B27000 Spring Washer M3 20 M09254 Arch Rail 1000A
10 B17000 Nut M3 20 M09255 Arch Rail 1200A
11 B00006 Pan Head Screw M3×6 20 M09256 Arch Rail 1400A
12 B04425 Cap Screw M8×25 20 M09257 Arch Rail 1600A
13 B27400 Spring Washer M8 21 M09289 Arch Rear Hinge 600A
14 B17400 Nut M8 21 M09290 Arch Rear Hinge 800A
15 B04335 Cap Screw M6×35 21 M09291 Arch Rear Hinge 1000A
16 B04115 Cap Screw M4×15 21 M09292 Arch Rear Hinge 1200A
17 B33100 Flat Washer M4 21 M09299 Arch Rear Hinge 1400A
18 C03052 Left Guide 21 M09300 Arch Rear Hinge 1600A
19 * * 22 A00225 Arch Rail Base 600A
20 * * 22 A00227 Arch Rail Base 800A
21 * * 22 A00251 Arch Rail Base 1000A
22 * * 22 A00492 Arch Rail Base 1200A
23 B04110 Cap Screw M4×10 22 A00493 Arch Rail Base 1400A
24 B27300 Spring Washer M6 22 A00494 Arch Rail Base 1600A
Parts used for strap wider than 9mm
