GP 44
Spare Parts - 17 -
PART LIST

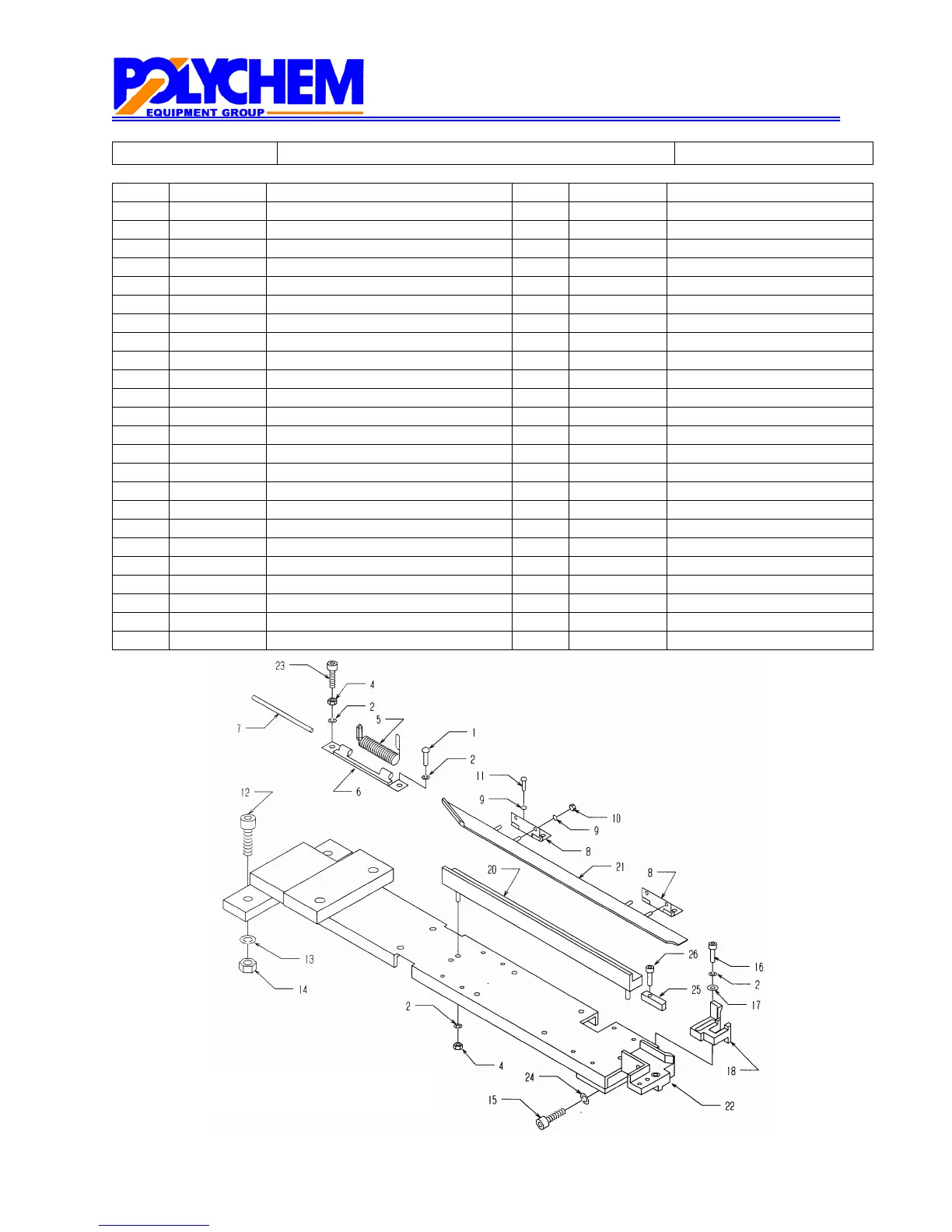

ARCH A FIG. A-9P-2
The different parts for strap width or the arch size.
Key Part-No Description Key Part-No Description
1 B00108 Pan Head Screw M4×8 25 M00226 Arch A Entrance Metal
2 B27100 Spring Washer M4 26 B04112 Cap Screw M4×12
3
4 B17100 Nut M4
5 A00299 Spring
6 P15059 Spring Base
7 L12023 Spring Pin 20 M09173 Arch Rail 600A
8 P39001 Hinge 2 20 M09174 Arch Rail 800A
9 B27000 Spring Washer M3 20 M09175 Arch Rail 1000A
10 B17000 Nut M3 20 M09178 Arch Rail 1200A
11 B00006 Pan Head Screw M3×6 20 M09250 Arch Rail 1400A
12 B04425 Cap Screw M8×25 20 M09251 Arch Rail 1600A
13 B27400 Spring Washer M8 21 M09289 Arch Rear Hinge 600A
14 B17400 Nut M8 21 M09290 Arch Rear Hinge 800A
15 B04335 Cap Screw M6×35 21 M09291 Arch Rear Hinge 1000A
16 B04115 Cap Screw M4×15 21 M09292 Arch Rear Hinge 1200A
17 B33100 Flat Washer M4 21 M09299 Arch Rear Hinge 1400A
18 C03052 Left Guide 21 M09300 Arch Rear Hinge 1600A
19 22 A00225 Arch Rail Base 600A
20 * * 22 A00227 Arch Rail Base 800A
21 * * 22 A00251 Arch Rail Base 1000A
22 * * 22 A00492 Arch Rail Base 1200A
23 B04110 Cap Screw M4×10 22 A00493 Arch Rail Base 1400A
24 B27300 Spring Washer M6 22 A00494 Arch Rail Base 1600A
Parts used for strap width 5mm8mm
