GP 44
Spare Parts - 18 -
PART LIST

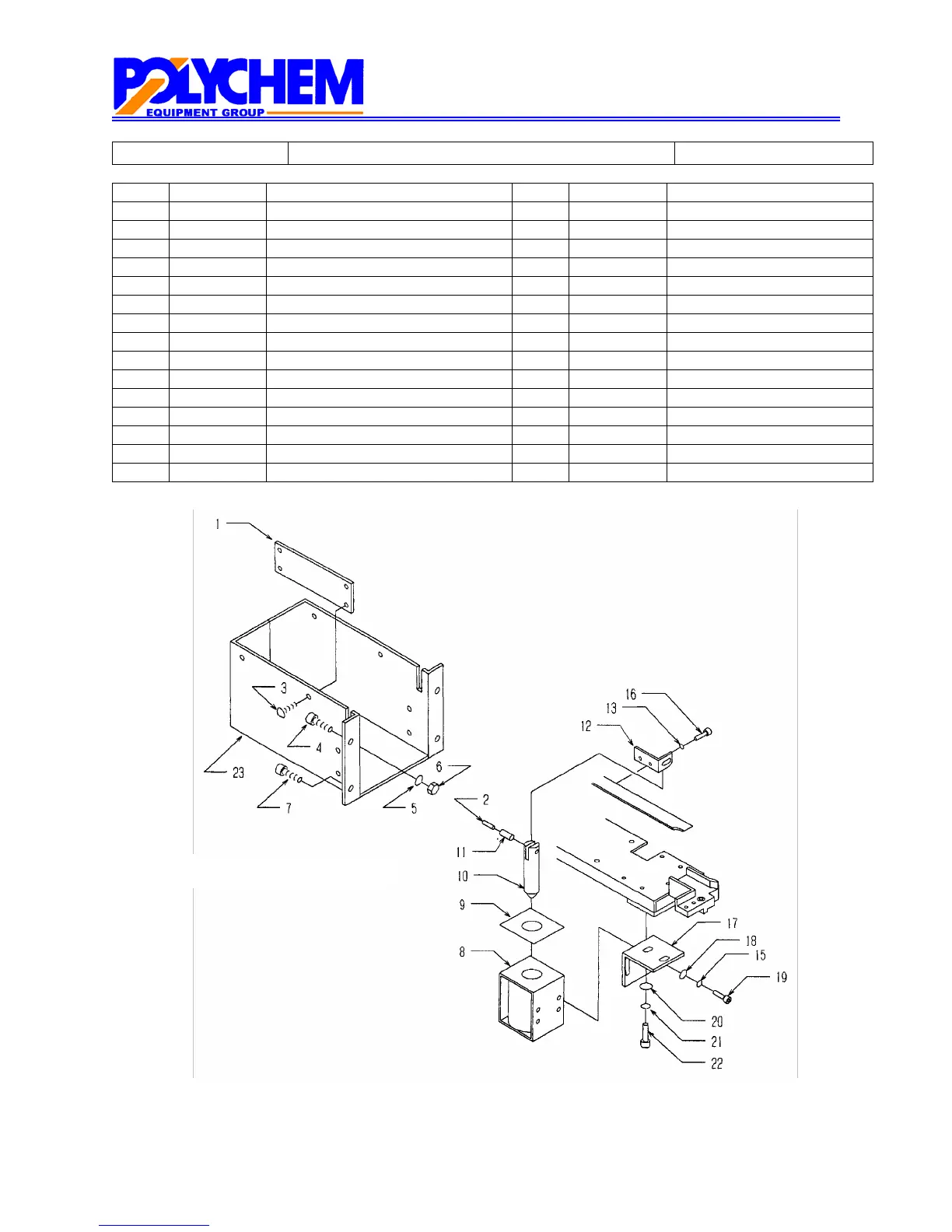

ARCH A FIG. A-9-017
Key Part-No Description Key Part-No Description
1 P03189 Arch Plate 16 B04006 Cap Screw M3×6
2 B99029 Roll Pin 3×12 17 P00111 Arch Solenoid Base A
3 B07208 Pan Head Screw M5×8 18 B26100 Flat Washer M4
4 B04315 Cap Screw M6×15 19 B04110 Cap Screw M4×10
5 B27300 Spring Washer M6 20 B26200 Flat Washer M5
6 B17300 Nut M6 21 B27200 Spring Washer M5
7 B04310 Cap Screw M6×10 22 B04215 Cap Screw M5×15
8 E30008 Solenoid MD181 DC48V
9 N01050 Solenoid Packing 23 P30238 Arch Cover 800A
10 L12081 Solenoid Plunger 23 P30257 Arch Cover 1000A
11 B31212 Roll Pin Φ5×12
12 P00103 Hinge Release Metal
13 B27000 Spring Washer M3
14
15 B27100 Spring Washer M4
Parts used for arch wider than 800mm
To Next Page
