GP 44
Spare Parts - 19 -
PART LIST

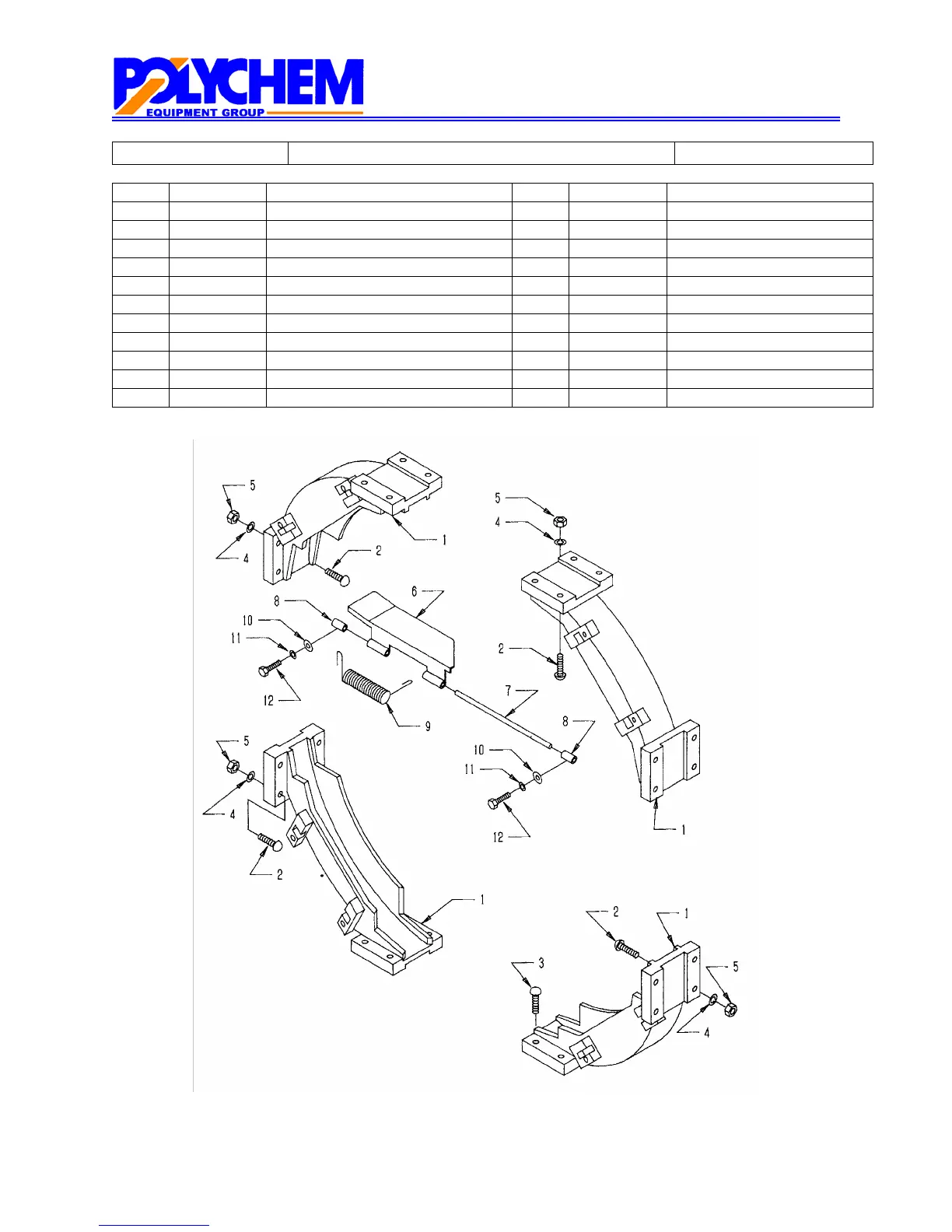

ARCH CORNER FIG. A-10P
Key Part-No Description Key Part-No Description
1 C12026 Arch Corner 15 12 B08108 Hexagonal Bolt M4×8
2 B00225 Pan Head Screw M5×25 13
3 B00218 Pan Head Screw M5×18 14
4 B27200 Spring Washer M5 15
5 B17200 Nut M5 16
6 P39008 Arch Corner Hinge 17
7 L12019 Hinge Support Pin 18
8 B31210 Roll Pin 5×10 19
9 S00008 Arch Corner Spring 20
10 P18042 Flat Washer 21
11 B27100 Spring Washer M4 22
