GP 44
Spare Parts - 23 -

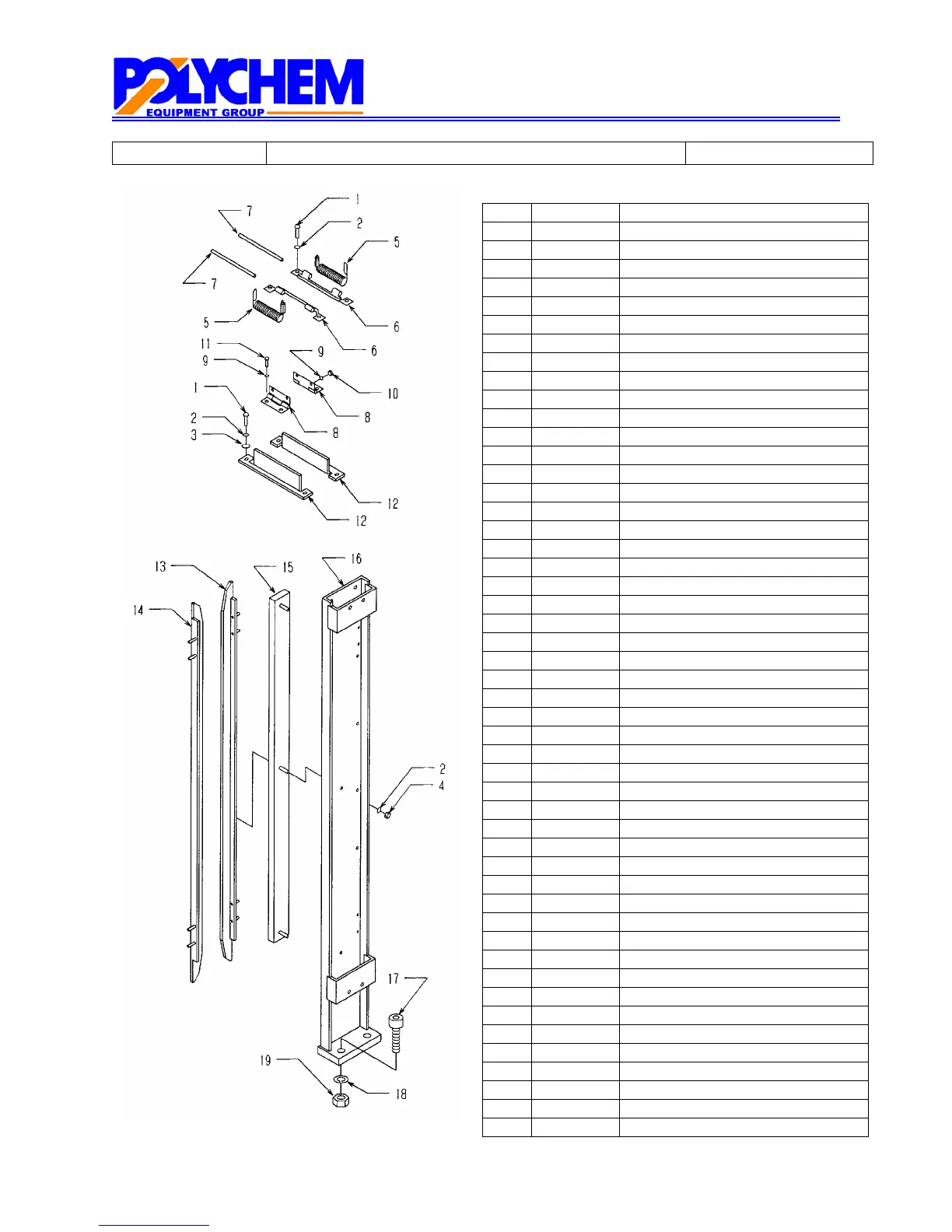

PART LIST
ARCH D FIG. A-13P
Key Part-No Description
1 B00108 Pan Head Screw M4×8
2 B27100 Spring Washer M4
3 B26100 Flat Washer M4
4 B17100 Nut M4
5 A00299 Spring
6 P15059 Spring Base
7 L12023 Spring Pin
8 P39001 Hinge 2
9 B27000 Spring Washer M3
10 B17000 Nut M3
11 B00006 Pan Head Screw M3×6
12 P00077 Stopper for Arch Hinge
* * *
* * *
* * *
* * *
17 B04530 Cap Screw M10×30
18 B27500 Spring Washer M10
19 B17500 Nut M10
* * *
* * *
* * *
13 M09306 Arch Rear Hinge 400BD
13 M09327 Arch Rear Hinge 500BD
13 M09307 Arch Rear Hinge 600BD
13 M09308 Arch Rear Hinge 800BD
13 M09309 Arch Rear Hinge 1000BD
13 M09310 Arch Rear Hinge 1200BD
* * *
14 M09301 Arch Front Hinge 400BD
14 M09326 Arch Front Hinge 500BD
14 M09302 Arch Front Hinge 600BD
14 M09303 Arch Front Hinge 800BD
14 M09304 Arch Front Hinge 1000BD
14 M09305 Arch Front Hinge 1200BD
* * *
15 M09258 Arch Rail 400BD
15 M09325 Arch Rail 500BD
15 M09259 Arch Rail 600BD
15 M09260 Arch Rail 800BD
15 M09261 Arch Rail 1000BD
15 M09262 Arch Rail 1200BD
* * *
16 A00228 Arch Rail Base 400D
16 A00277 Arch Rail Base 500D
16 A00226 Arch Rail Base 600D
16 A00261 Arch Rail Base 800D
16 A00262 Arch Rail Base 1000D
16 A00263 Arch Rail Base 1200D
To Next Page
