GP 44
Spare Parts - 24 -

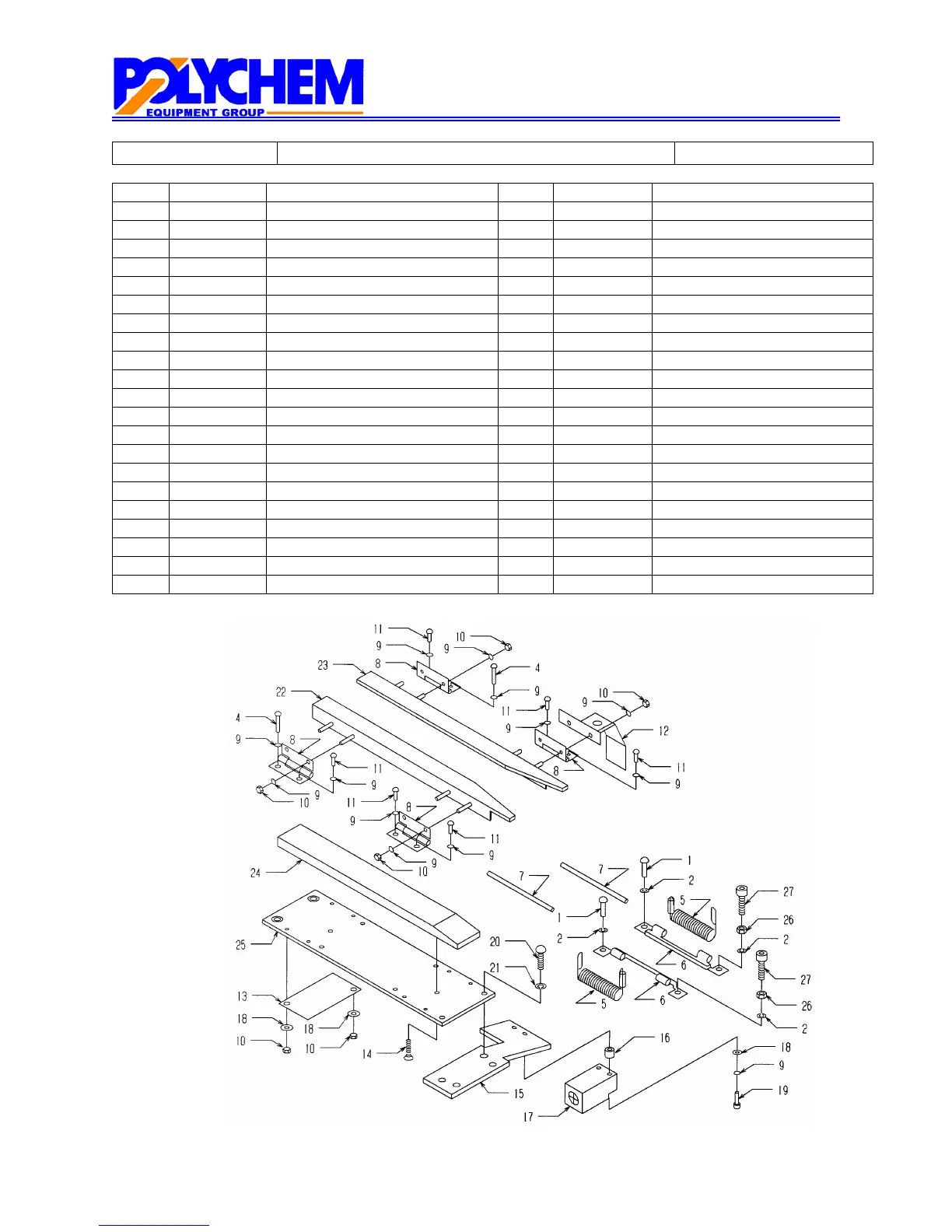

PART LIST
ARCH E FIG. A-14P-1-01
Key Part-No Description Key Part-No Description
1 B00108 Pan Head Screw M4×8 22 P00130 Arch Front Hinge 600E
2 B27100 Spring Washer M4 23 P00319 Arch Rear Hinge 600E
3 24 M09324 Arch Rail 600E
4 B00010 Pan Head Screw M3×10 25 P03169 Arch Rail Base 600E
5 A00299 Spring 26 B17100 Nut M4
6 P15059 Spring Base 27 B04110 Cap Screw M4×10
7 L12023 Spring Pin
8 P39001 Hinge 2
9 B27000 Spring Washer M3
10 B17000 Nut M3
11 B00006 Pan Head Screw M3×6
12 P06041 Select Detect Metal
13 N01064 Roller Stopper
14 B06106 Flat Head Screw M4×6
15 P21042 Select Switch Bracket
16 L15011 Wire Clip
17 E06000 Prox. Switch APS12A-4N
18 B26100 Flat Washer M4
19 B04030 Cap Screw M3×30
20 B00212 Pan Head Screw M5×12
21 B27200 Spring Washer M5
Parts used for strap wider than 12mm
To Next Page
