GP 44
Spare Parts - 32 -
PART LIST

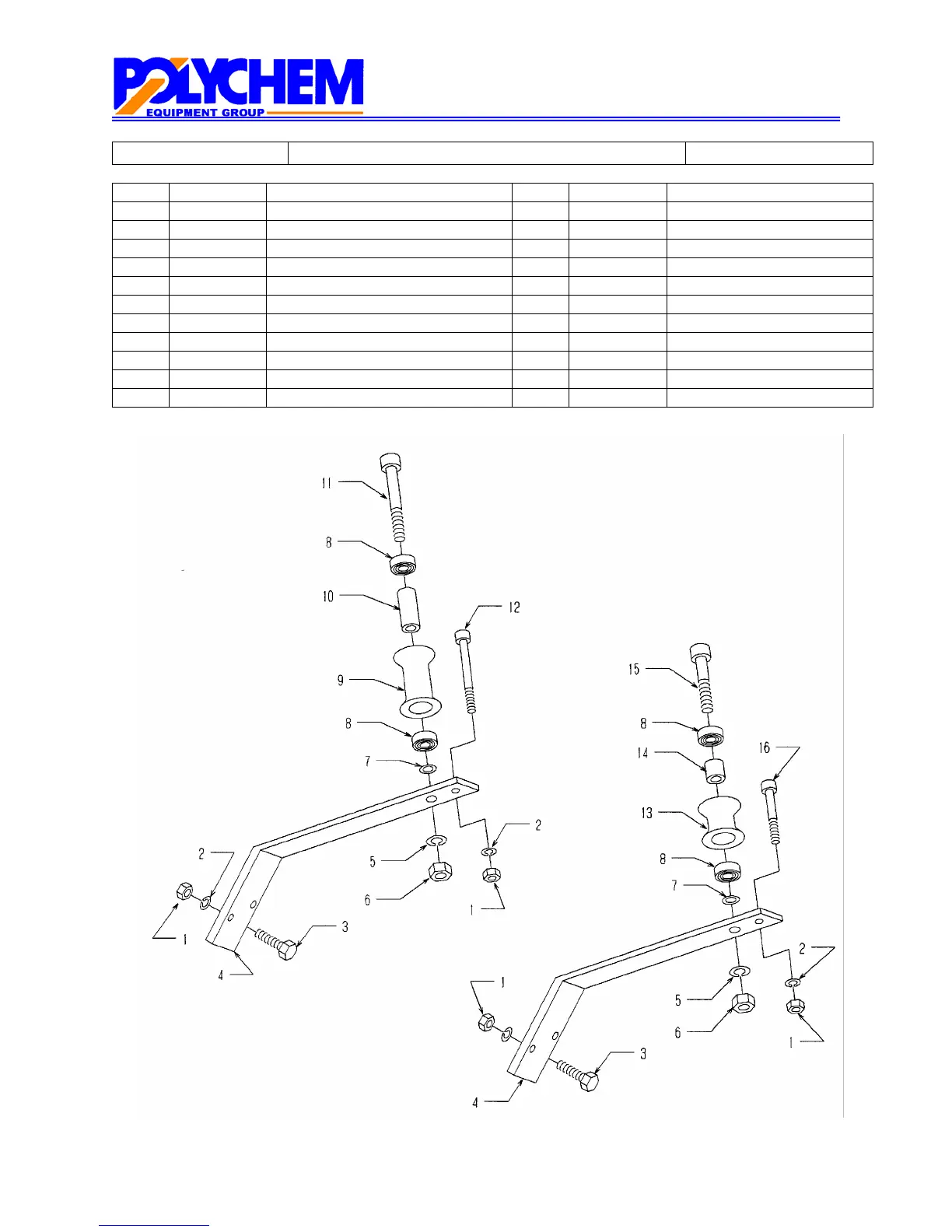

V ROLLER FIG. D-1P
Key Part-No Description Key Part-No Description
1 B17300 Nut M6 12 B04355 Cap Screw M6×55
2 B27300 Spring Washer M6 13 NEWS-249 V-Roller
3 B99038 Hexagon Bolt M6×25 14 NEWS-250 Spacer Collar
4 P21048 V-Roller Base 15 B04440 Cap Screw M8×40
5 B27400 Spring Washer M8 16 B04340 Cap Screw M6×40
6 B17400 Nut M8 17
7 P03114 Flat Washer 18
8 T04024 Ball Bearing 698LLU 19
9 L03052 V-Roller 20
10 L00052 Spacer Collar 21
11 B04455 Cap Screw M8×55 22
Parts used for strap width 5mm-8mm
Parts used for strap wider than 9mm
