GP 44
Spare Parts - 33 -

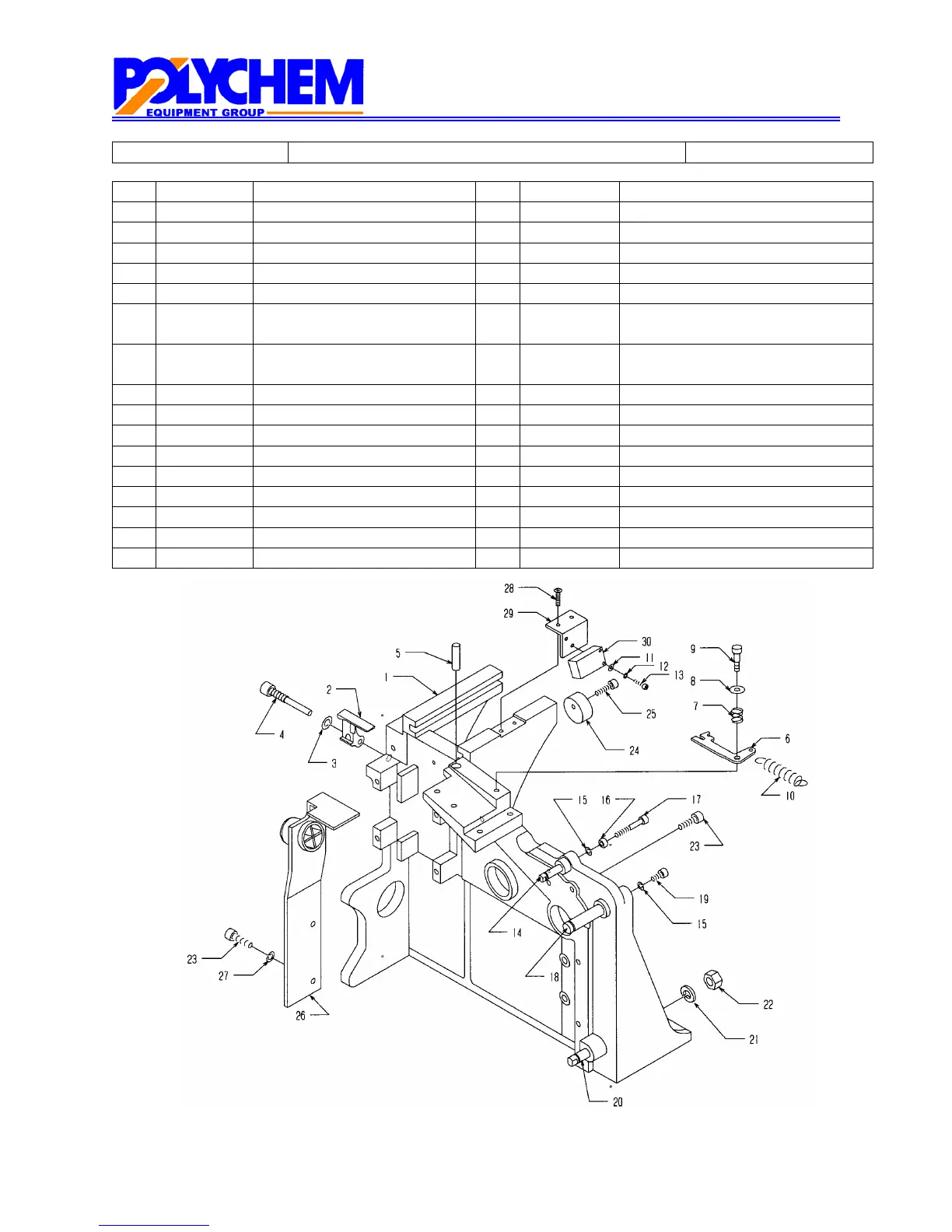

PART LIST HEAD ASSY. 1 FIG. H0-000-2-01
Key Part-No Description Key Part-No Description
1 C00049 Head 16 B17200 Nut M5
2 C03041 Strap Guide 17 B04230 Cap Screw M5×30
3 B27400 Spring Washer M8 18 L09000 Support Pin for Bracket
4 L21018 Strap Guide Support Bolt 19 B04210 Cap Screw M5×10
5 L24013 Guide Pin for Head 20 L09008 Support Pin for Tension Adjust
6 P21117 Stop Lever for Floating Strap
(512mm Strap)
6 P21108 Stop Lever for Floating Strap
(1415.5mm Strap)
21 B27500 Spring Washer M10
7 S06025 Spring 22 B21500 Nut M10
8 B26300 Flat Washer M6 23 B04315 Cap Screw M6×15
9 B16310 Shoulder Bolt 6×10 24 N01073 Silencer Rubber
10 S03000 Spring 25 B04220 Cap Screw M5×20
11 26 OP-468 Table Supporting Bracket
12 27 B27300 Spring Washer M6
13 28 B02106 Flat Head Screw M4×6
14 L09005 Feed Arm Pin 29 P00124 Sensor Bracket
15 B27200 Spring Washer M5 30 E06051 Photo Cell SA1B-DP1
To Next Page
