GP 44
Spare Parts - 39 -
PART LIST

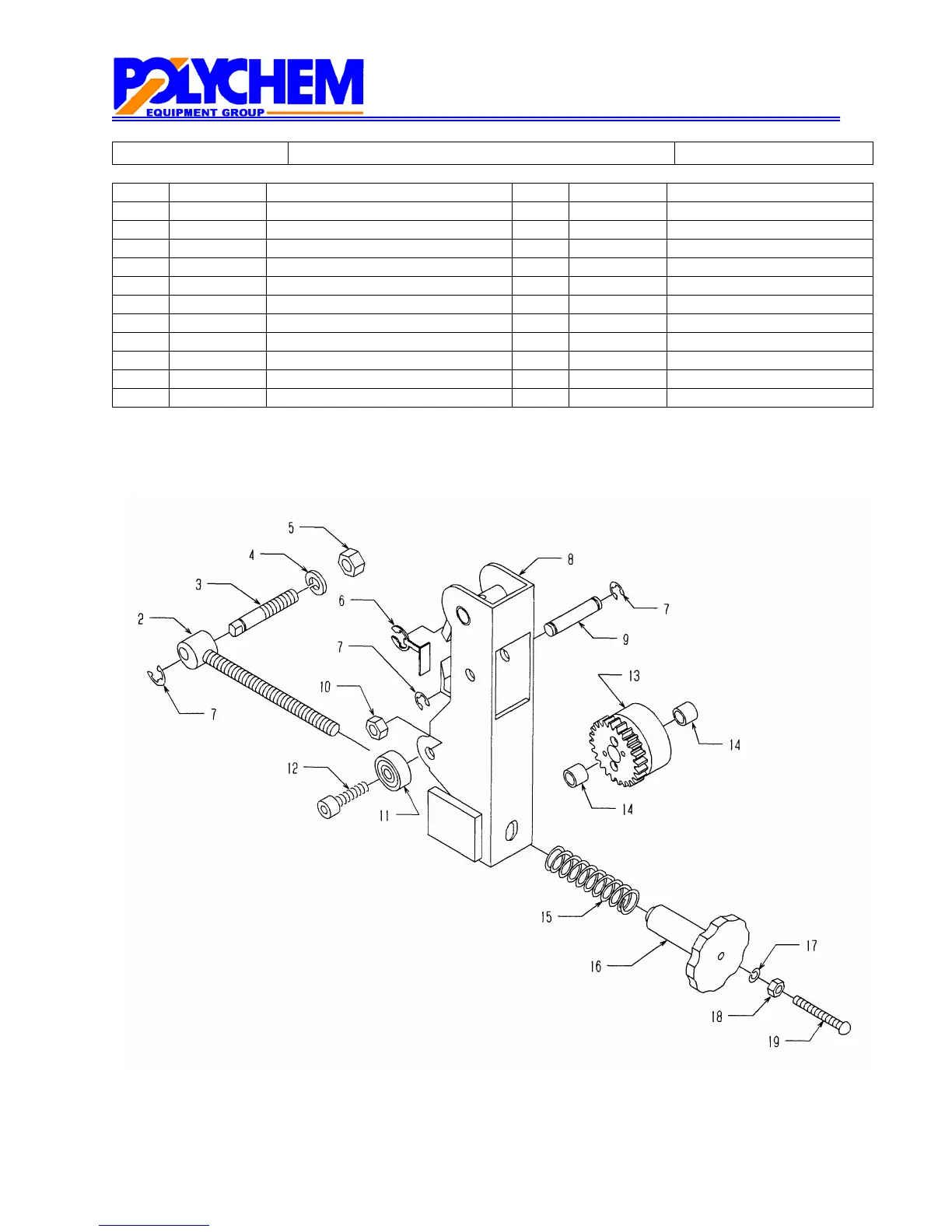

TENSION ASSY. FIG. H4
Key Part-No Description Key Part-No Description
1 12 B04420 Cap Screw M8×20
2 A00249 Tension Adjust Bolt 13 A00287 Main Shaft Drive Roller
3 L09008 Support Pin for Adjust Bolt 14 T05000 Needle Bearing TLA1010
4 B27500 Spring Washer M10 15 S06012 Tension Adjust Spring
5 B21500 Nut M10 16 A00250 Tension Adjust Nut
6 P00009 E-ring (L Type) 17 B27300 Spring Washer M6
7 B28008 E-ring E8 18 B17300 Nut M6
8 A00484 Bracket With Guide 19 L21019 Stopper Bolt
9 L12003 Drive Shaft 20
10 B21400 Nut M8 21
11 T04032 Ball Bearing 638LLU 22
To Next Page
