GP 44
Spare Parts - 40 -
PART LIST

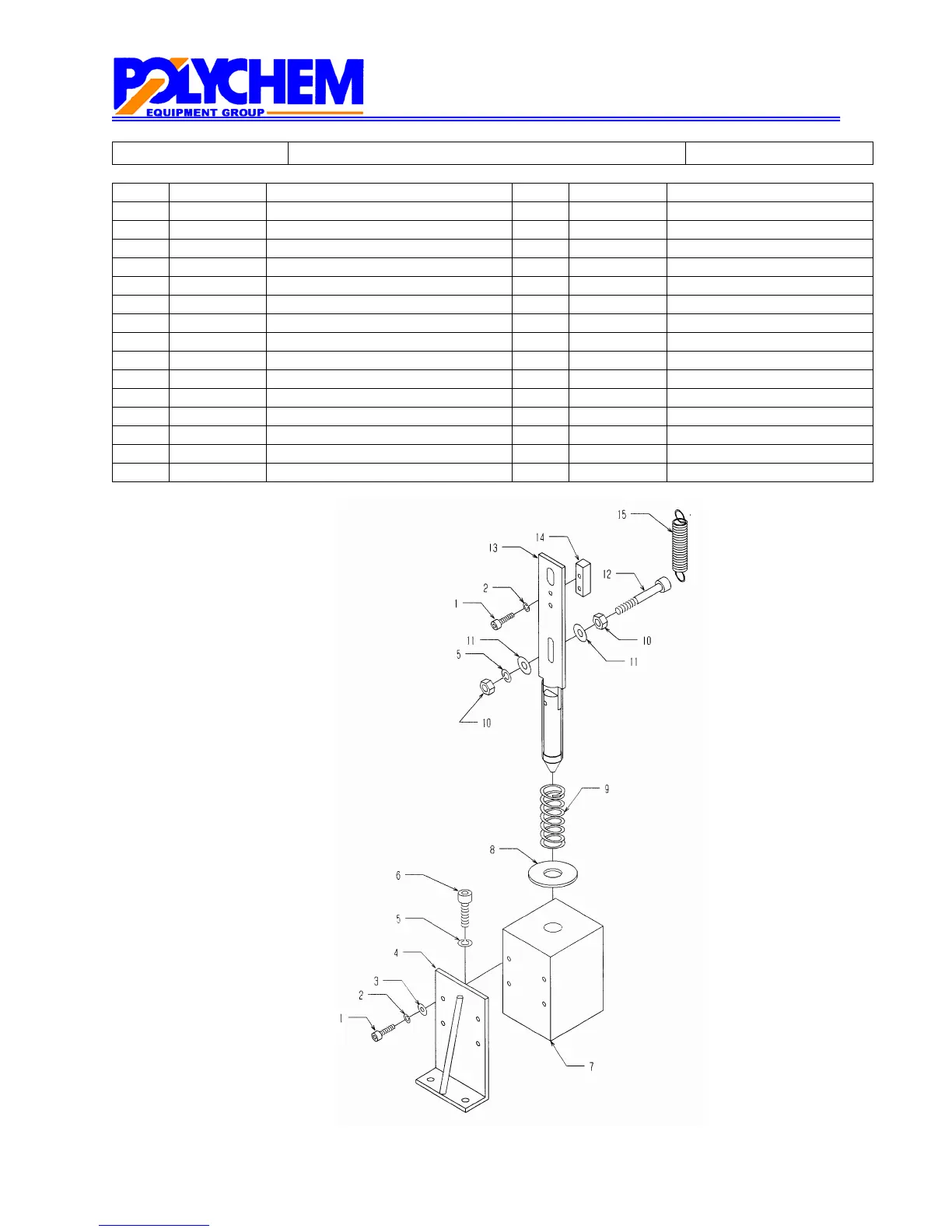

FEED TENSION UNIT FIG. H6-002
The different parts for strap size and the arch size.
Key Part-No Description Key Part-No Description
1 B04110 Cap Screw M4×10 15 S03065 Spring 5mm Strap
2 B27100 Spring Washer M4 15 S03060 Spring 6-15.5mm Strap
3 B26100 Flat Washer M4
4 A00610 Feed Solenoid Bracket
5 B27300 Spring Washer M6
6 B04310 Cap Screw M6×10
7 E30016 Solenoid MD292 DC48V
8 N01100 Solenoid Packing
9 S06022 Spring
10 B17300 Nut M6
11 B26300 Flat Washer M6
12 B04330 Cap Screw M6×30
13 A00621 Plunger for Strap Feed
14 M00067 Solenoid Rod Metal
15 * *
To Next Page
