GP 44
Spare Parts - 41 -
PART LIST

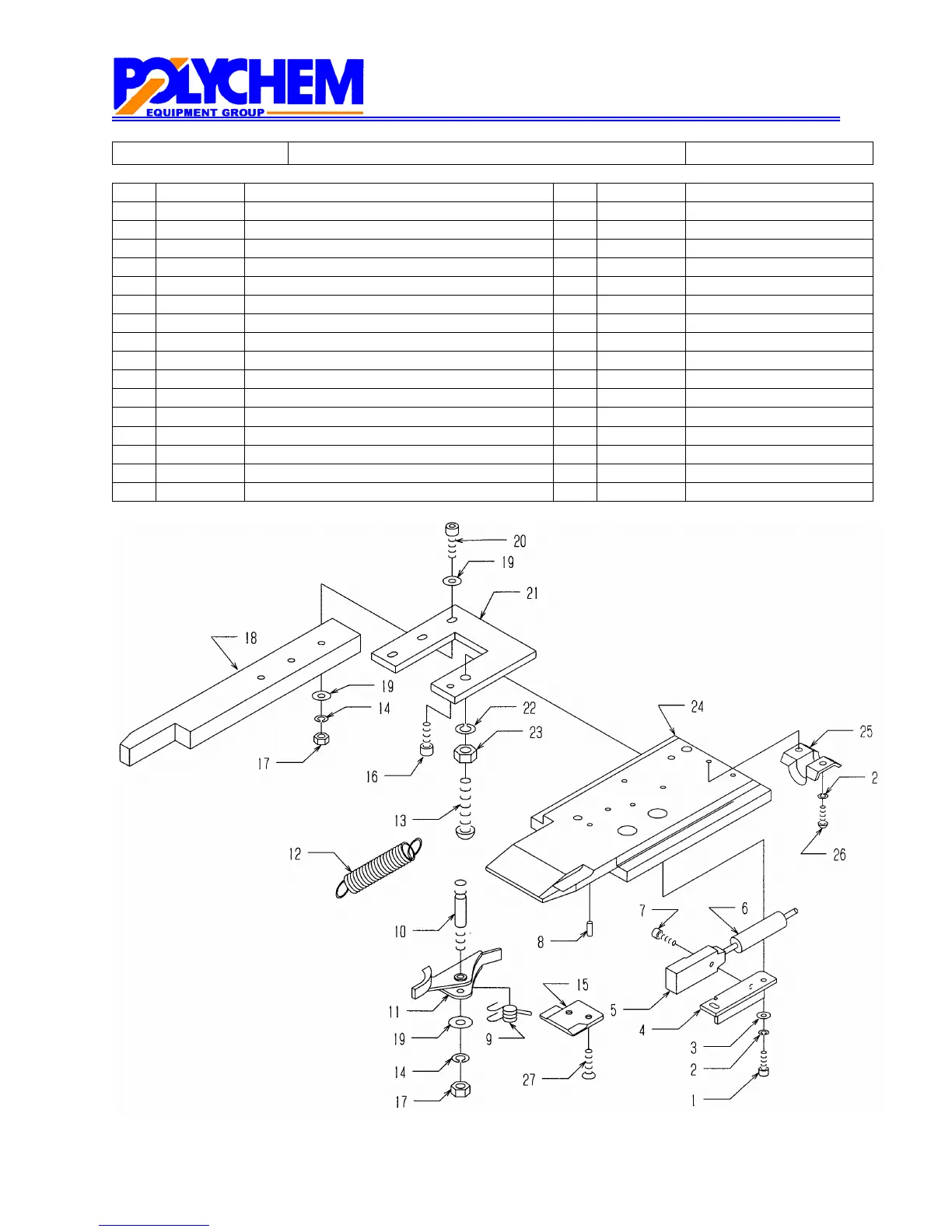

SLIDING PLATE UNIT FIG. H7-018-02
Key Part-No Description Key Part-No Description
1 B04010 Cap Screw M3×10 16 B04108 Cap Screw M4×8
2 B27000 Spring Washer M3 17 B17100 Nut M4
3 B26000 Flat Washer M3 18 N01060 Hinge Rubber Stopper
4 P00115 Metal for M Switch GL-12F 19 B26100 Flat Washer M4
5 E06025 Proximity Switch M 20 B04120 Cap Screw M4×20
6 E00033 Rubber Cover 21 P03046 Hinge Plate
7 B04008 Cap Screw M3×8 22 B27300 Spring Washer M6
8 B31020 Roll Pin φ3×20 23 B17300 Nut M6
9 S00017 Spring for M Switch (5mm Strap) 24 M00443 Sliding Plate
9 S00012 Spring for M Switch (615.5mm Strap) 25 P36001 Fixing Metal for Wire
10 L09056 Pin for Limit Lever 26 B00008 Pan Head Screw M3×8
11 C03080 Limit Switch Lever 27 B02008 Flat Head Screw M3×8
12 S03008 Return Spring 28
13 B00345 Pan Head Screw M6×45 29
14 B27100 Spring Washer M4 30
15 P03523 Plate 31
To Next Page
