GP 44
Spare Parts - 44 -
PART LIST

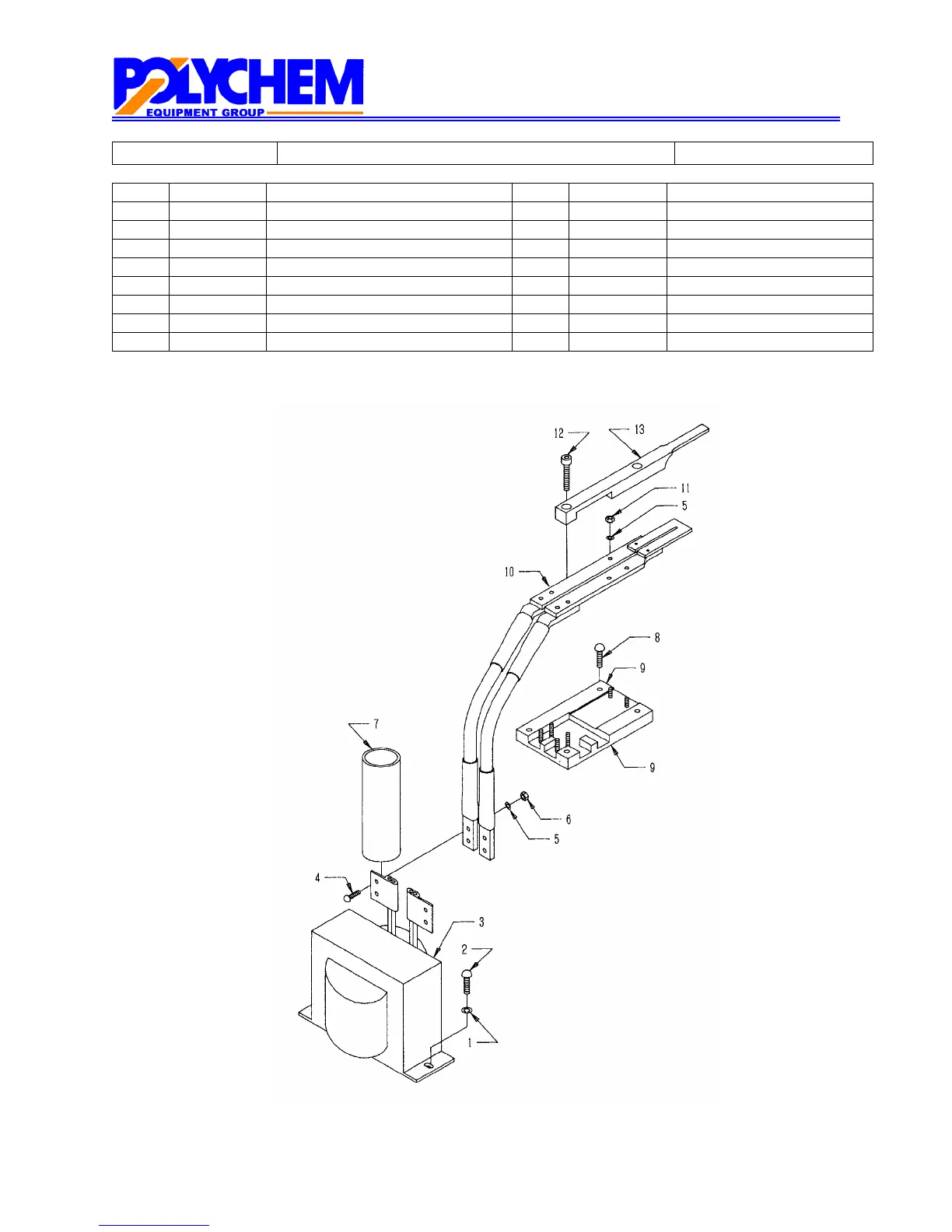

HEATER ASSY. FIG. HEAD-9P
Key Part-No Description Key Part-No Description
1 B27100 Spring Washer M4 9 A00298 Insulating Block Assy.
2 B00108 Pan Head Screw M4×8 10 A00294 Heater
3 E24026 Heater Transformer LA-76HC 11 B21000 Nut M3
4 B00012 Pan Head Screw M3×12 12 B04120 Cap Screw M4×20
5 B27000 Spring Washer M3 13 M00109 Loop Ejector bar
6 B17000 Nut M3 14
7 E00038 Tube 15
8 B00112 Pan Head Screw M4×12 16
