PART LIST

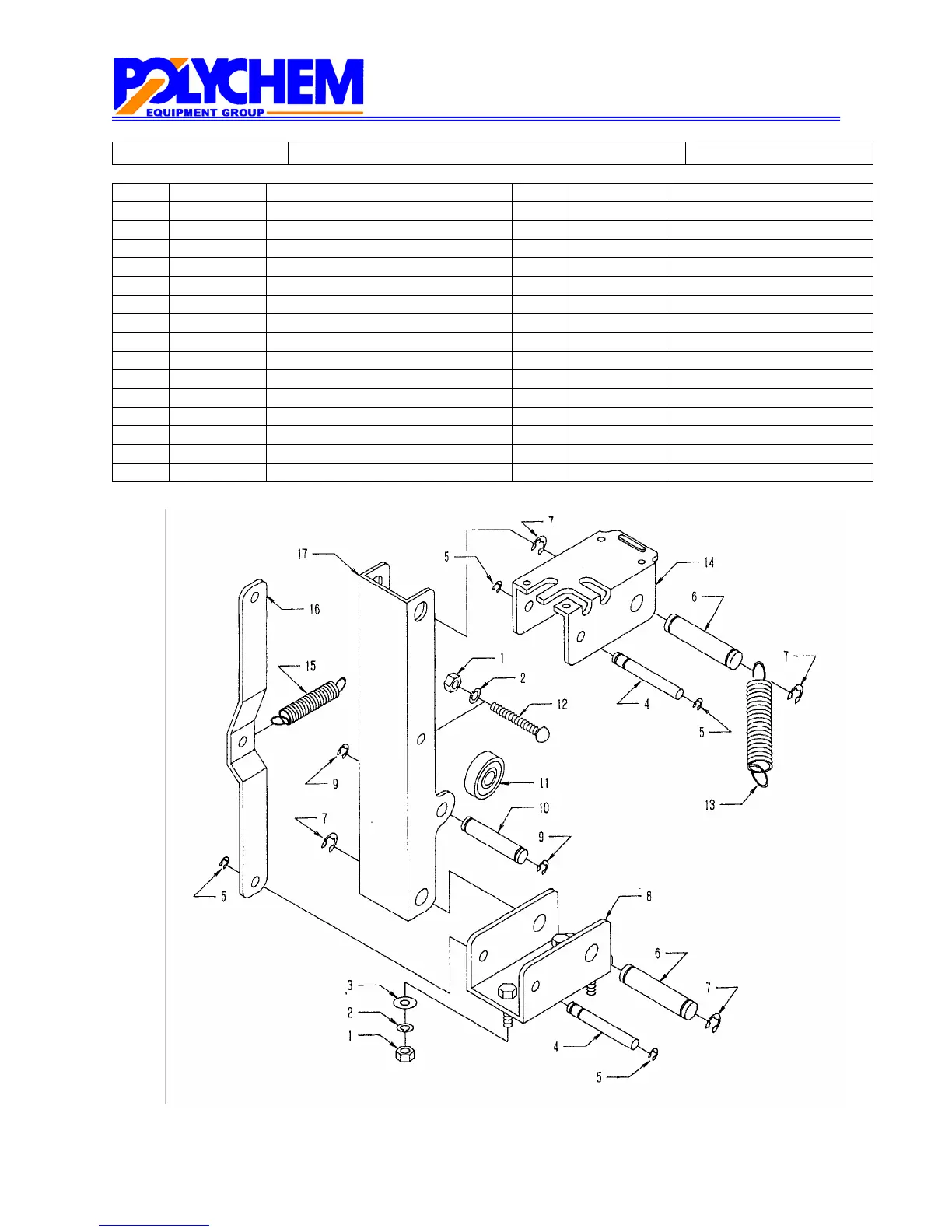

HEATER ROD ASSY. FIG. HEAD-10
Key Part-No Description Key Part-No Description
1 B17300 Nut M6 16 P36000 Heater Rod B
2 B27300 Spring Washer M6 17 A00128 Heater Rod A
3 B26300 Flat Washer M6 18
4 L12006 Heater Support Pin 19
5 B28005 E-ring E5 20
6 L12005 Heater Pivot Pin 21
7 B28008 E-ring E8 22
8 A00099 Heater Rod Terminal 23
9 B28006 E-ring E6 24
10 L12015 Heater Rod Bearing Pin 25
11 T04033 Ball Bearing 628LLB 26
12 B00340 Pan Head Screw M6×40 27
13 S03003 Heater Spring B 28
14 P06005 Heater Base 29
15 S03002 Heater Spring A 30
To Next Page
