GP 44

Spare Parts - 48 -

PART LIST

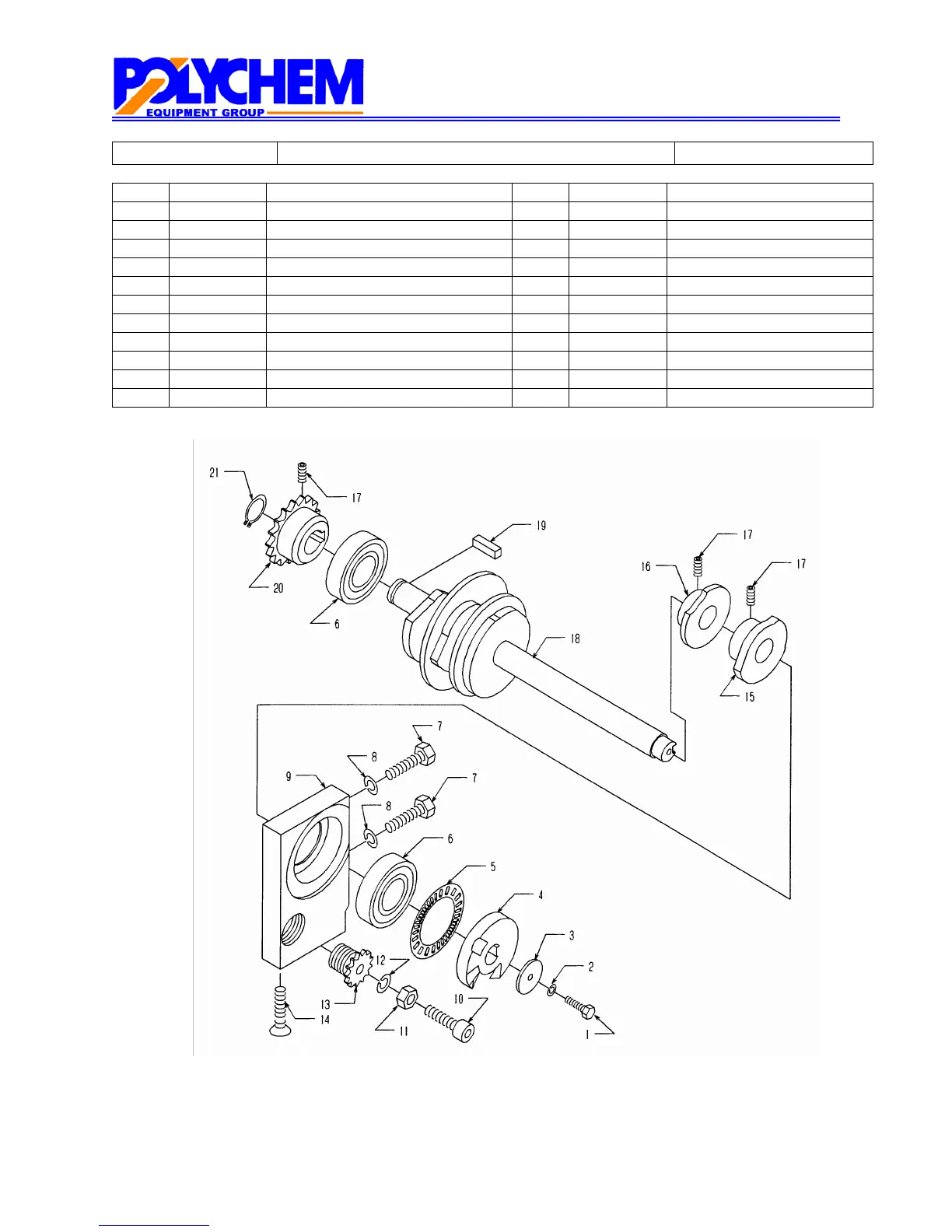

CAM SHAFT FIG. HEAD-12P-1

Key Part-No Description Key Part-No Description

1 B99031 Hexagon Bolt M5×10 SCM 12 B27400 Spring Washer M8

2 B27200 Spring Washer M5 13 T02011 Bracket Stopper

3 P18001 Washer 14 B06415 Flat Cap Screw M8×15

4 P98015 Bracket Cam 15 L98015 Strap Feed Cam

5 T05011 Thrust Bearing NTB40603 16 C00060 B Switch Cam

6 T04023 Ball Bearing 6004LLU 17 B10308 Set Bolt M6×8

7 B08425 Hexagon Bolt M8×25 18 A00302 Cam Shaft

8 B27400 Spring Washer M8 19 M06005 Key 7×7×20

9 M00040 Cam Shaft Bearing Block 20 T02034 Sprocket RS35T15

10 B04420 Cap Screw M8×20 21 B29020 C-ring S-20

11 B17400 Nut M8 22 * *
