GP 44
Spare Parts - 49 -
PART LIST

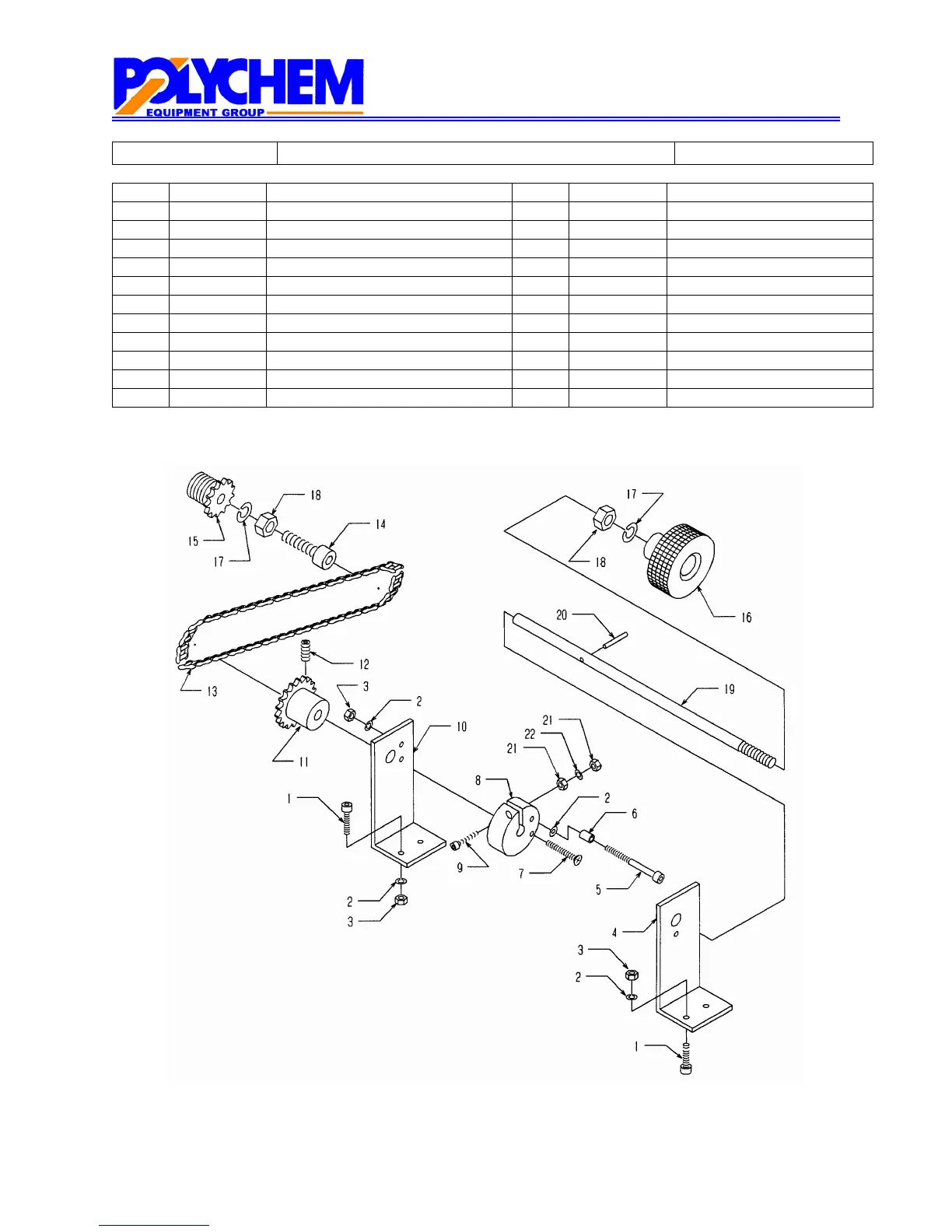

TENSION CONTROL ASSY. FIG. HEAD-13P
Key Part-No Description Key Part-No Description
1 B04115 Cap Screw M4×15 12 B10308 Set Bolt M6×8
2 B27100 Spring Washer M4 13 T00078 Chain RS25 L64
3 B17100 Nut M4 14 B04420 Cap Screw M8×20
4 CN-086 Right Bracket 15 T02011 Sprocket RS25-T13
5 B04140 Cap Screw M4×40 16 N00028 Tension Adjust Nut
6 L15011 Stopper Tube 17 B27400 Spring Washer M8
7 B02125 Flat Head Screw M4×25 18 B17400 Nut M8
8 N01051 Friction Rubber 19 L09035 Tension Adjust Shaft
9 B04025 Cap Screw M3×25 20 B31018 Roll Pin 3×18
10 P00119 Left Bracket 21 B27000 Spring Washer M3
11 T02016 Sprocket RS25-T18 22 B17000 Nut M3
To Next Page
