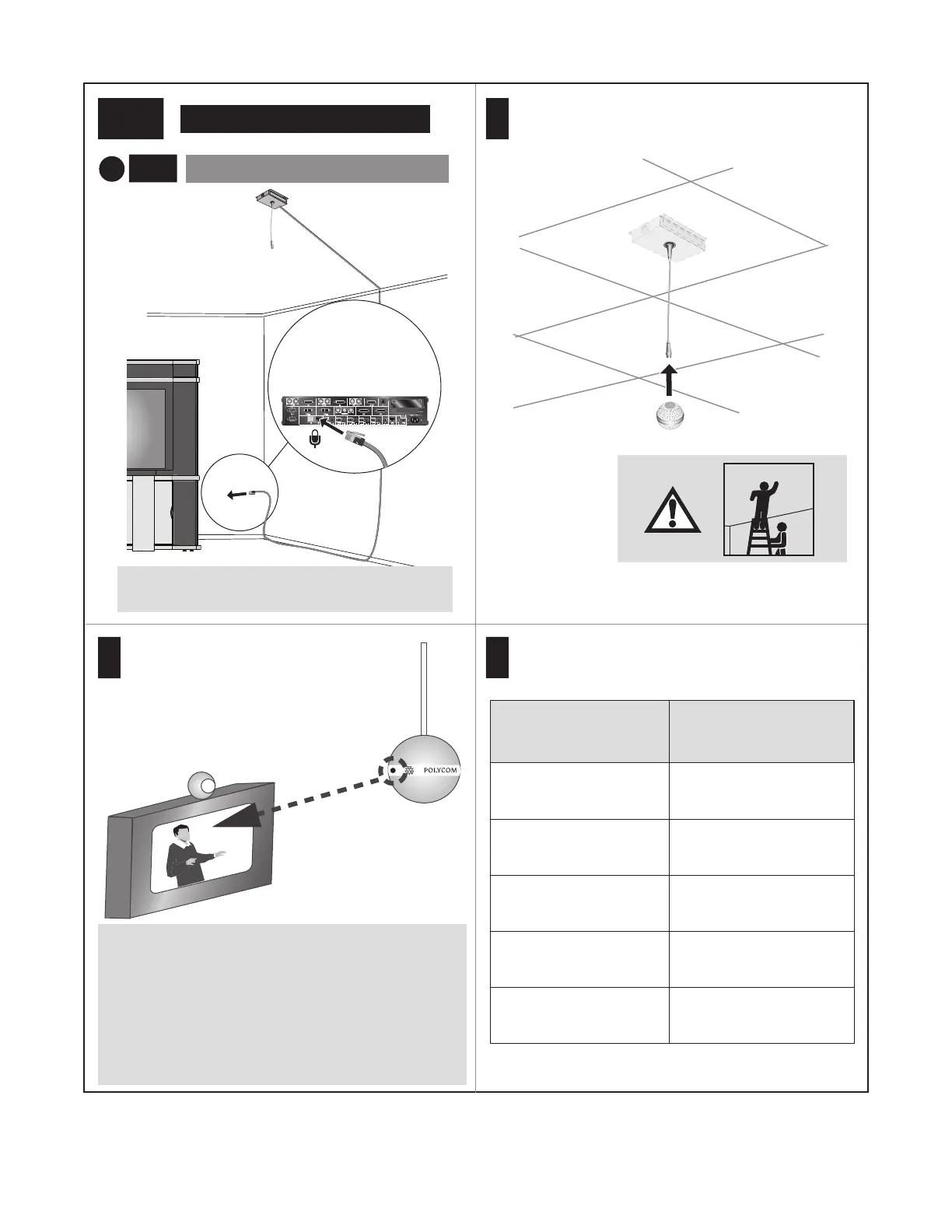

Setting up the Polycom HDX Ceiling Microphone Array Series
6
For Polycom TPX HD 306M Systems
b
(cont.)
5 (cont.)
For ceilings that are not suspended
8
For Polycom HDX Systems and for SoundStructure C-Series
Systems that are being used with a video conferencing
system: You must point the dot (located on the band around
the middle of the microphone ball) towards the main display.
For Polycom SoundStructure C-Series Systems that are not
being used with a video conferencing system and for TPX HD
306M Systems: You must point the dot (located on the band
around the middle of the microphone ball) towards the front
of the room.
7
These systems...
Support up to this
many Ceiling
Polycom HDX 9000
Series
Polycom HDX 8000
Series
Polycom HDX 4000
Series
Polycom SoundStructure
C12 and C16
Four
Three
Three
Four
Polycom SoundStructure
C8
Two
Primary (center)
codec in credenza
or patch panel on side
of credenza
Microphone Arrays...
For more information, refer to the Polycom
TPX HD 306M Installation Guide.
