by pressing “▼” or “▲”, the measuring display ranges shall be 110.0-260.0V
and 40.00-60.00Hz respectively.
A
○
5E APower Factor and Overload Indication

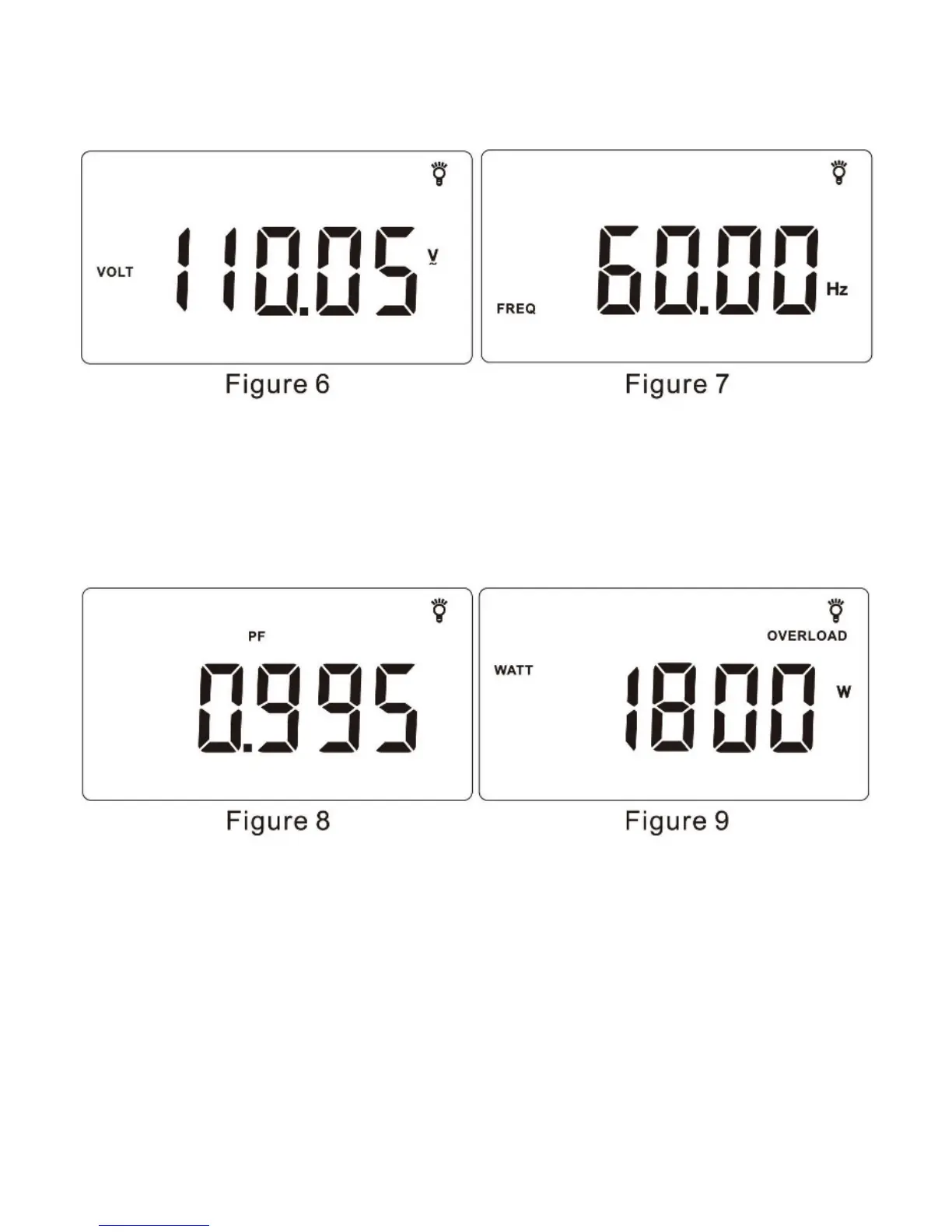

Switch to Power Factor (PF) monitoring interface (as shown in Figure 8) by
pressing “
▼” or “▲”, the measuring display ranges shall be 0.001-1.000.
Overload indication setting: After long pressing ”SET” on the Watts display
interface for 2 seconds, the thousand-digit on LCD will flicker, then enter
overload indication limit setting. Press “
▼” or “▲” to adjust value and press
“OK” after completing thousand-digit adjustment to set hundred-digit, and so
on. Remember press “OK” in the end to exit the setting mode.
