6-71

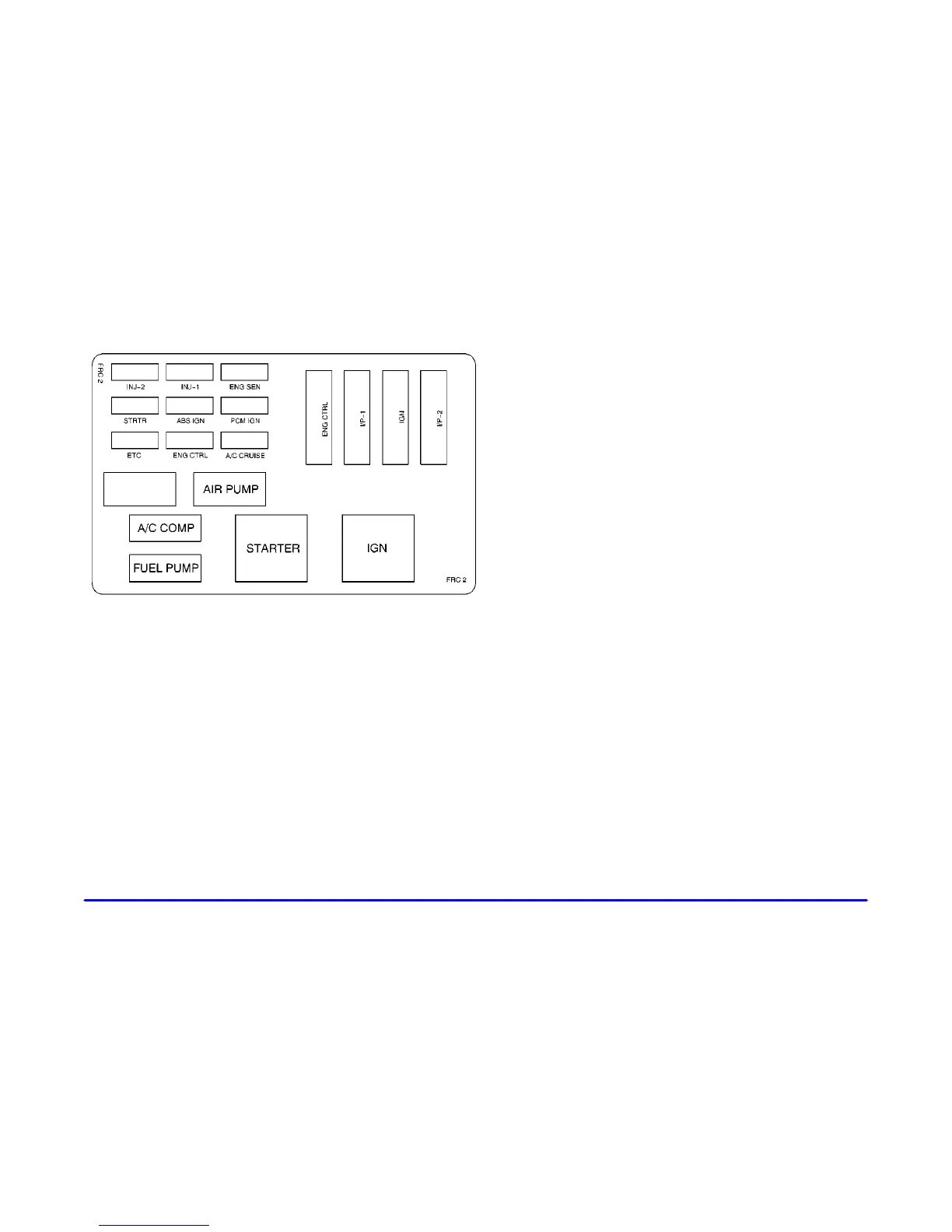

Fuse and Relay Center 2
Fuse Usage
INJ
-2 Fuel Injectors (Not used for V6)
(LH Injectors for V8 and
Ignition Module)
INJ
-1 Fuel Injectors (All for V6)
(RH Injectors for V8 and
Ignition Module)
Fuse Usage
ENG SEN Mass Air Flow Sensor, Heated
Oxygen Sensor, Skip Shift Solenoid
(V8 Only), Reverse Lockout
Solenoid, Brake Switch
STRTR Powertrain Control Module (PCM),
Clutch Pedal Switch
ABS IGN Anti
-Lock Brake System Module
PCM IGN Powertrain Control Module (PCM)
ETC Electronic Throttle Control (V6 Only)
ENG CTRL Ignition Module (V6 Only),
Automatic Transmission,
Charcoal Canister Purge Solenoid
A/C CRUISE Air Conditioning Compressor
Relay, Cruise Control Switches
and Module
ENG CTRL Engine Controls, Fuel Pump,
Powertrain Control Module (PCM),
A.I.R. Pump and Cooling Fans
To Next Page
