7.
STEP 1
Before installation, check the
following:
The cell must be installed
in the return line to the
pool.
If any additional
equipment is used i.e.
pool heaters etc. the cell
must be installed as the
last unit in the return line.
The cell must be installed
horizontally with the blue
electrode holder (6) facing
upward
The ninety-degree elbows
must be fitted facing
downward in both the
inlet (10) and outlet (10)
of the chlorinator. These
elbows are included in the
chlorinator kit.
* IMPORTANT SAFETY
FEATURE - The elbows
function as a gas trap
Installed Poolmaid
Chlorinator
Note: It is advisable to mount the
cell higher than the water level
of the pool. Flooding may result
when opening a cell mounted
below the water level.
If the pump is more than 1.5Hp
1.2Kw, we recommend fitting the
cell in a by-pass and not in the
a.
b.
c.
d.
Multi-
port
valve
Pump
Cell
cover
Elbow
Return
to pool
Return

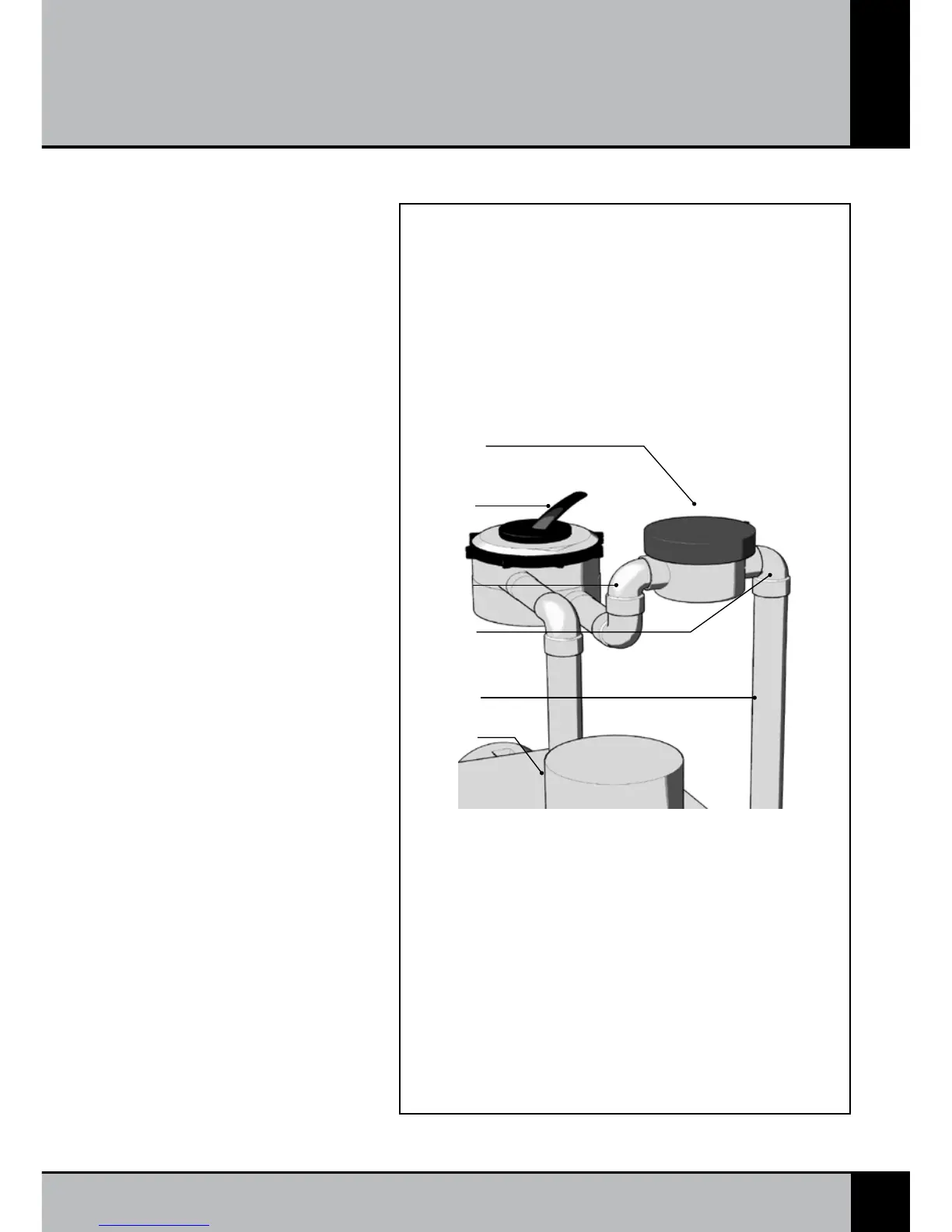

Suggested positioning of the cell
To Next Page
