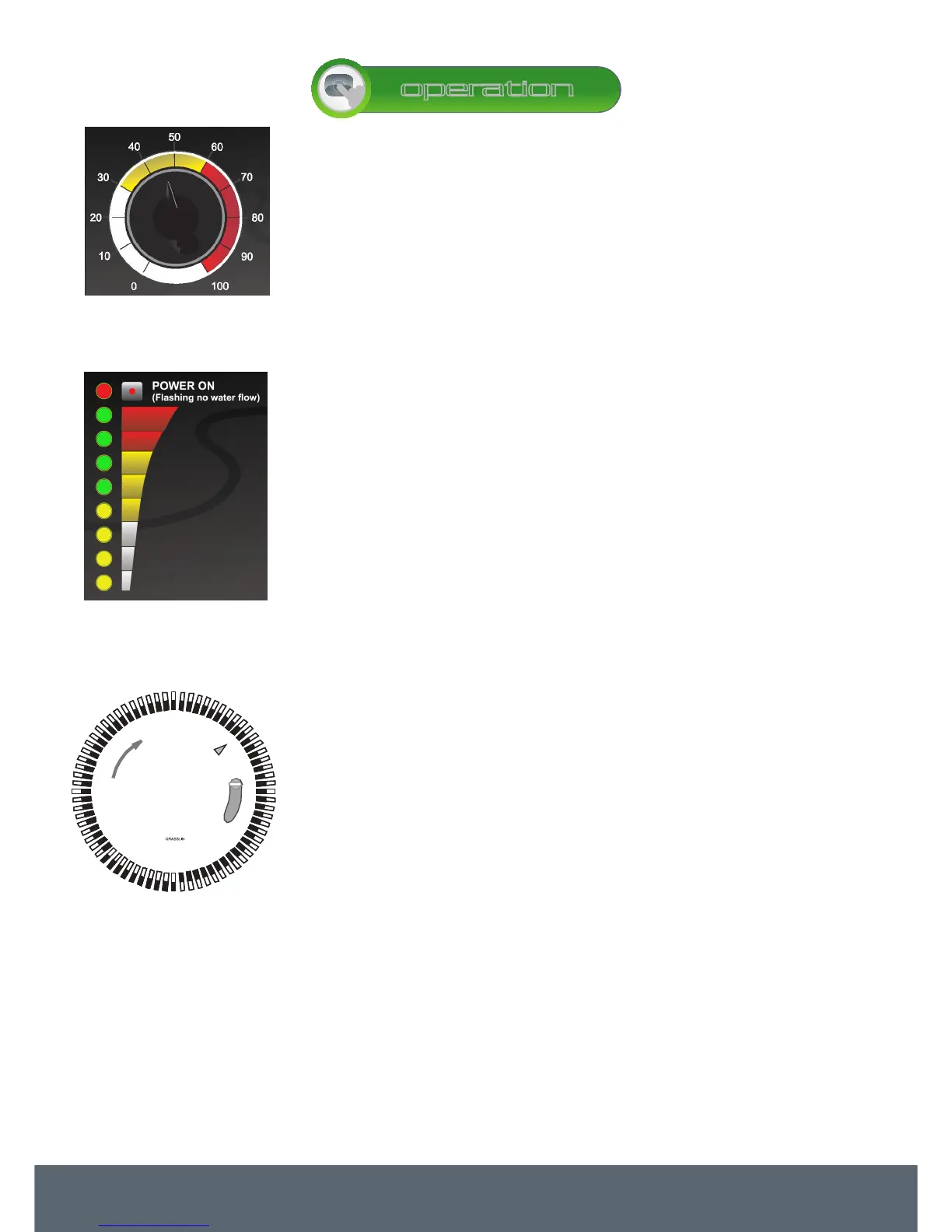

Chlorine Control
Because your
S3500
Chlorinato r has been designed to operate over
a range of salt
levels, water
temperature, running time, etc, a Chlorine Control has been provided to compensate for these
variations. When first starting the unit and where maximum chlorine production is needed the
control knob should be rotated fully clockwise so the LED's are indicating maximum on the chlorine
output scale or as high as prevailing conditions will allow. To operate the filter pump only without the
cell, simply turn the Chlorine Control knob fully anti-clockwise.
LED Chlorine Output Monitor
The LED Chlorine Output Monitor has been provided to allow monitoring of the chlorine output
being produced by the cell.
Power/ No Flow
The top light is illuminated when power is applied to the Power Pack. It will also flash when
there is a problem with the water detection circuit (i.e. an empty cell).
Timer
For Manual Operation
Move the slide switch on the face of the timer to the position marked "ON". The pump and chlorinator
should now be operating (if the chlorine control is correctly adjusted)
To turn the pump and chlorinator off, move the slide switch to the "OFF" position.
For Automatic Operation
Move the slide switch on the face of the timer to the position marked "AUTO". The pump and
chlorinator should now operate when the next ON cycle is detected by the time switch (if the chlorine
control is correctly adjusted)
To manually turn the pump and chlorinator off, move the slide switch to the "OFF" position.
Setting the START and STOP Times
To Set the Clock Function
Rotate the dial in a clockwise direction only to align the present time of day with the indicator arrow on the
right hand side of the face of the timer, just above the slide switch
Slide the trip pins outwards on the timer face for morning and late afternoon operation as illustrated. We
recomend an initial operating period of 6 - 8 hours in Summer and 2 - 4 hours in Winter. This will vary
depending on the relitive size of your pool, filter and chlorinator
FOR FURTHER INFORMATION PLEASE REFER TO: www.surechlor.com.au
