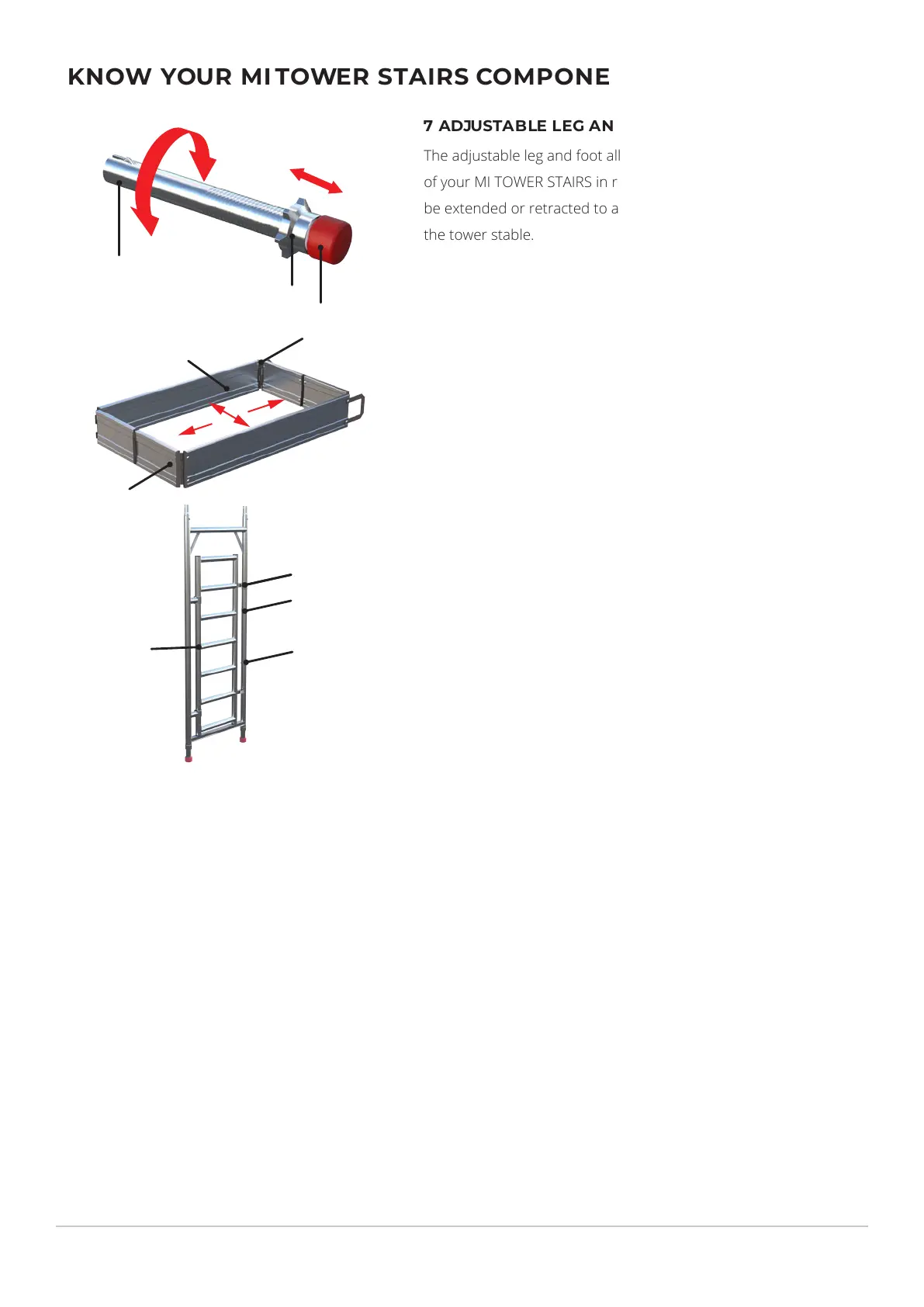

KNOW YO UR MI TOWER STAIRS COMPONENTS
Page 5
7 ADJUSTABLE LEG AND FOOT
The adjustable leg and foot allows for accurate positioning
of your MI TOWER STAIRS in relation to your workplace. The leg can
be extended or retracted to allow for levelling while the foot keeps
the tower stable.
Adjustment Collar
Extend
Retract
Foot
OFF
ON
Engagement
Spring
INSPECTION, CARE & MAINTENANCE
Keep all components clean and free from contaminants. If any part becomes contaminated with paint, acid, oils or
similar products the tower must not be used until the effected components have been cleaned and re-inspected.
Particular attention should be paid to welded joints and any moving parts, such as brace claws, adjustable leg
adjustment collars and stabiliser clamps. Ensure all safety decals are present, intact and readable.
A detailed Inspection Guide is available. To obtain a copy of this guide, please contact POP UP Products.
Threads, hinges and brace claws may be lubricated with light oil to ensure correct functionality is maintained. Ensure oil
does not contaminate climbing or walking surfaces.
All components should be stored in a dry location where they will be protected from adverse weather conditions. When
storing or transporting, keep frames upright and platforms flat. Do not stack excessively to avoid stress damage.
Please contact POP products for further details on maintenance and repair of your MI TOWER STAIRS components.
The toeboard, when placed on the working platform, prevents
materials and tools from falling from the tower. It consists of
folding side and end sections which are articulated via a series of
hinges.
It can be opened and fitted over the platform edges by first
unfolding the ends and sides as shown in the image to the left.
Once unfolded, place all four lower inside edges over the outer
edges of the platform.
8 TOEBOARD
Hinge
Side
End
9 WALK-THROUGH FRAME
The walk-through gate frame includes a gate/ladder which is used to
access the upper levels of the Mi TOWER STAIRS and once unlocked
and opened, allows access into and through the base of the MI
TOWER STAIRS. To open the gate/ladder remove the clip and lift the
gate/ladder upwards. It can now be swung inwards or outwards to
allow access. The vertical tubes also feature positioning rings that will
be used when building the Mi TOWER STAIRS and allow the
guardrail brace panel hooks to be correctly positioned.
Gate Locking Pin
Upper
Positioning Ring
Lower
Positioning Ring
Gate/Ladder
Section
To Next Page
