PORA ELECTRIC MACHINERY CO.,LTD.
Taper Tension Controller

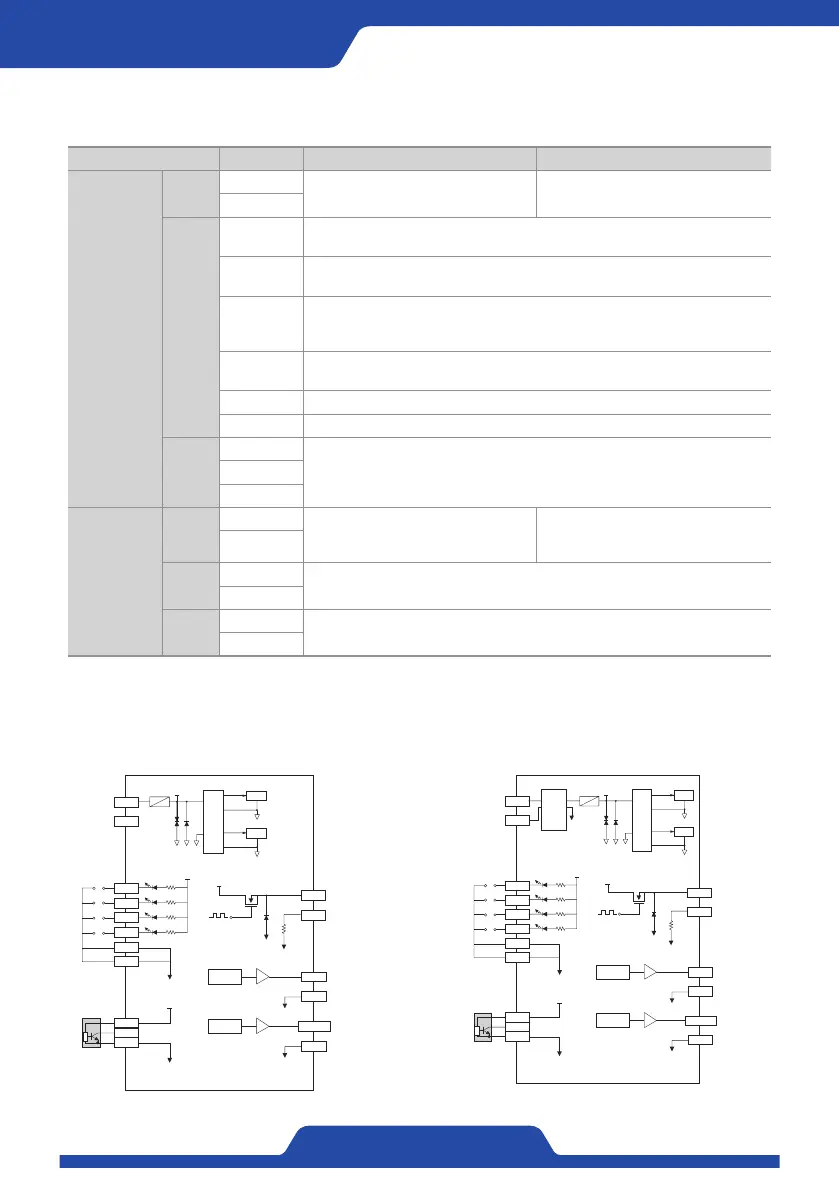

3. Specifications
4. External Connection Diagram
7
065
&.4
'64&
7JO
345
#8%
$POUS
065
065
(/%
(/%
7
4*(
(/%
7
7JO
7JO
4VC0VUQVU
_7ED
4VC0VUQVU
_N"
7
(/%
N7
(/%
7JO
4FOTPS*OQVU
%JHJUBM*OQVU
PXFS*OQVU
ED
PR-DTC-3000
22~26Vdc
PR-DTC-3000P
100~240Vac
7
065
&.4
/
-
'64&
7JO
345
#8%
$POUS
065
065
(/%
(/%
7
4*(
(/%
7
7JO
7JO
4VC0VUQVU
_7ED
4VC0VUQVU
_N"
7
(/%
N7
(/%
7JO
4FOTPS*OQVU
%JHJUBM*OQVU
PXFS*OQVU
BD
4.14
7"
Category Terminal DTC-3000 Specifications DTC-3000P Specifications
Input
Power
+ / L
22~26 VDC 100~240 VAC
- / N
External
remote
EMS
-ON = Emergency stop (The set emergency stop rate output is generated.)
-OFF = General operation
OUT
-ON = Output is generated and the OUT button of the operation panel is deactivated.
-OFF = The OUT button of the operation panel is activated.
RST
-Current voltage reset → It operates in parallel with the RESET button of the
operation panel.
-The current voltage is changed to the starting voltage when the input is ‘On’.
BWD
-ON = Rewind, OFF= Unwind
-This switches between increase and decrease of winding pulse.
COM -External remote COM terminal
COM -External remote COM terminal
Proximity
sensor
V+
-Proximity switch/The response speed of the input pulse is 250 Hz or slower.
-PNP or NPN can be used (selected in setup)
SIG
GND
Output
Brake
and
Clutch
PP Control output for Power Clutch/Brake
About 0 ~ 24 VDC input proportional
(maximum 5 A)
Control output for Power Clutch/Brake
About 0 ~ 24 VDC 75 W (2.8 A)
PN
Voltage
output
V_OUT
The voltage proportional to the output is generated between 0 and 10 VDC.
(When the output is 50.0 %, 5.0 V is generated.)
GND
Current
output
I_OUT
The current proportional to the output is generated between 4 and 20 mA.
(When the output is 50.0 %, 12㎃ is generated.)
GND
