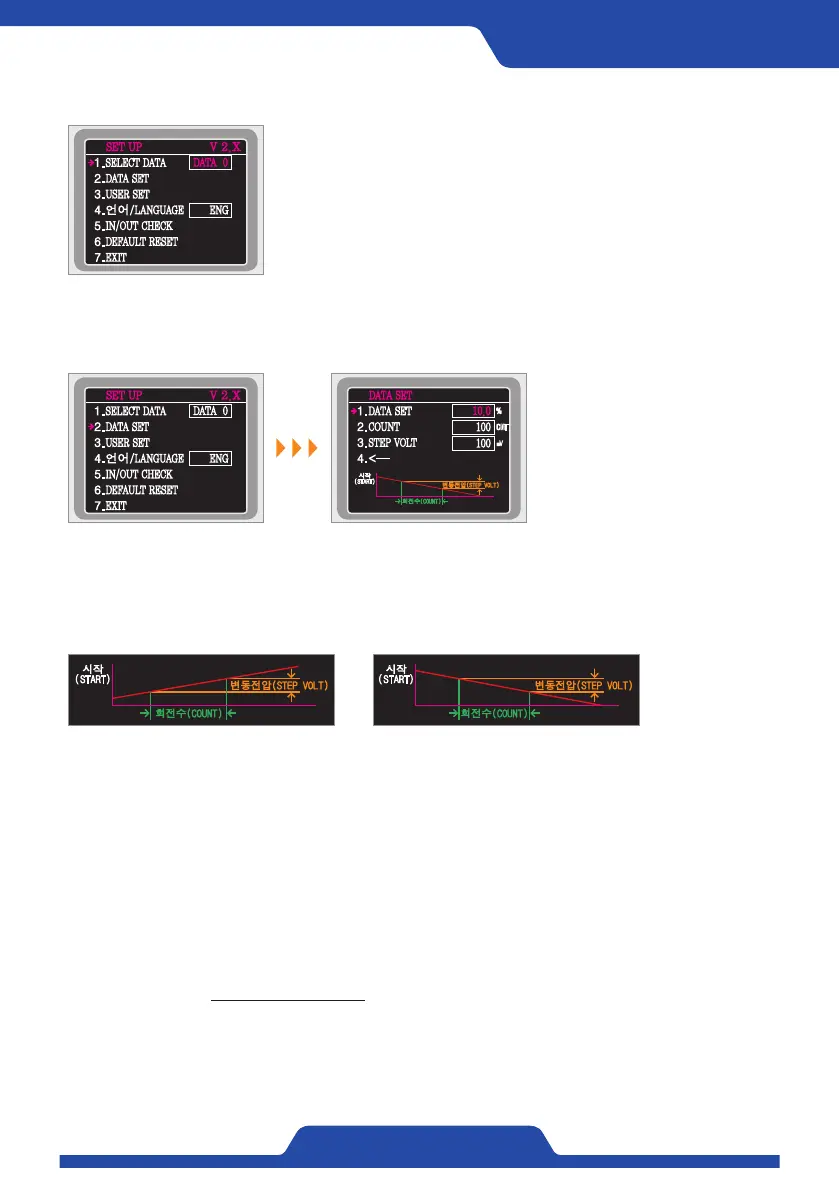

PORA PR-DTC-3000P User Manual

13
PORA ELECTRIC MACHINERY CO.,LTD.
PR-DTC-3000 Type
- Turn the dial button in setup menu to move to ‘Data selection’
- Activate change of set value by pressing dial button in ‘data selection’.
Check whether there is any problem with the actual output switching among
‘control output’, ‘voltage output’, and ‘current output’ by turning the dial.
-The data value (data 0 to data 9) can be designated by turning the dial button.
-The number of the fabric to be set is selected.
1) Data Selection
2) Data Set Up
- Turn the dial button in setup menu to move to ‘Data setup’
- To move to ‘Data setup’, press the dial button.
- ‘START VOLT, COUNT, STEP VOLT’ can be set by turning the DIAL.
Rewind
1.Starting voltage :
Set the start voltage of the output. During rewinding, the output increases from the start voltage by the number of
revolutions and variable voltage, and during unwinding, the output decreases from the start voltage.
2.Number of revolutions :
It shows the voltage changing during the set number of revolutions.
3.Variable voltage :
Shows for how many revolutions the set variable voltage is applied.
■Voltage algorithm =
Number of revolutions
Variable voltage
Unwind
SET UP V 2.X
1.
SELECT DATA
2.
DATA SET
3.
USER SET
4.언어/
LANGUAGE
5.
IN/OUT CHECK
6.
DEFAULT RESET
7.
EXIT
DATA 0
ENG
SET UP V 2.X
1.
SELECT DATA
2.
DATA SET
3.
USER SET
4.언어/
LANGUAGE
5.
IN/OUT CHECK
6.
DEFAULT RESET
7.
EXIT
DATA 0
ENG
DATA SET
1.
DATA SET
2.
COUNT
3.
STEP VOLT
4.<--
10.0
100
100
2.4V %
CNT
㎷
시작
(START)
회전수(COUNT)
변동전압(STEP VOLT)
시작
(START)
회전수(COUNT)
변동전압(STEP VOLT)
시작
(START)
회전수(COUNT)
변동전압(STEP VOLT)
