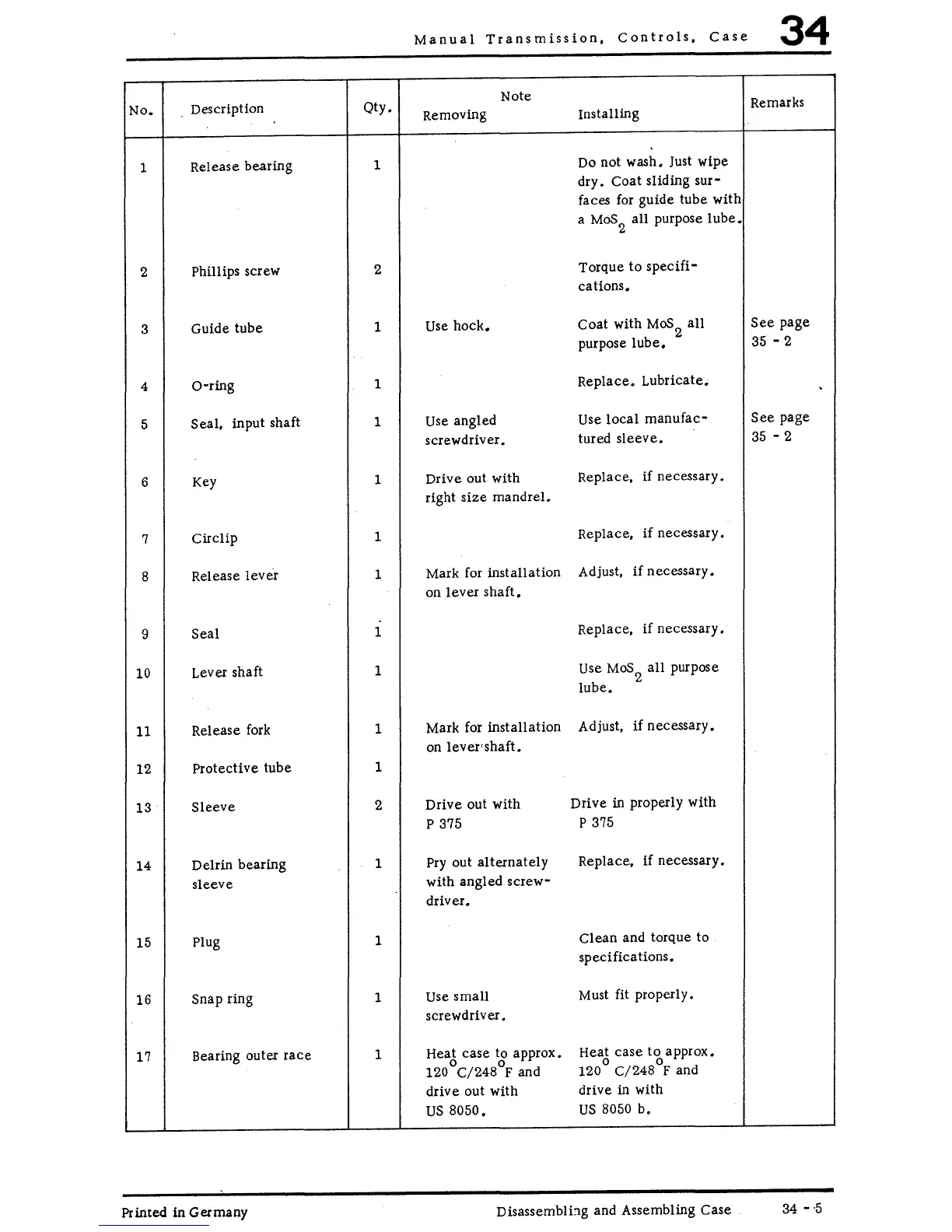

Porsche 912 E - Page 107

Manual Transmission, Controls, Case
34
Description
Qty.
Note
Remarks
No.
Removing
Installing
1
Release bearing
1
Do not wash. Just wipe
dry. Coat sliding sur-
faces for guide tube with
a
MoS
2
all purpose lube.
2
Phillips screw
2
Torque
to specifi-
cations.
3
Guide tube
1
Use hock.
Coat with MoS
2
all
See page
purpose
lube.
35 - 2
4
O-ring
1
Replace. Lubricate.
'
5
Seal, input shaft
1
Use angled
Use local manufac-
See page
screwdriver.
tured
sleeve.
35 - 2
6
Key
1
Drive out with
Replace,
if necessary.
right
size mandrel.
7
Circlip
1
Replace,
if necessary.
8
Release
lever
1
Mark for installation
Adjust,
if necessary.
on lever
shaft.
9
Seal
1
Replace,
if necessary.
10
Lever shaft
1
Use MoS
2
all purpose
lube.
11
Release fork
1
Mark
for installation
Adjust,
if necessary.
on lever·shaft.
12
Protective tube
1
13
Sleeve
2
Drive out with
Drive in properly with
p 375
p 375
14
Delrin bearing
1
Pry out alternately
Replace,
if necessary.
sleeve
with angled screw-
driver.
15
Plug
1
Clean and torque to
specifications.
16
Snap ring
1
Use small
Must fit proper! y.
screwdriver.
17
Bearing outer
race
1
Heat case to approx.
Heat case
to approx.
0 0
0 0
120 C/248 F and
120 C/248 F and
drive out with
drive in with
us 8050.
us 8050 b.
