Manual Transmission, Controls, Case
34

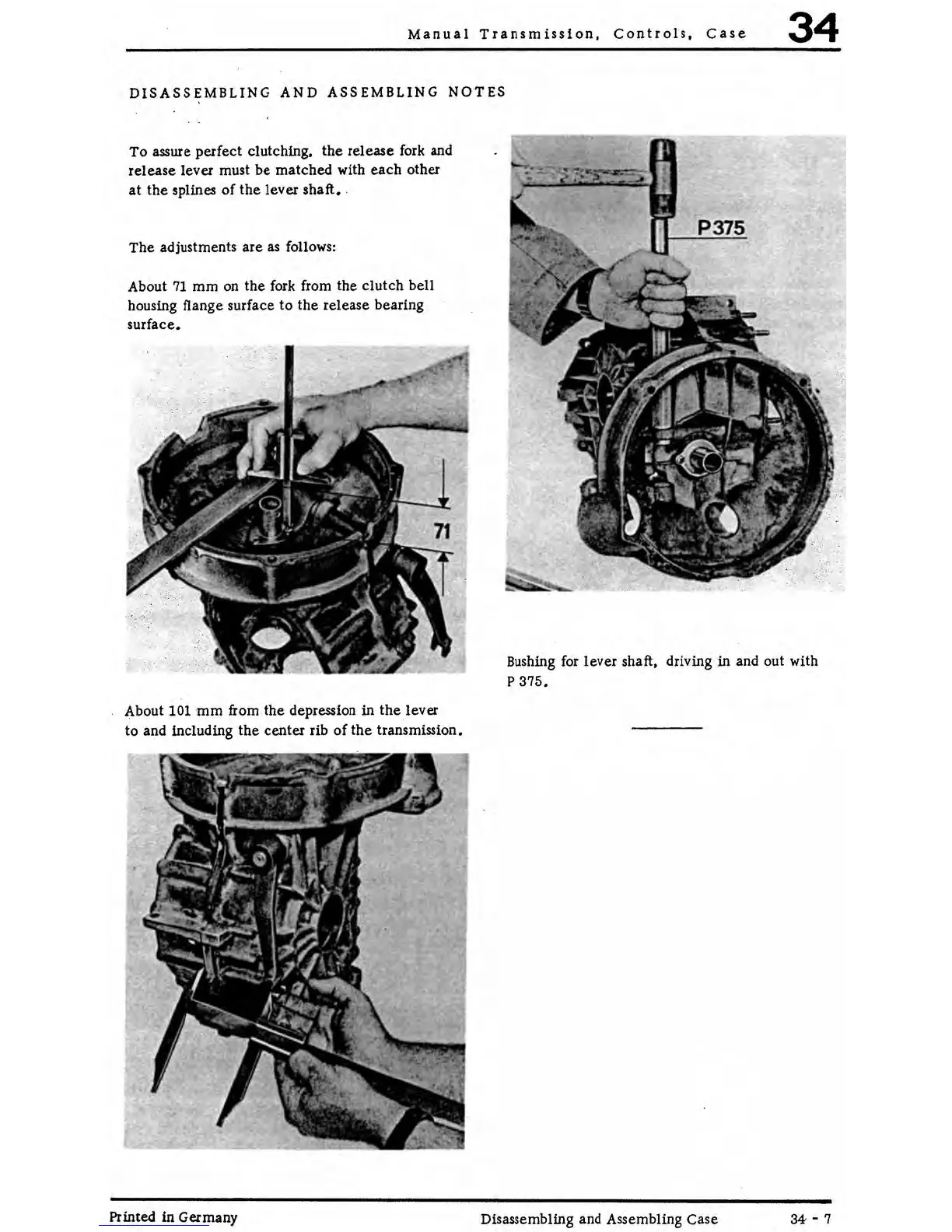

DISASSEMBLING AND ASSEMBLING NOTES
To assure perfect clutching. the release fork and
release lever must
be matched with each other
at the splines of the lever shaft.
The adjustments are as follows:
About 71 mm on the fork from the clutch bell
housing flange surface to the release bearing
surface.
About
101 mm from the depression in the lever
to and including the center rib
of the transmission.
Printed in Germany
Bushing for lever shaft, driving in and out with
p 375.
Disassembling and Assembling Case
34·- 7
