35
Manual
Transmission,
Gears
and
Shafts

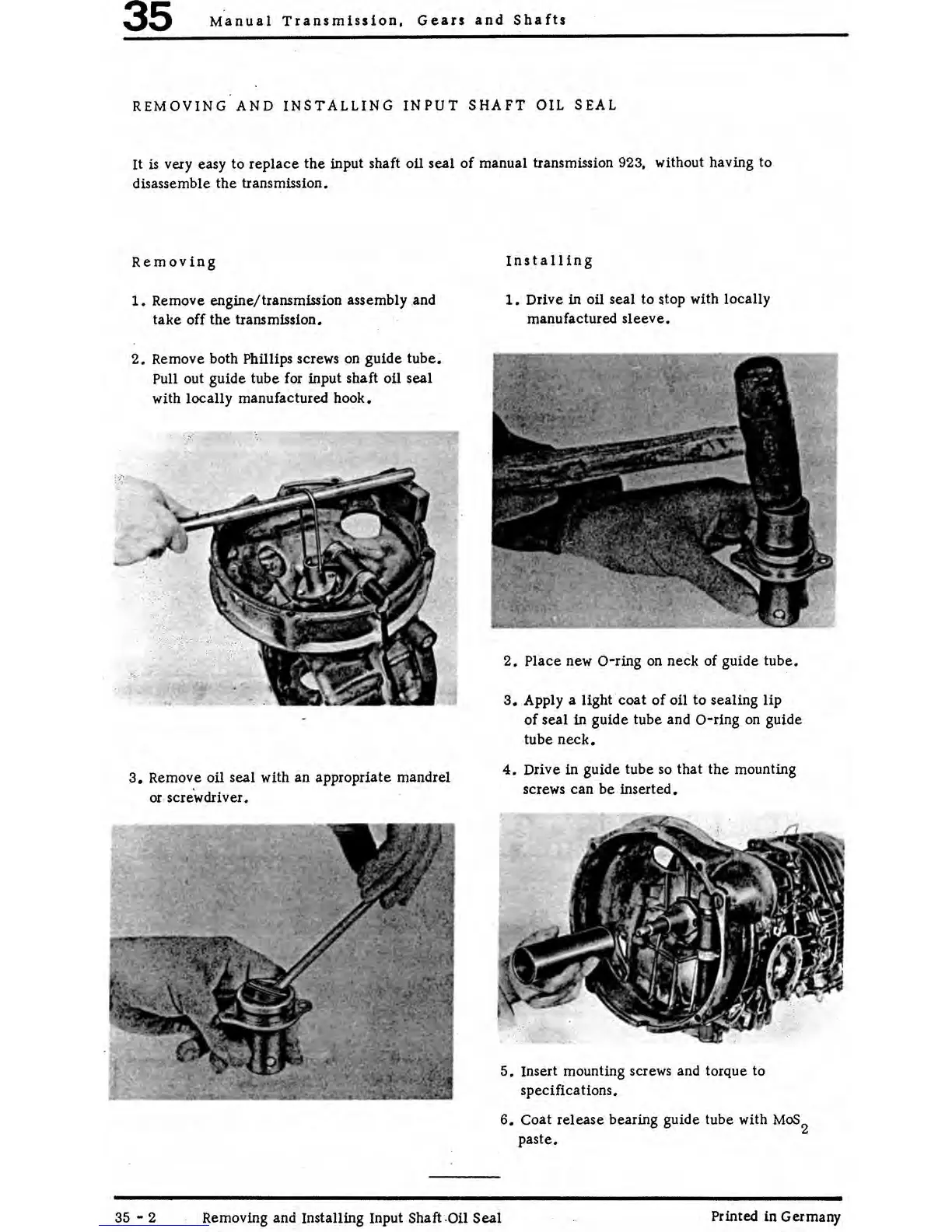

REMOVING
AND
INSTALLING
INPUT
SHAFT
OIL SEAL
It
is
very easy to
replace
the
input shaft oil seal
of
manual transmission 923, without having to
disassemble the transmission.
Removing
1.
Remove engine/transmission assembly
.and
take off the transmission.
2.
Remove both Phillips screws
on
guide tube.
Pull out guide tube for input shaft oil seal
with locally manufactured hook.
3.
Remove oil seal with an appropriate mandrel
or
screwdriver.
Installing
1.
Drive in oil seal to stop with locally
manufactured sleeve.
2.
Place new O-ring
on
neck of guide tube.
3.
Apply a light
coat
of
oil to sealing lip
of
seal in guide tube and
0-ring
on
guide
tube
neck.
4.
Drive in guide tube
so
that the mounting
screws can be inserted.
5.
Insert mounting screws and torque to
specifications.
6.
Coat release bearing guide tube with
MoS
2
paste.
35-2
Removing and Installing Input Shaft.Oil Seal
Printed
in
Germany
