47
Brakes,
Hydraulics

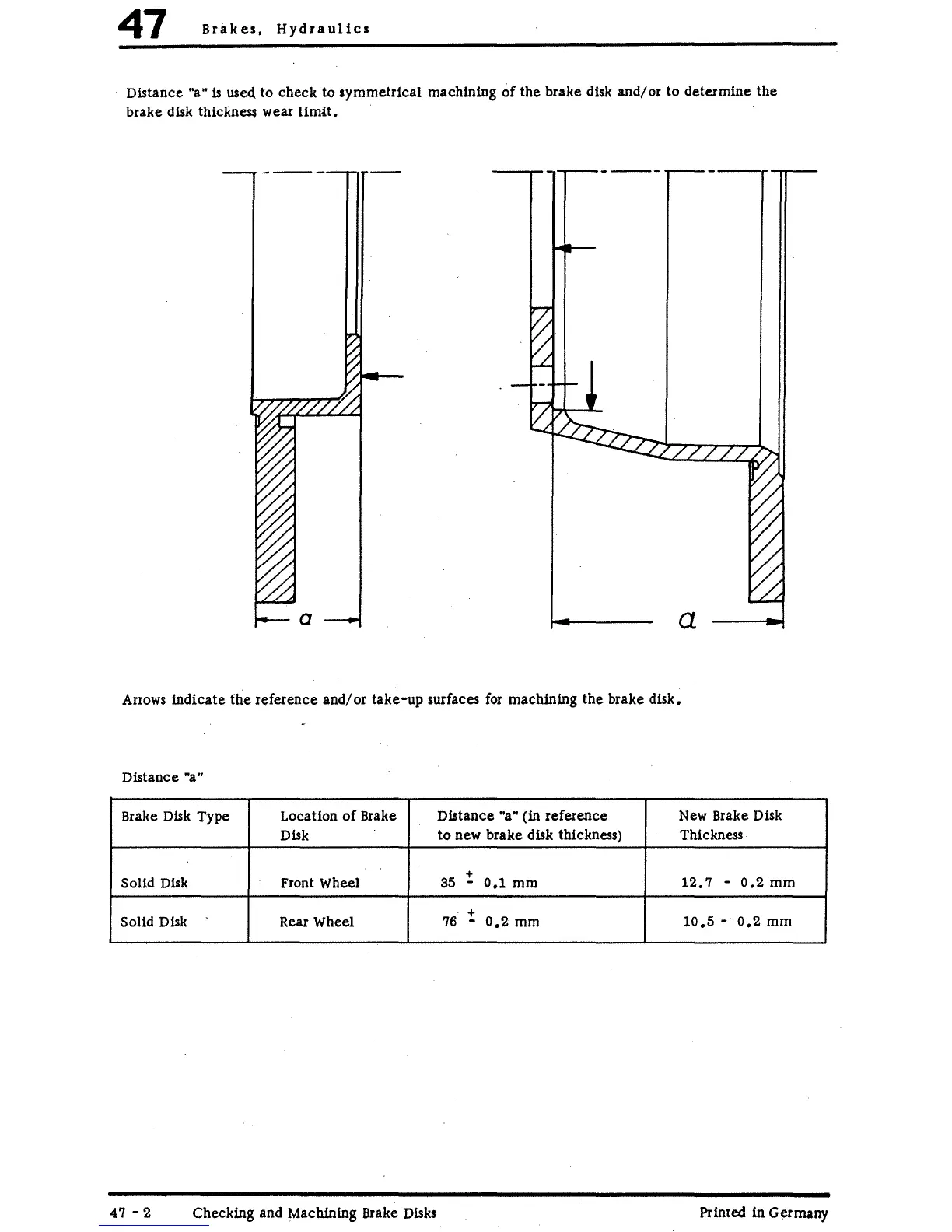

Distance "a"
is
used.
to check to symmetrical machining
of
the brake disk and/or to determine the
brake disk
thicknes$ wear
limit.
---..-
-......---
---
---
-.....--
a
Arrows
indicate the reference and/or take-up surfaces
for
machining the brake disk.
Distance "a"
Brake
Disk
Type Location
of
Brake
Distance "a" (in reference
New
Brake Disk
Disk
to new brake disk thickness) Thickness
Solid
Disk
Front Wheel
35
+
-
0.1
mm
12.7
-
0.2
mm
Solid Disk Rear Wheel
76
+
-
0.2
mm
10.5-
0.2
mm
47
-2
Checking and Machining Brake
Disks
Printed
in
Germany
