Porsche 912 E - Relay and Fuse Locations

Gauges, Instruments, Radio
90

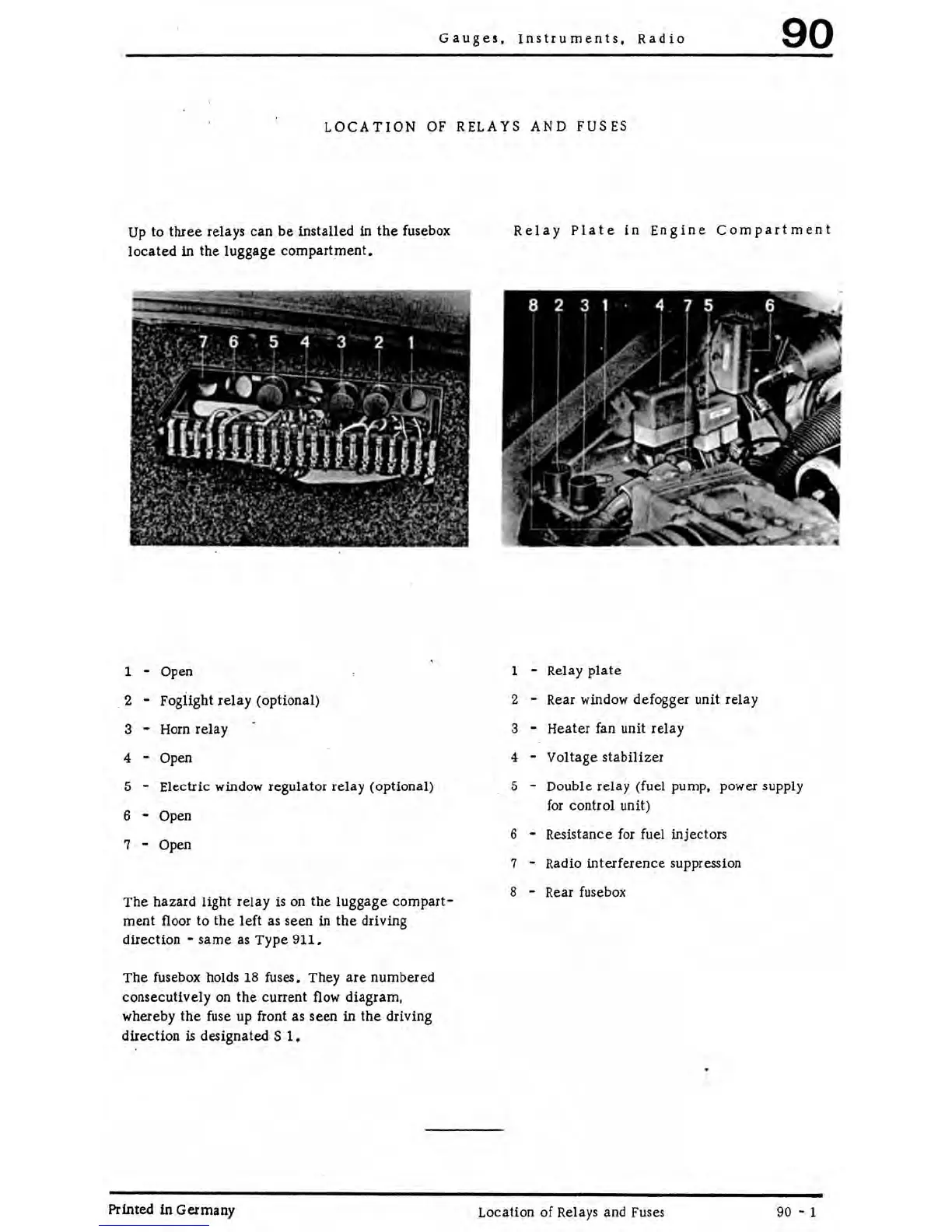

LOCATION OF RELAYS AND FUSES
Up to three relays can be installed in the fusebox
located in the luggage compartment.
1 - Open
. 2 - Fogiight relay (optional)
3 - Hom
relay
4 - Open
5 - Electric window regulator relay (optional)
6 - Open
7 - Open
The hazard light relay is on the luggage compart-
ment floor to the left as seen in the driving
direction - same as Type 911.
The fusebox holds 18 fuses. They are numbered
consecutively on the current flow diagram,
whereby the fuse up front as seen in the driving
direction is designated S 1.
Printed in Germany
Relay Plate in Engine Compartment
1
- Relay plate
2
- Rear window defogger
unit relay
3
-
Heater fan unit relay
4 - Voltage stabilizer
5
- Double
relay (fuel pump, power supply
for control unit)
6 - Resistance for fuel injectors
7
- Radio interference suppression
8 - Rear fusebox
Location
of Relays and Fuses
90 - 1
