Porsche 912 E - Page 127

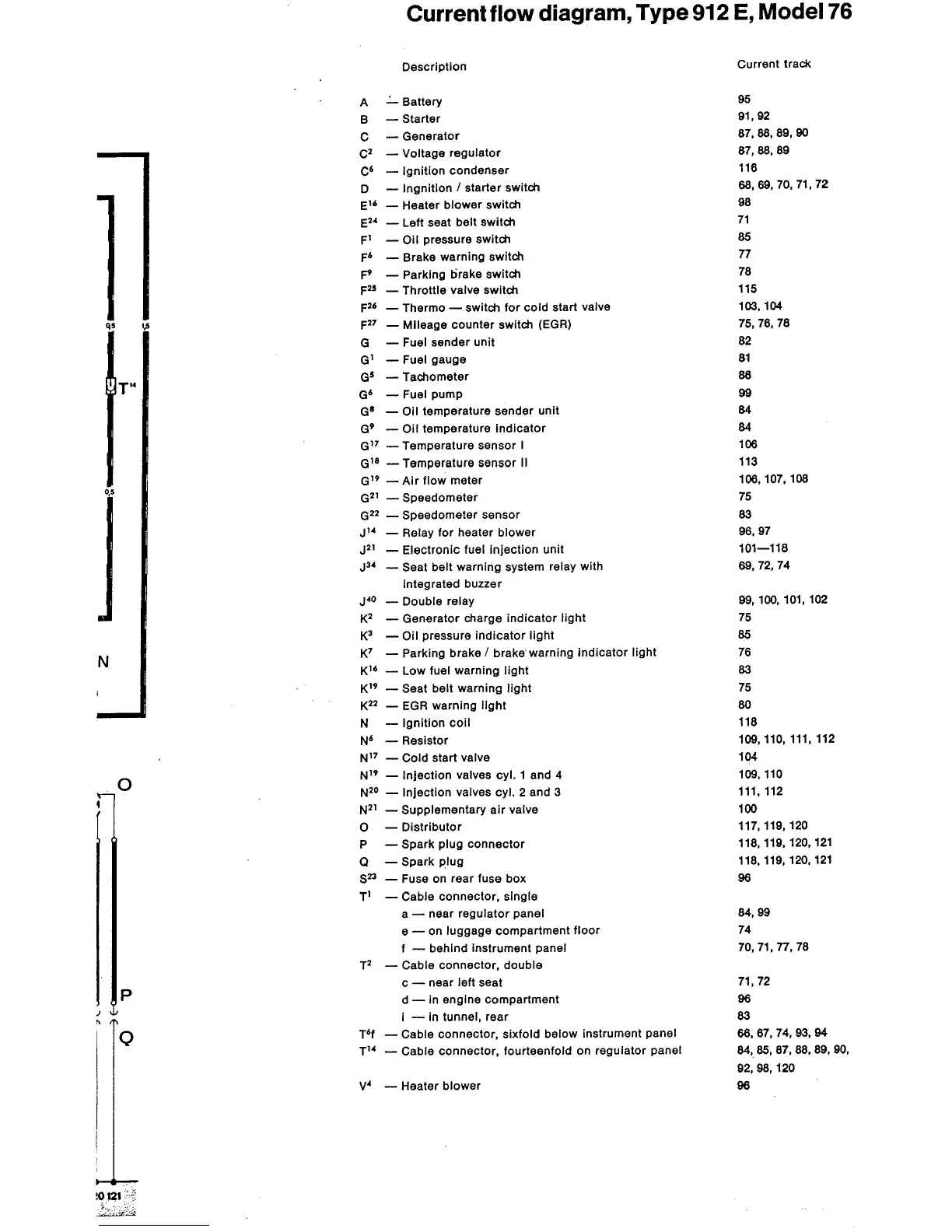

Current flow diagram, Type 912 E, Model76
Description
Current track
A
..:._Battery
95
B
-Starter
91,92
c
-Generator
87,88,89,90
C2
- Voltage regulator
87,88,89
c&
- Ignition condenser
116
D
- lngnltion
I starter switch
68,69, 70, 71,72
E16
- Heater blower switch
98
E2~
- Left seat belt switch
71
Fl
-
Oil pressure switch
85
F6
- Brake warning switch
n
F'
- Parking brake switch
78
F:~J
- Throttle valve switch
115
F26
- Thermo - switch for cold start valve
103, 104
q5
...
F27
-Mileage counter switch (EGR)
75, 76, 78
G
-
Fuel sender unit
82
Gl
-Fuel gauge
81
G5
- Tachometer
86
T"
G6
-Fuel pump
99
G'
-Oil temperature sender unit
84
G'
- Oil temperature Indicator
84
G17 -Temperature sensor I
106
Gle -Temperature sensor II
113
G19 -Air flow meter
106, 107, 108
05
G21 - Speedometer
75
G22 - Speedometer sensor 83
J"
- Relay for heater blower
96, 97
J21
- Electronic fuel injection unit
101-118
J3~
- Seat belt warning system relay with
69, 72, 74
Integrated buzzer
J-40
- Double relay
99, 100, 101, 102
K2
-Generator charge Indicator light
75
Kl
-Oil pressure Indicator light
85
N
K7
-Parking brake I brake' warning Indicator light
76
K16
- Low fuel warning light
83
K19
-Seat belt warning light
75
K22
- EGR warning light
80
N
-
Ignition coil
118
N6
-Resistor
109, 110, 111, 112
NIT -Cold start valve
104
0
N
19
- Injection valves cyl. 1 and 4
109. 110
N2o - Injection valves cyl. 2 and 3
111, 112
N21
-Supplementary air valve
100
0
- Distributor
117, 119, 120
p
- Spark plug connector
118, 119. 120, 121
Q
-Spark plug
118, 119, 120, 121
sza
- Fuse on rear fuse box
96
Tl
-Cable connector, single
a - near regulator panel
84,99
e - on luggage compartment floor
74
f - behind Instrument panel
10, 11, n. 78
T2
- Cable connector, double
c - near left seat
71, 72
p
d-In engine compartment
96
I - In tunnel, rear
83
Q
T
6
f
-
Cable connector, sixfold below instrument panel
66,67, 74,93,94
T"
- Cable connector, fourteenfold on regulator panel
84,, 85, 87, 88, 89, 90,
92,98,120
v~
- Heater blower 96
