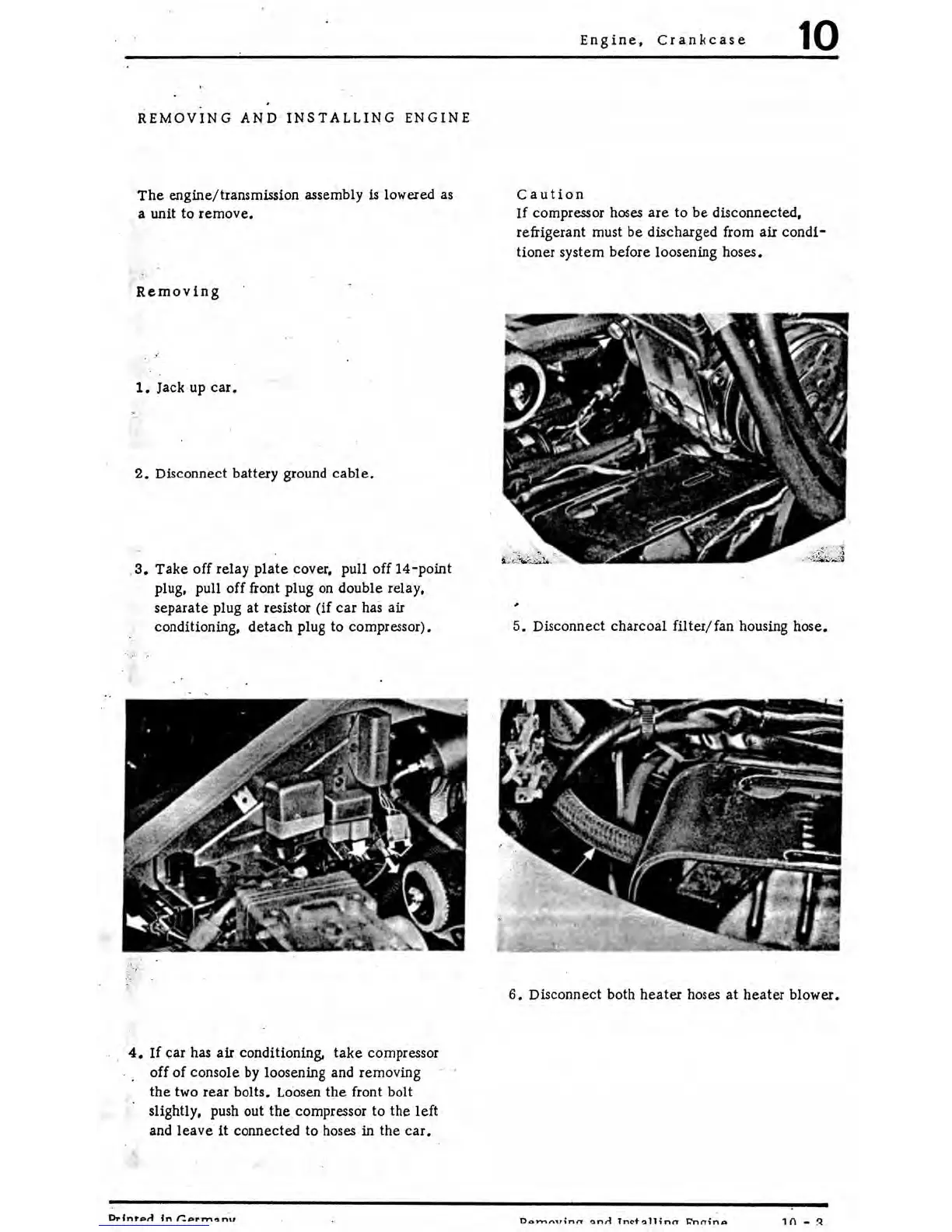

REMOVING
AND
INSTALLING
ENGINE
The
engine/transmission assembly
is
lowered
as
a unit to remove.
•·
Removing
1.
Jack up
car.
2.
Disconnect battery ground
cable
•
.
3.
Take
off relay
plate
cover. pull off 14-point
plug, pull off front plug
on
double relay,
separate plug at resistor
(if
car
has air
conditioning, detach plug to compressor).
4.
If
car
has
air conditioning. take compressor
off of console
by
loosening and removing
the two rear bolts. Loosen the front bolt
slightly, push out the compressor to the left
and leave
it
connected to hoses
in
the
car.
Engine,
Crankcase
10
Caution
If
compressor hoses are to
be
disconnected,
refrigerant must be discharged from air
condi-
tioner system before loosening hoses.
5.
Disconnect charcoal filter/fan housing hose.
6.
Disconnect both heater hoses at heater blower.
1(\
-
~
