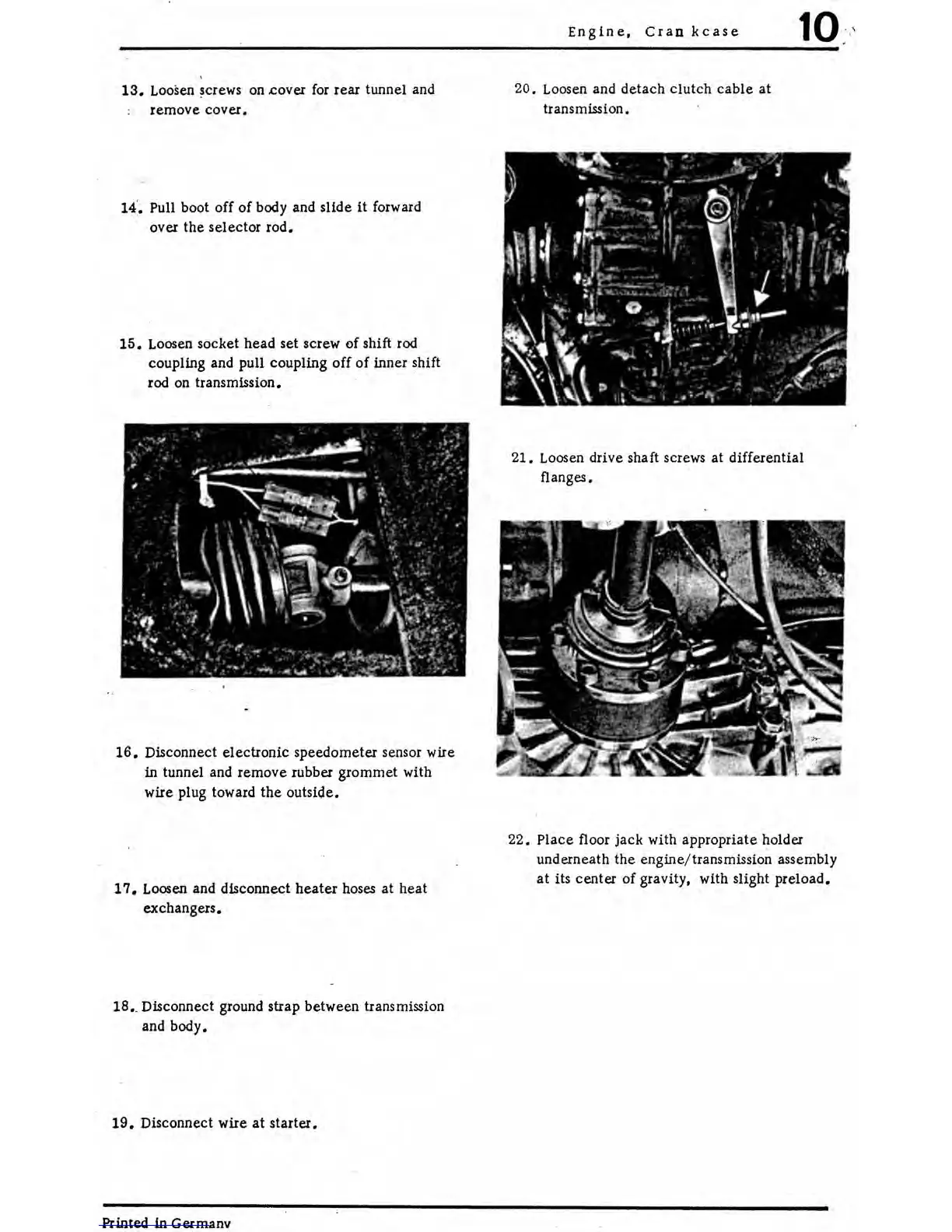

13.
Loosen screws
on
.cover
for
rear tunnel and
remove cover.
14.
Pull boot off of body and slide
it
forward
over the selector rod.
15.
Loosen socket head set screw of shift
rod
coupling and pull coupling off
of
inner shift
rod
on
transmission.
16.
Disconnect electronic speedometer sensor wire
in tunnel and remove rubber grommet with
wire plug toward the outside.
17.
Loosen and disconnect heater
hoses
at heat
exchangers • .
18.
_ Disconnect ground strap between transmission
and body.
19.
Disconnect wire at starter.
Printed in Germanv
Engine,
Crao
kcase
20.
Loosen
and detach clutch cable at
transmission.
10
~
,
21.
Loosen drive shaft screws at differential
flanges.
22. Place floor jack with appropriate holder
underneath the engine/ transmission assembly
at its center of gravity, with slight preload.
