13.
Engine, Crankshaft, Pistons
1 2
3 7
8 9
6
5
Description
Qty.
Note when
No.
Removing
Installing
Remarks
-
1
Cylinder head
4
Replace
gasket
2 Cylinder
4 Mark installed
Cylinder seat in
crank-
position. Check
case and cylinder head,
for wear. If
as well as bearing sur-
.
necessary, install
faces in cylinder, and
'
new cylinder and
gasket surfaces must
be
piston of same size
perfectly clean since
group.
foreign particles will
lead to leaks.
Coat with oil. Studs
See page 13-6
must not be in contact
with cooling fins.
Use
piston ring compressor.
3
Cylinder base
4 Replace.
gasket
4
Circlip
8 Use circlip pliers.
5 Piston pin
4
Use piston pin drift
Coat with
oil. If pin
VW 207c. is tight, heat giston
0
to approx. 80 C/176 F.

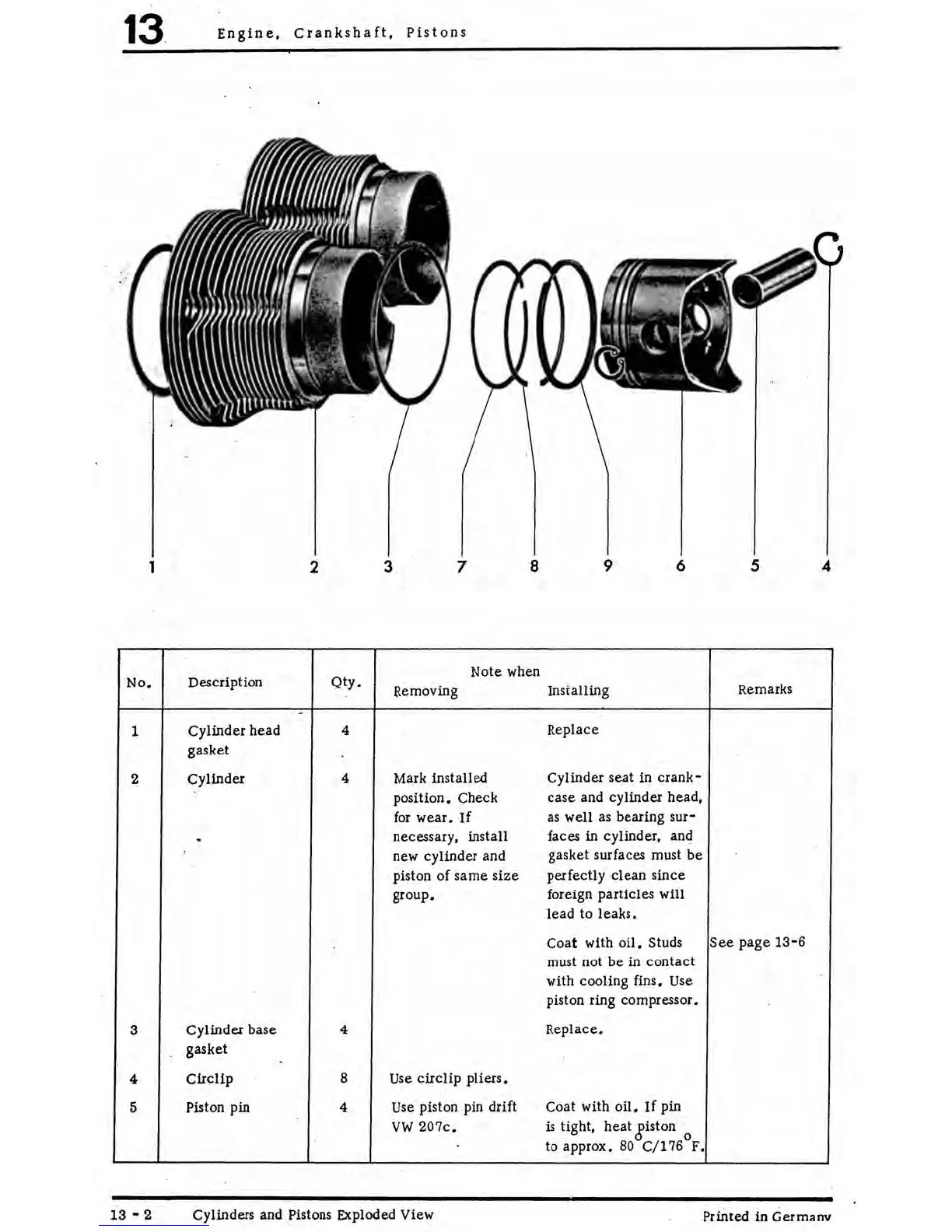

13- 2 Cylinders and Pistons Exploded View
