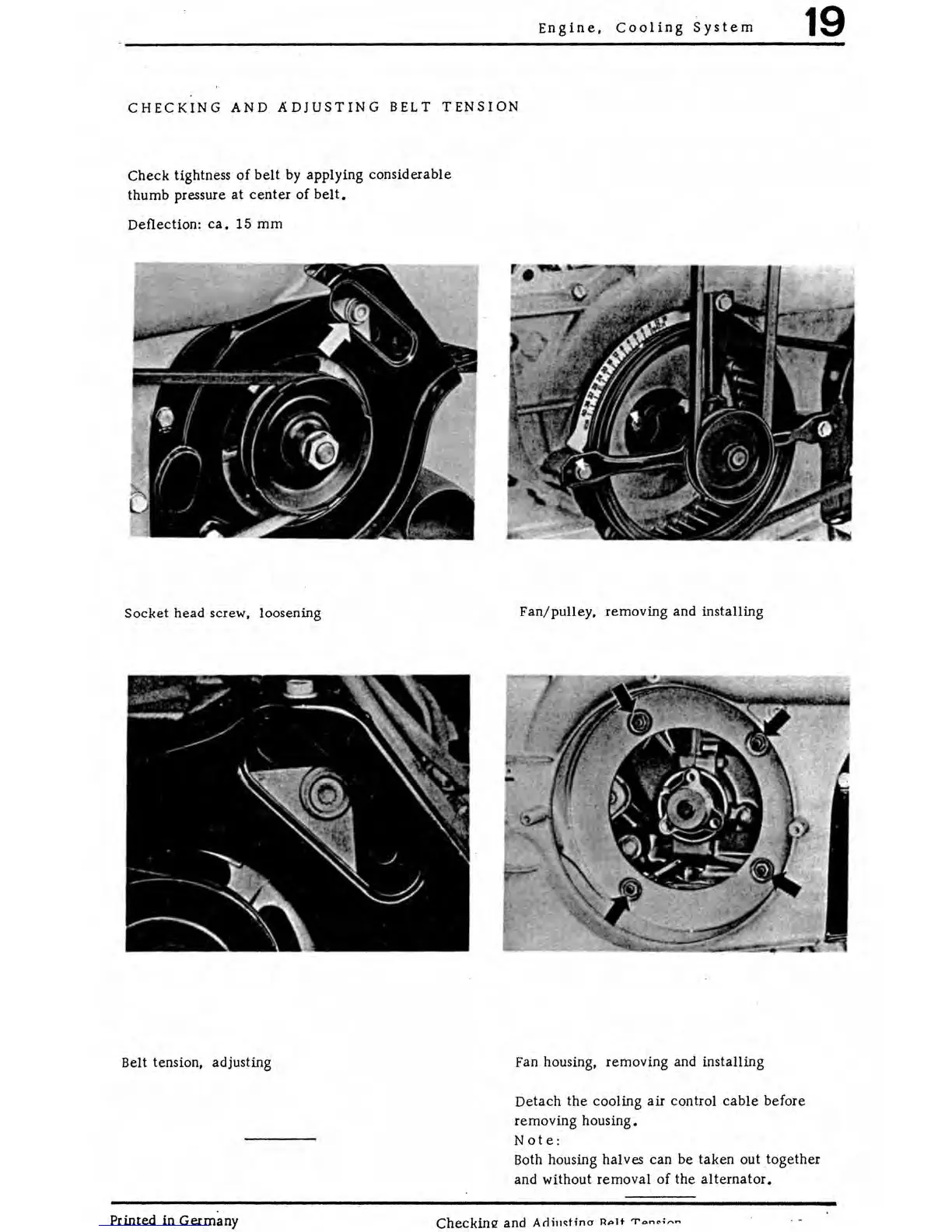

Engine,
Cooling
System
19
CHECKING
AND
ADJUSTING
BELT
TENSION
Check tightness
of
belt
by
applying considerable
thumb pressure at
center
of
belt.
Deflection:
ca.
15
mm
Socket head screw, loosening
Belt tension, adjusting
Printed in Germany
Fan/pulley, removing and installing
Fan housing, removing and installing
Detach the cooling air control
cable
before
removing housing.
Note:
Both
housing halves can be taken out
together
and without removal
of
the
alternator.
