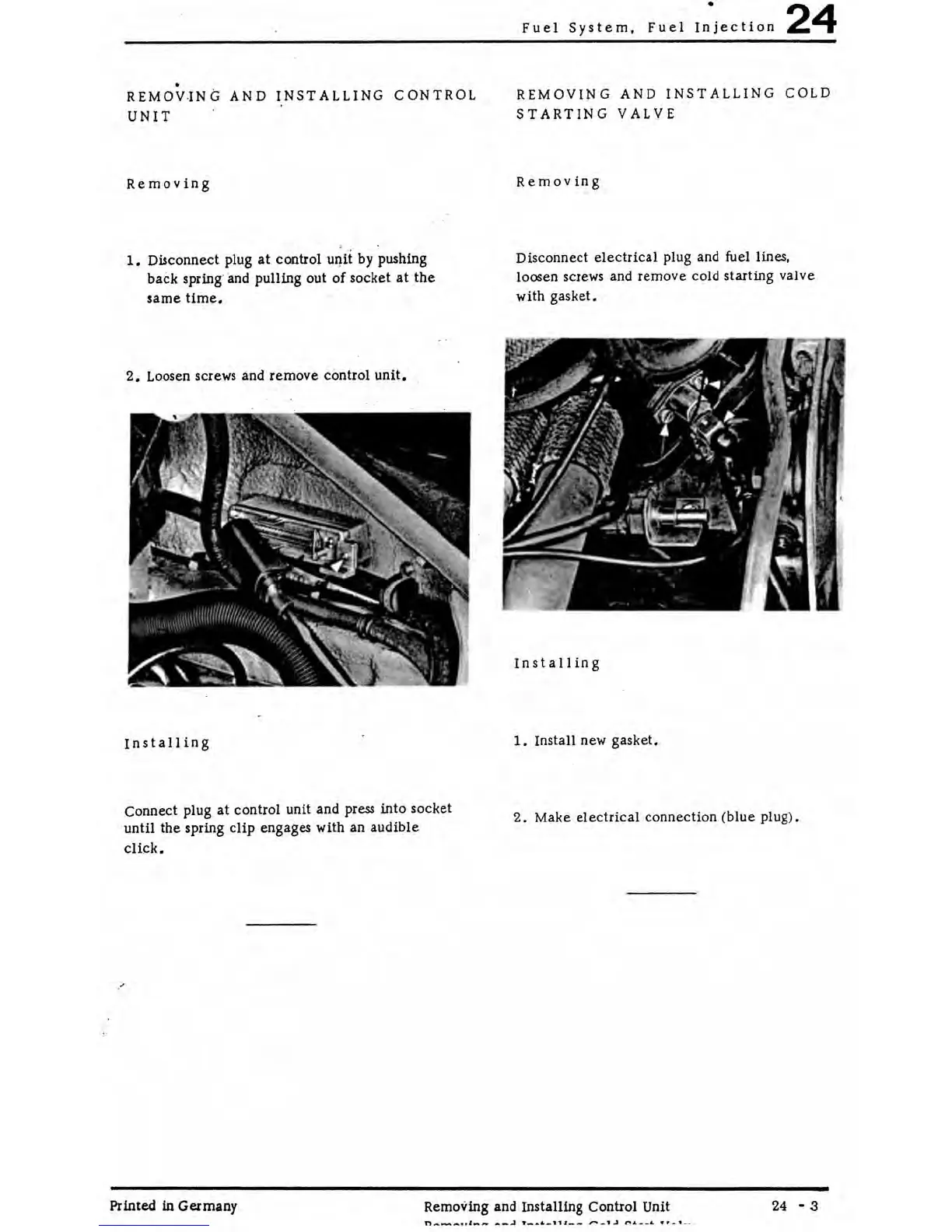

REMOVING AND INSTALLING CONTROL
UNIT
Removing
1. Disconnect plug at control unit by pushing
back spring and pulling out
of socket at the
same time.
2. Loosen screws and remove control unit.
Installing
Connect plug at control unit and press into socket
until the spring
clip engages with an audible
cW:k.
·"'
Fuel System, Fuel Injection
24
REMOVING AND INSTALLING COLD
STARTING VALVE
Removing
Disconnect electrical plug and fuel lines,
loosen screws and remove cold starting valve
with gasket.
Installing
1. Install new gasket.
2. Make electrical connection (blue plug).
Printed
in Germany
Removing and Installing Control
Unit
24 -3
