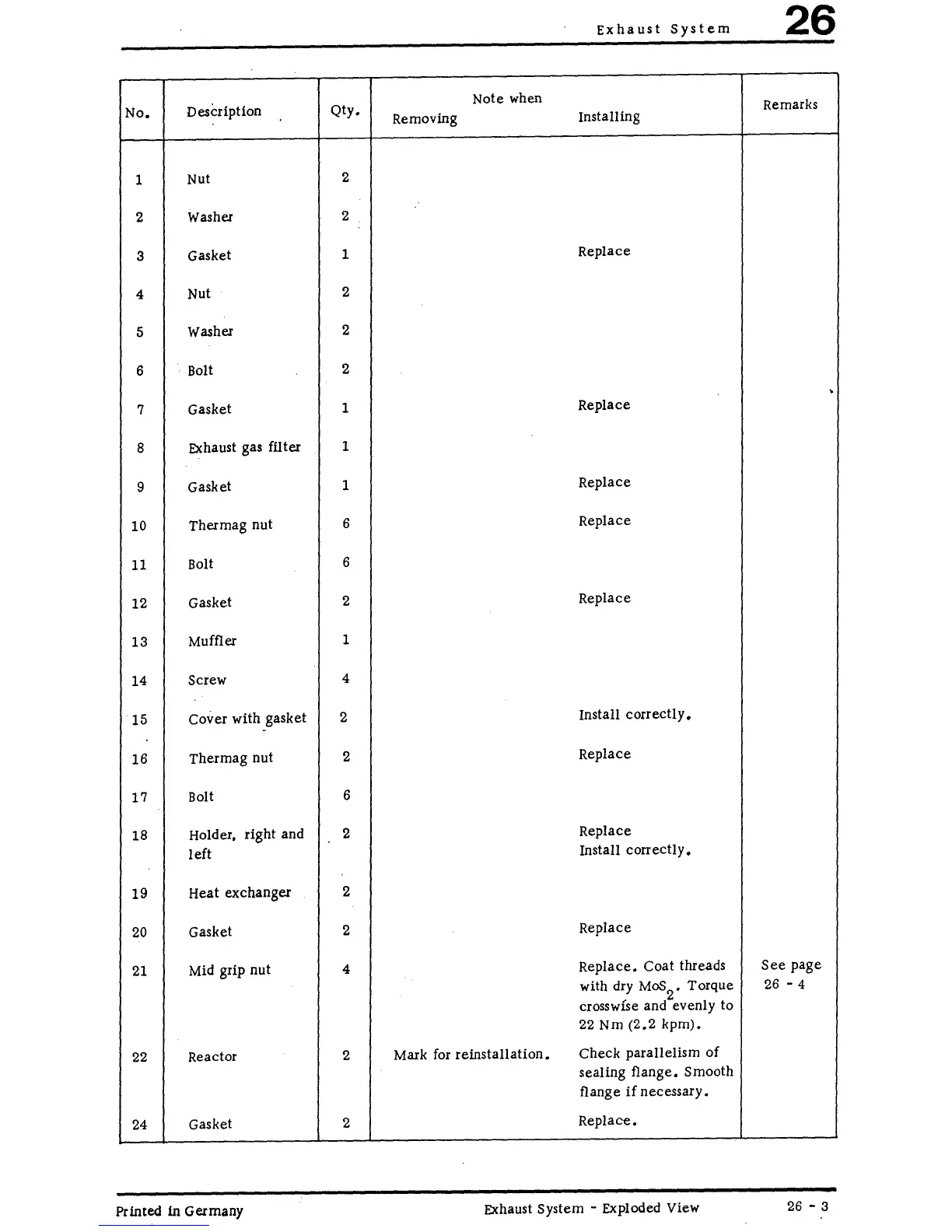

Porsche 912 E - Page 88

Exhaust System
26
Description
Note when
Remarks
No.
Qty.
Removing
Installing
1
Nut
2
2
Washer
2
3
Gasket
1
Replace
4
Nut
2
5
Washer
2
6 Bolt
2
'
7
Gasket
1
Replace
8
Exhaust gas filter
1
9
Gasket
1
Replace
10
Thermag nut
6
Replace
11
Bolt
6
12
Gasket
2
Replace
13
Muffler
1
14
Screw
4
15
Cover with gasket
2
Install correct!
y.
-
16
Thermag nut
2
Replace
17
Bolt
6
18
Holder,
right and
2
Replace
left
Install correctly.
19
Heat exchanger
2
20
Gasket
2
Replace
21
Mid grip nut
4
Replace. Coat threads
See page
with dry
MoS
2
•
Torque
26 -4
crosswfse and evenly to
22 Nm (2.2 kpm).
22
Reactor
2
Mark for
reinstallation.
Check parallelism of
sealing flange. Smooth
flange
if necessary.
24
Gasket
2
Replace.
Printed
in Germany
Exhaust System - Exploded View
26 - 3
