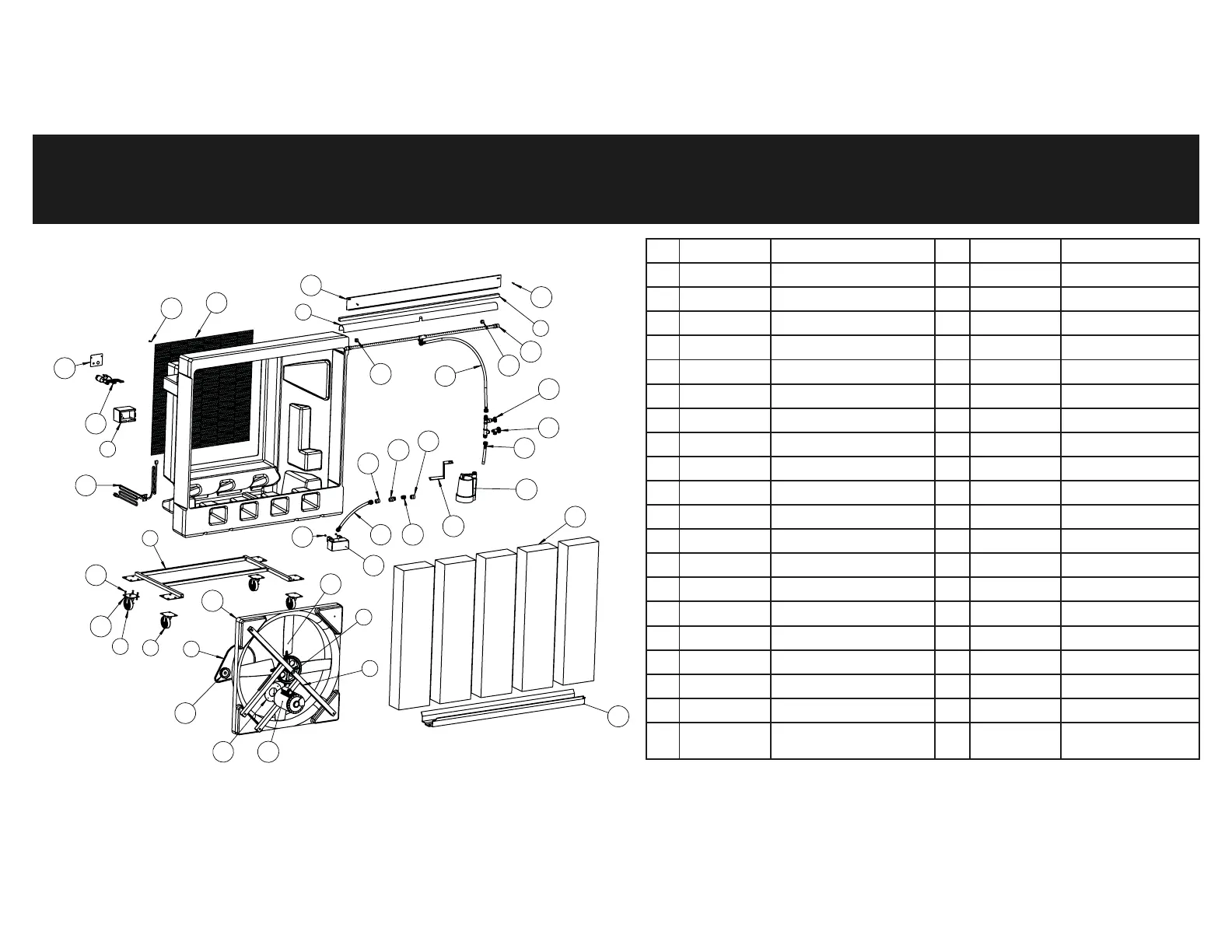

36" SINGLE-SPEED PARTS
18
3$&.6
5HYLVHG
220/50 and 220/60 models require additional parts. Please contact Customer Service for assistance
# PART # DESCRIPTION # PART # DESCRIPTION
1 BASE-2K36 CADDY 21 MOTOR-MNT-01 MOUNT FOR 36” MOTOR
2 BEARING-FAN-01 BEARING FOR 24” & 36” PAC 22 N-516-NYLOK 5/16” NYLOCK NUT FOR CASTERS
3 BELT2K-38-01 A-38 FAN BELT 23 PAC-PLB-01 BRASS INLET FITTING
4 BONNET-01 SPRAY BAR BONNET 24 PAD6048/G PAD FOR 36” PAC (5 per unit)
5 BOX-UL-02 1 SPD ELECTRICAL BOX 25 POWERCORD-01F POWER CORD ASSEMBLY
6 BRACE-36-02 BONNET BRACE 26 PRES-REG-01 WATER PRESSURE REGULATOR
7 BRACE-36-03 36” PULTRUSION ASSEMBLY 27 PULLEY-3.75 3.75 O.D. PULLEY
8 CASTERS-HD-4 HEAVY DUTY CASTER 28 PUMP-016-4Z L/G 1/6HP SUBMERSIBLE PUMP
9 CASTERS-HD-4L HEAVY DUTY LOCKING CASTER 29 PUMP-ACC-13 SUBMERSIBLE PUMP BRACE
10 CTRL-1SPD-01 1 SPEED SWITCH SET 30 PVC-ADP-01 3/4” X 1/2” REDUCING ADAPTER
11 DRAIN-01 1/2” BOILER DRAIN VALVE 31 S-004 1/4-20 X 1/2” BOLT FOR FLOAT
12 FAN-ASSM-01 PLASTIC BLADE & HUB ASSEMBLY FOR 36” PAC 32 S-006 #12 X 1 1/4” TEK SCREW
13 FLAP-36-01 FRONT FLAP FOR 36” 33 S-007 5/16-18 TRUSS HEAD SCREW
14 FLOAT-02 FLOAT VALVE 34 S-009 10-24 X 3/4” TRUSS HEAD SCREW
15 HOSE-FF24 1/2” X 24” FEM/FEM HOSE PUMP TO PLB 35 SPRAY-06 SPRAY BAR FOR 36” PAC
16 HOSE-FF50 1/2” X 50” FEM/FEM HOSE PLB TO SPRAYBAR 36 SPRAY-ACC-04 CLAMP FASTENER 1029
17 HOSE-FM30 1/2” X 30”FEM/MALE HOSE INLET TO FLOAT 37 SWITCHPL-1SPD SWITCH COVER PLATE
18 HOSE-FTG-05 FEM/FEM 3/4” BRASS SWIVEL 38 TROUGH-01 PAD TROUGH FOR 36” PAC
19 MESH-PAC-02 FAN SCREEN 39 VALVE-01 1/2” GATE VALVE
20 MOTOR-012-01STA
1SPD STUD MOUNT MOTOR (PRODUCED
W/9K922B)
40 VENTURI-36-01 36” RTM FAN VENTURI
To Next Page
