POTTERTON COMMERCIAL PRODUCTS DIVISION SECTION 1
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
DERWENT COMPACT PLUS – CONDENSING
PAGE 1

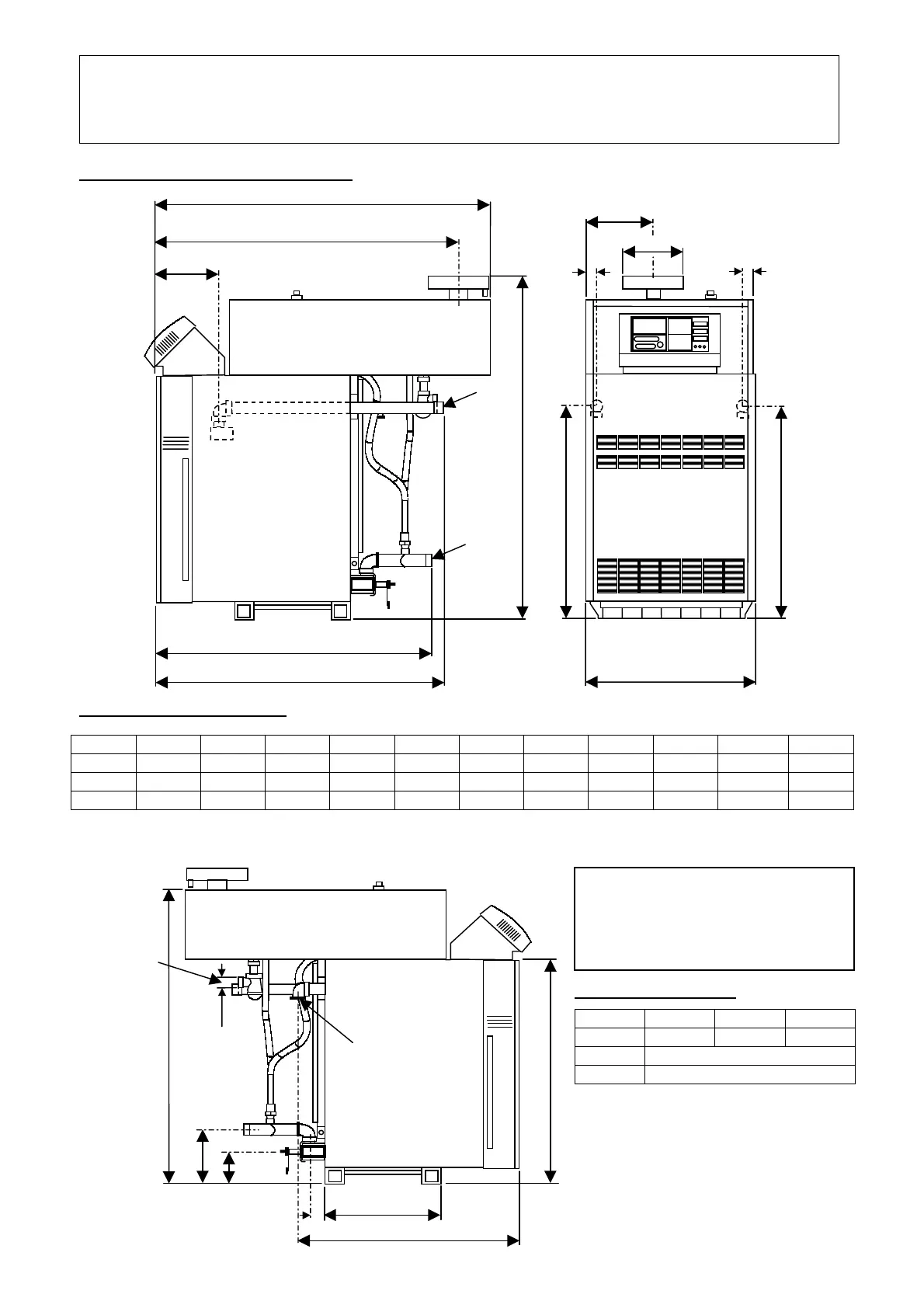

Fig 1 – General Data and Dimensions
Table 1 – Boiler Dimensions
Size A B C D E ØF G H I Return Flow
4 456 1200 1050 1150 1130 182 157 81 87 1 ¼” 1 ¼”
6 537 1200 1050 1194 1140 202 197 45 51 1 ½” 1 ½”
8 699 1390 1255 1194 1140 252 283 45 51 1 ½” 1 ½”
B
C
Flow
Return
1400
G
ØF
263
I
874
H
868
D
A
E
1300
143
243
1004
Ø34
931
60
485
Gas
Condensate
Note:
Maximum Working Temp 90°C
Maximum Working Pressure 3 Bar
Electrical Supply 230V 50Hz
468
Water 1 ¼” 1 ½” 1 ½”
Drain ½”
Gas 1 ¼”
Table 2 - Connections
