4 Electrical connectivity

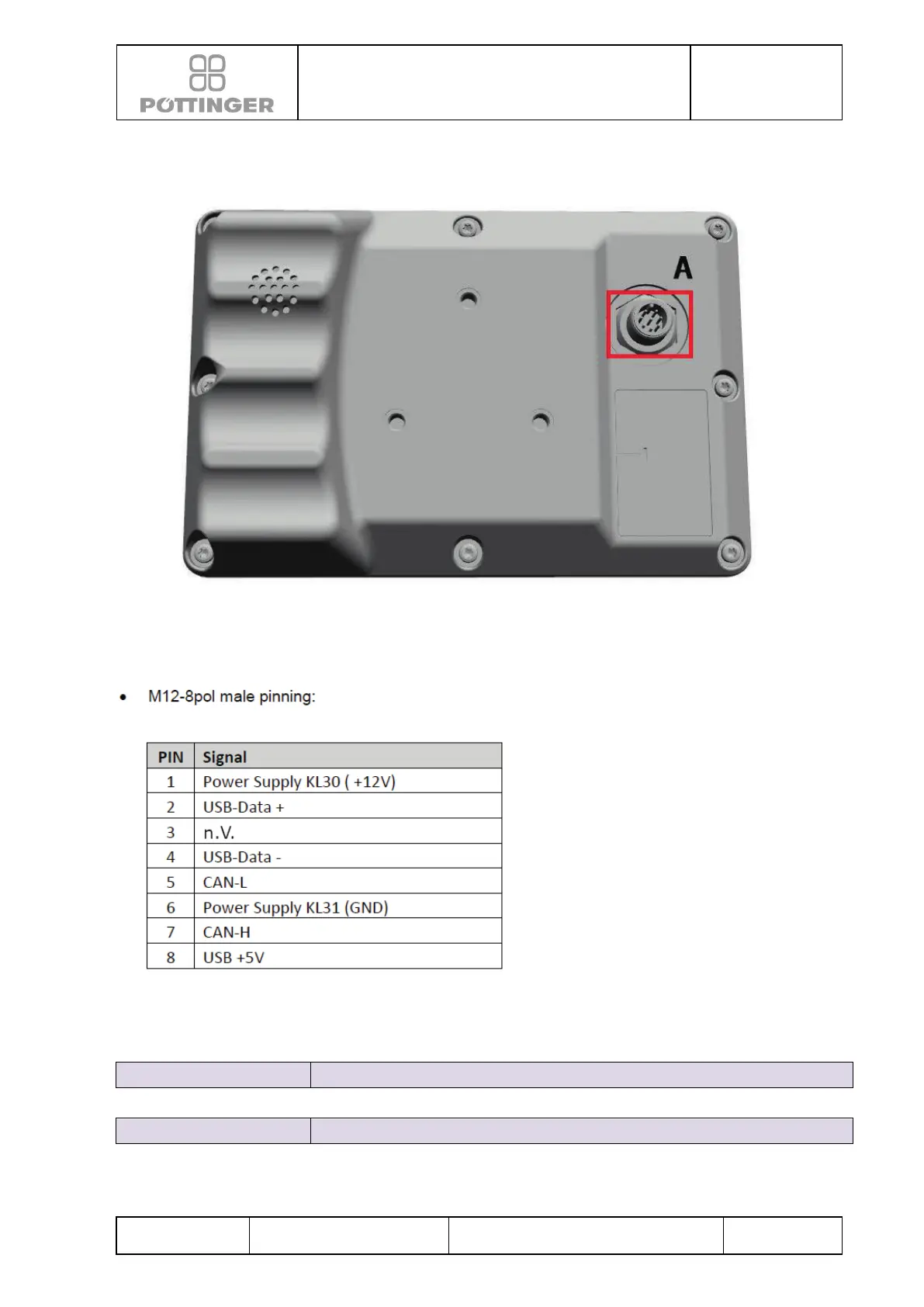

Physical interface:

• A: M12-8pol male Main Connector to implement

Pinout

4.1 Main Connector

Connection cable to Select Control Harness.

476.371

Versorgungskabel SC3.0

Connection cable to ISOBUS implement (to 9-pole ISOBUS InCab Connector)

476.282

Adapterkabel AMP 9
