1 187820X421 Bracket, Handle
2 72140512 Bolt, Carriage 5/16-18 x 1-1/2
3 165787 Grip, Handle
4 166376 Handle, L.H.
5 73680500 Nut, Hex, Crownlock 5/16-18
6 19111116 Washer 11/32 x 11/16 x 16 Ga.
7 19121414 Washer 3/8 x 7/8 x 14 Ga.
8 74760520 Bolt, Hex Head 5/16-18 x 1-1/4
9 74760516 Bolt, Hex Head 5/16-18 x 1
10 10040500 Washer, Lock 5/16
11 73220500 Nut, Hex 5/16-18
12 98000129 Nut, Hex, Flanged 5/16-18
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
13 180847 Bolt, Carriage, Gr. 5 5/16-18 x 3/4
14 181452X421 Panel, Handle
16 166377 Handle, R.H.
19 188562 Tine Control Lever Assembly
(Includes Cable)
20 188555 Pin, Pivot
29 12000059 Retaining Ring
43 188177 Cable Assembly, Reverse
44 181580 Clip
FT-handle_assy_1
FRONT TINE TILLER – MODEL NUMBER HDF900 (MFG. ID. NO. 96082001700)

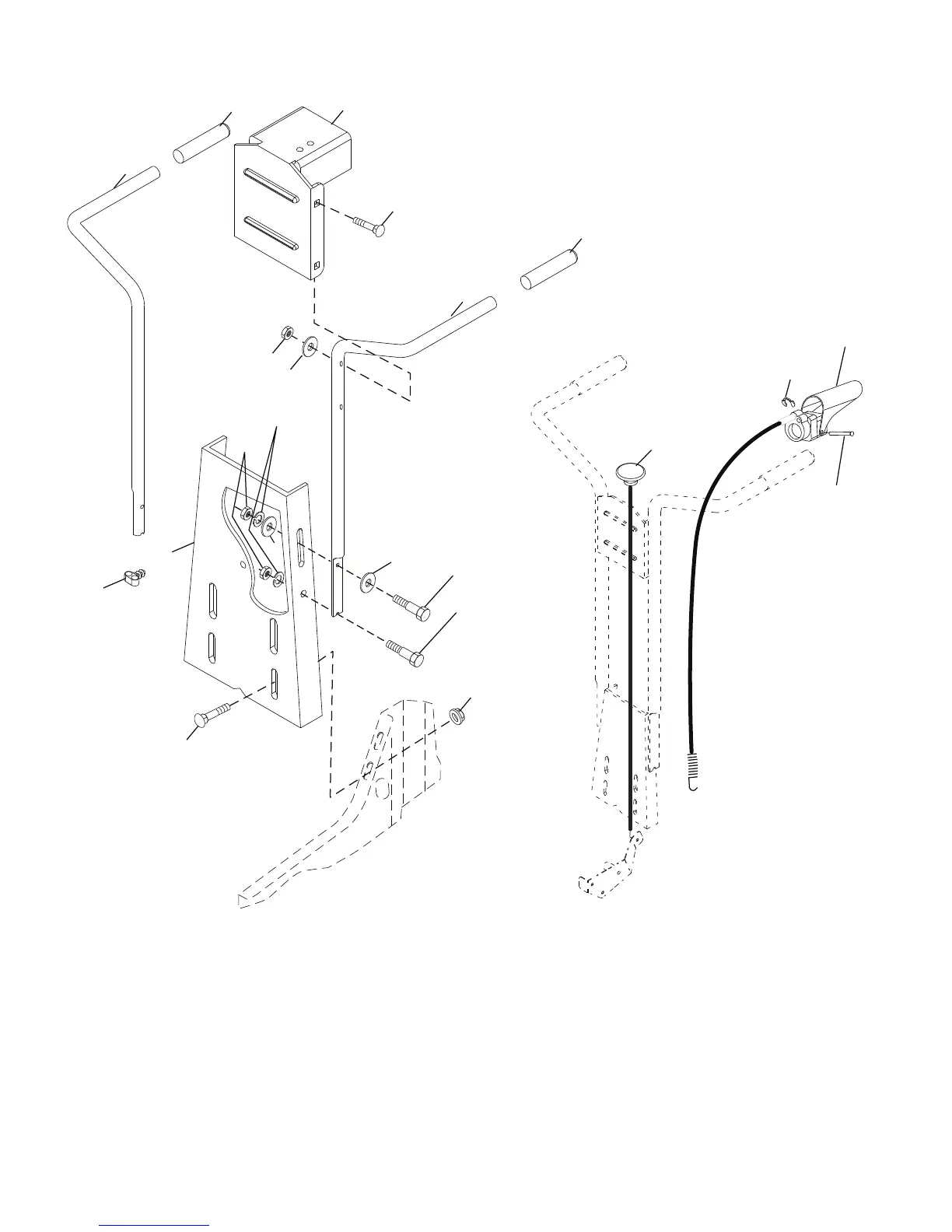

HANDLE ASSEMBLY
NOTE: All component dimensions are given in U.S. inches.
1 inch = 25.4 mm
To Next Page
