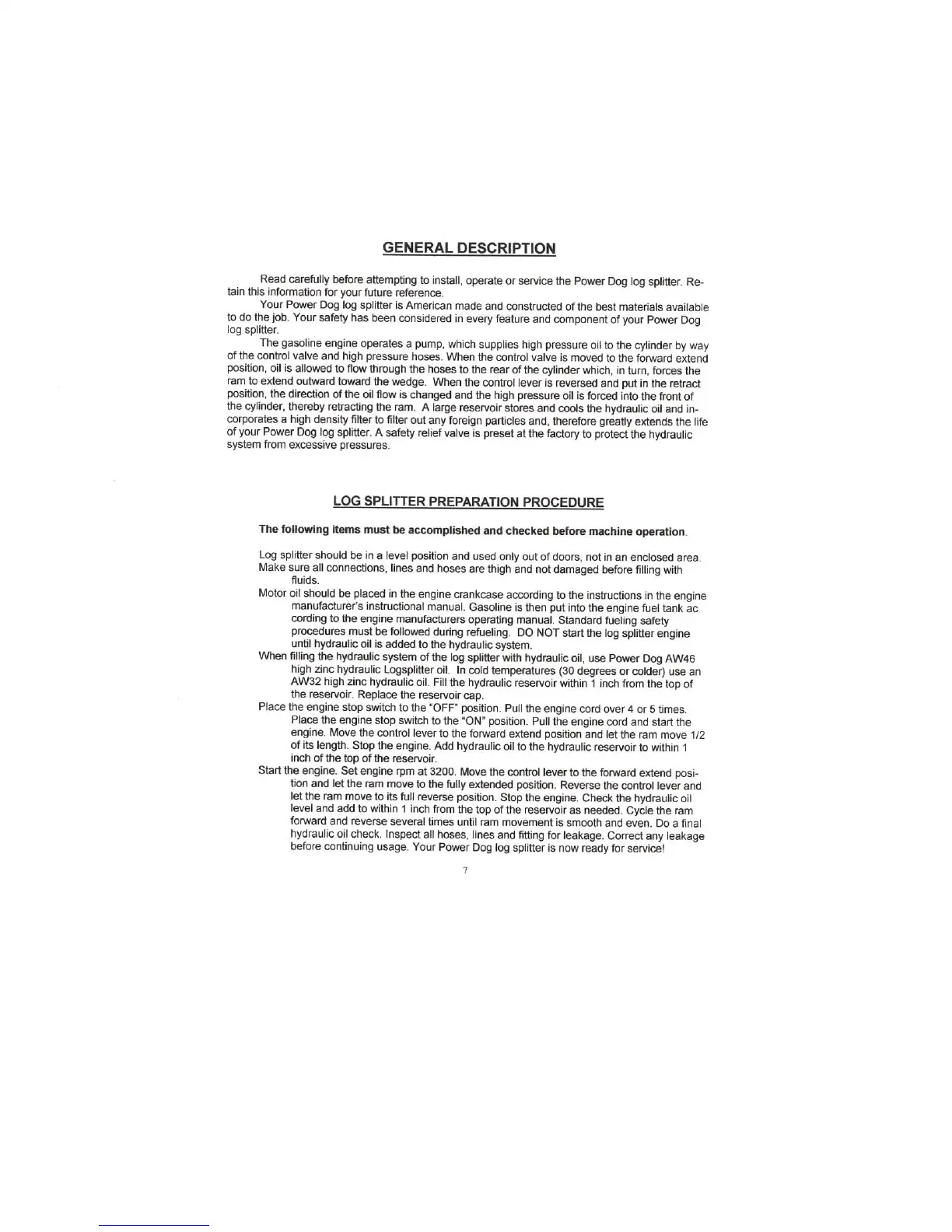

POWER DOG QUICK SPLIT 24 - General Description; Log Splitter Preparation Procedure

GENERAL
DESCRIPTION
Read
carefully bebre
attempting
to
install,
operate
or servic€ the
power
Dog log splitter R+
tajn this information
for
your
future
rebrence.
Your
Power Dog
log sptitter is Amedc€n
made
and constructed
of the b€st male.iats
avaitable
to do
the
job.
Your safety has
been considered
in every featu€
and componenl
of
your
power
Dog
log
splitter.
The
Oasoline
engine operates
a
pump,
whi6h
supplies high
pressure
oilio
the cylinder by way
of the control valve
and high
pressu€
hoses. When
the control vatve
is moved
to the foMard exeno
position,
oil
is
allow€d to flow
lhrough the hoses
to the rcar of
the cylinder which, in
fum, forces me
ram tO extend
outward loward
the wedge. When
the control lever
is reveBed
and
put
in the reuacr
position,
the directjon
of the oil flow is
changed
and the high
pressu.e
oil is forced into
the fiont of
the cylinder,
thereby reiracting
lhe ram. A laage
rcs€rvoir
slores and cools
the hyd€ulic oil and in-
corporates
a
high
density ffter
to filter out any
foreign
partjcles
and, therefore
grealy
extends
the
life
ol
your
Power Dog
log splitter. A
safuty relief valve
is
preset
at
the
factory
to
protecl
the hydEutic
system from
excessive
pressures.
LOG SPLITTER
PREPARATION
PROCEDURE
The following
itenrs
must b€ accomplished
and checked beforc machine
operrtion
Log splitter
should be in
a
level
position
and used
only oul of doors, not in
an enclosed
area.
Make
su€ allconnections,
lines
and hoses
are thigh and not damaged
before filling with
lluids.
Moto.
oilshorJld
be
placed
in the
engine
crankcase accoding
to lhe
instructions
in
iheengine
manufacture/s
instructional
manuat.
Gasoline is then
put
into the
engine fueltank ac
cording to ihe
engine manufachrrers
operating manual,
Standad
fueling safet
procedures
mugt
be followed during
refueling. DO
NOT start the tog
splitter engine
until hydraulic
oit
is
added to
the hydrautic
system.
\
tlen
flllng
lhe hydraulic
system ot the log
splitbr wiih hydraulic
dl, use
power
Dog AW46
high nnc hydraulic
Logsplitter
oil. tn
cotd lemp€ratures (30
deg€es
or coldei) use an
AW32 high
zinc hydraulicoil.
Fillthe
hydraulic .eservoir
within i inch from
the toD
of
lhe regervoir
Replace lhe res€rvoir
cap
Place
the engine slop
switch to
the
'OFF
posiiion_
pu
the engine
cord over 4 or 5 times.
Place
the engine
stop switch
to the
'ON'
position.
pullthe
engine
cord and start me
engine.
Move the contol
bver to
the
foMard
extend
position
and let
the ram move 1/2
of its length.
Stop the engine.
Add hydrautic
o to the hydraulic
reseNoir to wilhin 1
inch
of ihe toD of the reservoir.
Start
the engine. Set engine
rpm at 3200.
l/lle the controt tever
to the foMard
extend
posF
tion and let
the €m move
to the fulty exbnded
position.
Reverce
lhe cont.ot tever
and
let
lhe ram move
to its fult revers€
poBition.
Slop
the engine. Check
lhe hydrautac oit
level
and add
to within 1 inch trom
the top of
the
reseNoir
as needed.
Cvcle the ram
foMard
and reveEe
severaltimes
untit
ram
movemenl is
smooth and
eten. Do a final
hyd€ulic
oilcheck. Inspect
atlhoses, linesand fitting
for leakage.
Cofiect
any
leakage
before
continuing
usage. Your Power
Dog log
gplitter
is now rcady for
servace!
