3
UNPACKING INSTRUCTION
CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been
received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from
shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be
returned, it is important that the product is returned in the original factory box and packaging.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The
arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.
POWERSUPPLY
On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains
voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also
be directly connected to the mains and may be used. No dimmer or adjustable power supply.
Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate
electrical ground to avoid the risk of electrocution or fire.

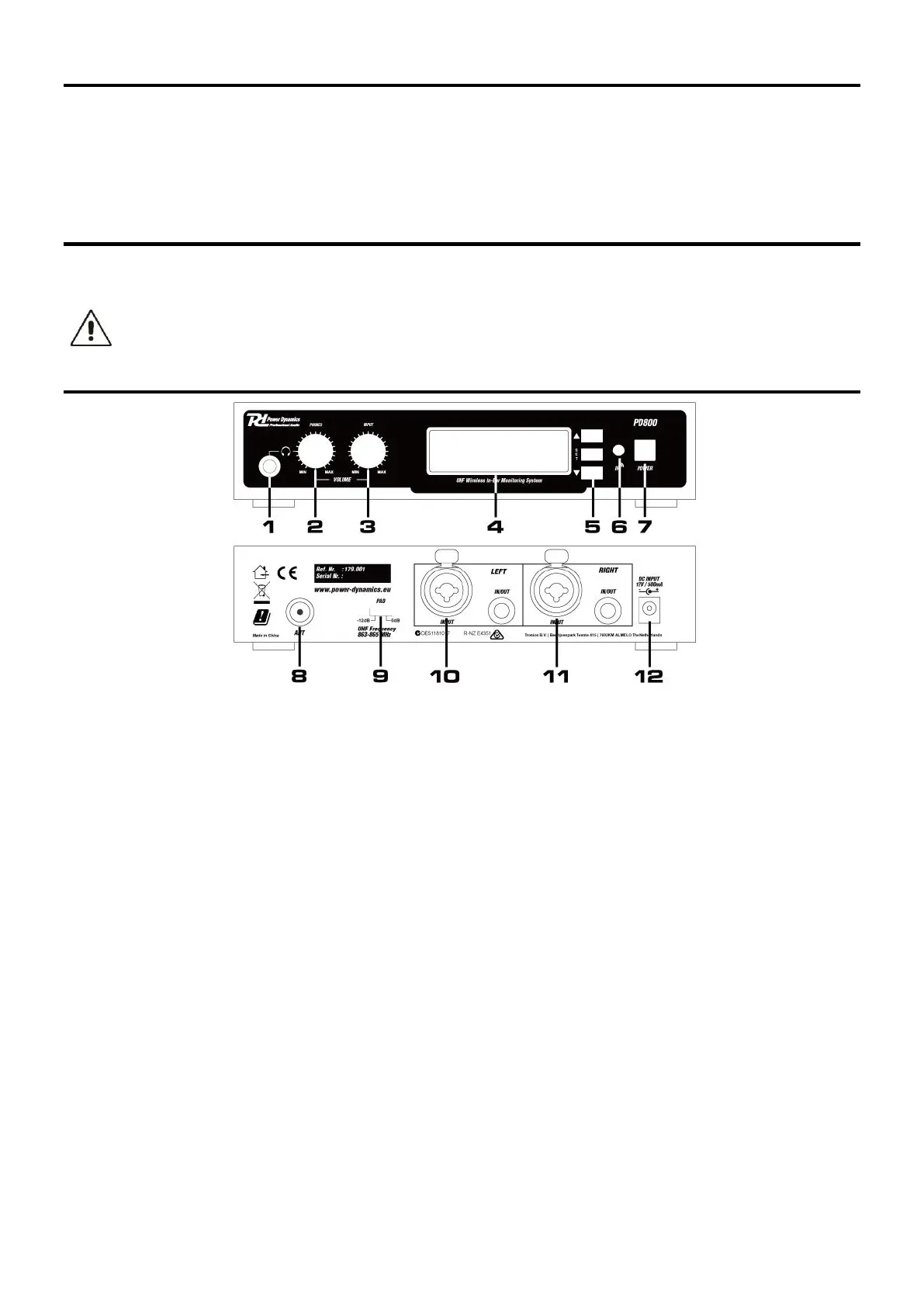

TRANSMITTER
1. Headphones Jack
2. Phones output Control
Controls the headphone volume, turn left to decrease the audio level, turn right to increase.
3. Input level
Controls the volume of input.
4. LCD Screen
5. Up / Set / Down Button
6. Infrared signal emission window (IR window)
7. Power On/Off & exit button
This button is to be used as a power On/Off switch and as any setting exit key. When the PD800 transmitter power is
off, press this button long until the power is turned on. When the power is on, the LCD display will light up. While the
power is on and trying to turn off the power, press this button steadily until the power is turned off.
8. BNC Antenna Jack
9. PAD Switch
Use to adjust output gain. To cut gain, set to (-12dB).To leave gain unaffected leave set the switch to (0dB).
10. Left In-/Output
Combo connector for signal input via XLR or 6.3mm (1/4”) jack or use the output connector to connect for example
active monitor speaker.
11. Right In-/Output
Combo connector for signal input via XLR or 6.3mm (1/4”) jack or use the output connector to connect for example
active monitor speaker.
12. 12VDC Input
