5.FAN
Inordertopreventrisingtheinsidetemperature,theinsideheatisemittedoutside. 
6.POWERSWITCH
TurnstheunitONorOFF.Alwaysturnlevelcontrolsdownbeforeturningontheunit.
7.EarthLift

8.ACPOWERCORD/FUSEHOLDERS
Forselectingthepropervo ltage(115/230AC)to
matchthepowersupplyinyourarea.Note:Toavoid
damagetoyourunit,alwaysmakesurethisswitchissettothecorrectsupplyvoltage.Damage
causedbyimproperuseisnotcoveredbythewarranty
C.CONNECTIONS

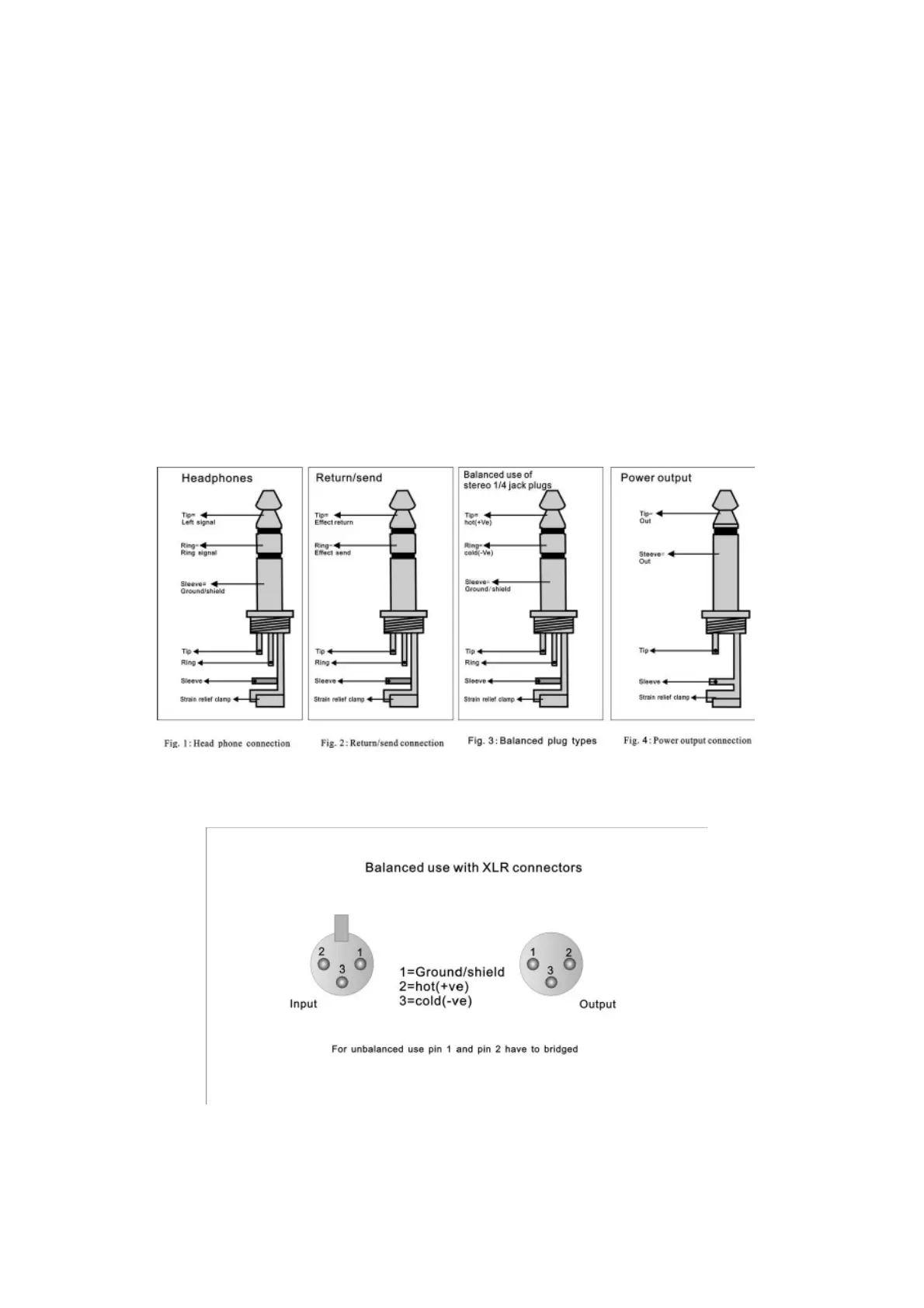

Youwillneedalotofcablesfordifferentpurposes–
seethefollowingfigurestomakesureyouhave
gottherightcables.Unbalanced equipmentmaybeconnectedtoabalancedinputs/outputs.Either
usemono1/4＂plugsorconnectringandsleeveofTRSplugs.

