Speakerconnections
Oneormorespeakers(2,4,or8‐Ohm)speakerscanbeconnectedtotheamplifierwithorwithout
transformers.However,beforeyouconnectanyspeakertotheamplifier,thetotalspeaker
impedancemustbecalculatedinordertoavoiddamagetotheamplifier.Atotalspeakerimpedance
greater
than16Ohmsorlessthan4Ohmscandamage yourequipment.Tobeginwith,inorderto
ensureequalvolumefromeachspeaker,allconnectedspeakersshouldhavethesameimpedance.

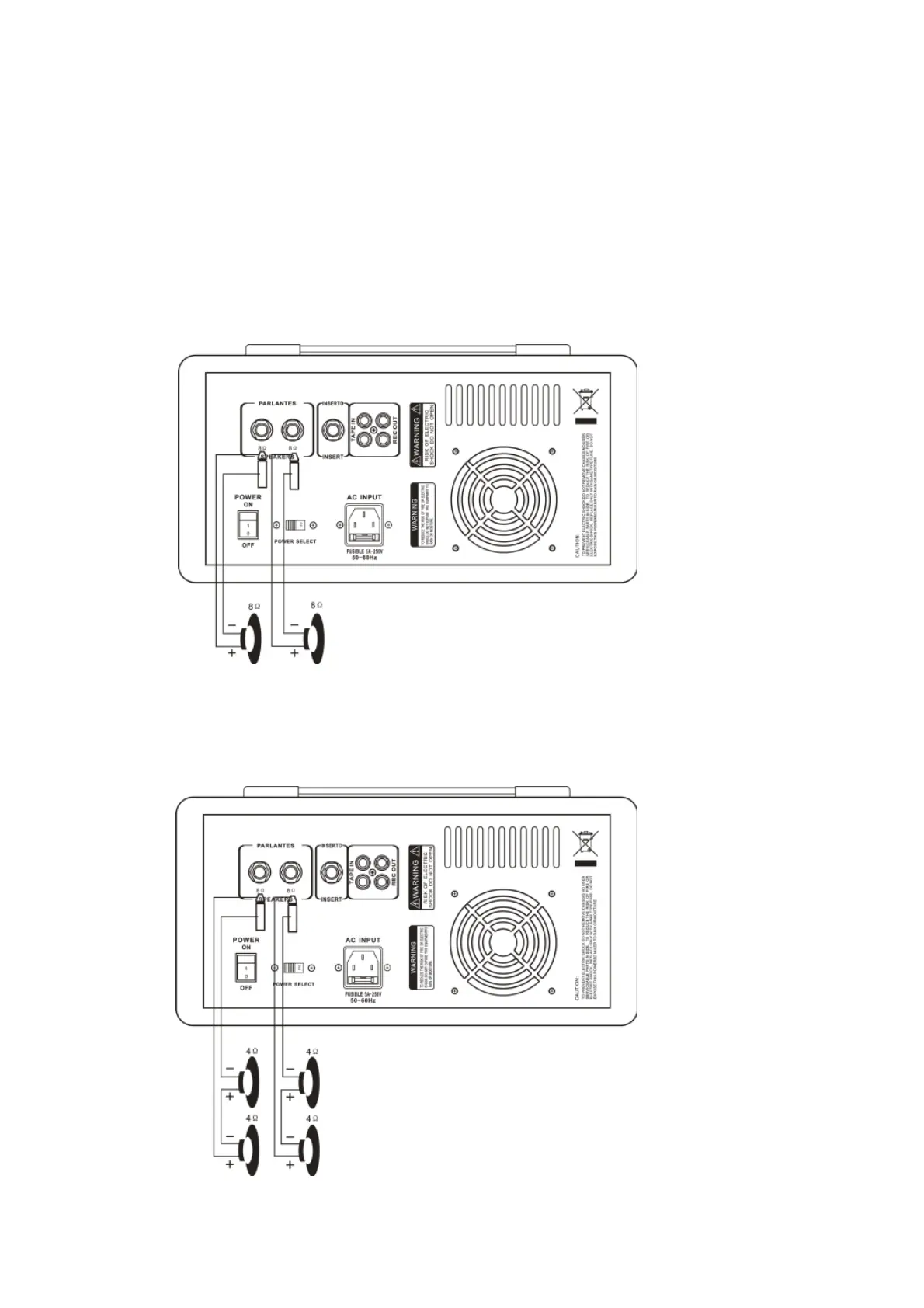

System1:Singlespeakersystem










System2:Two(ormore)speakersinseries











