Power Dynamics PDC75 User Manual

5

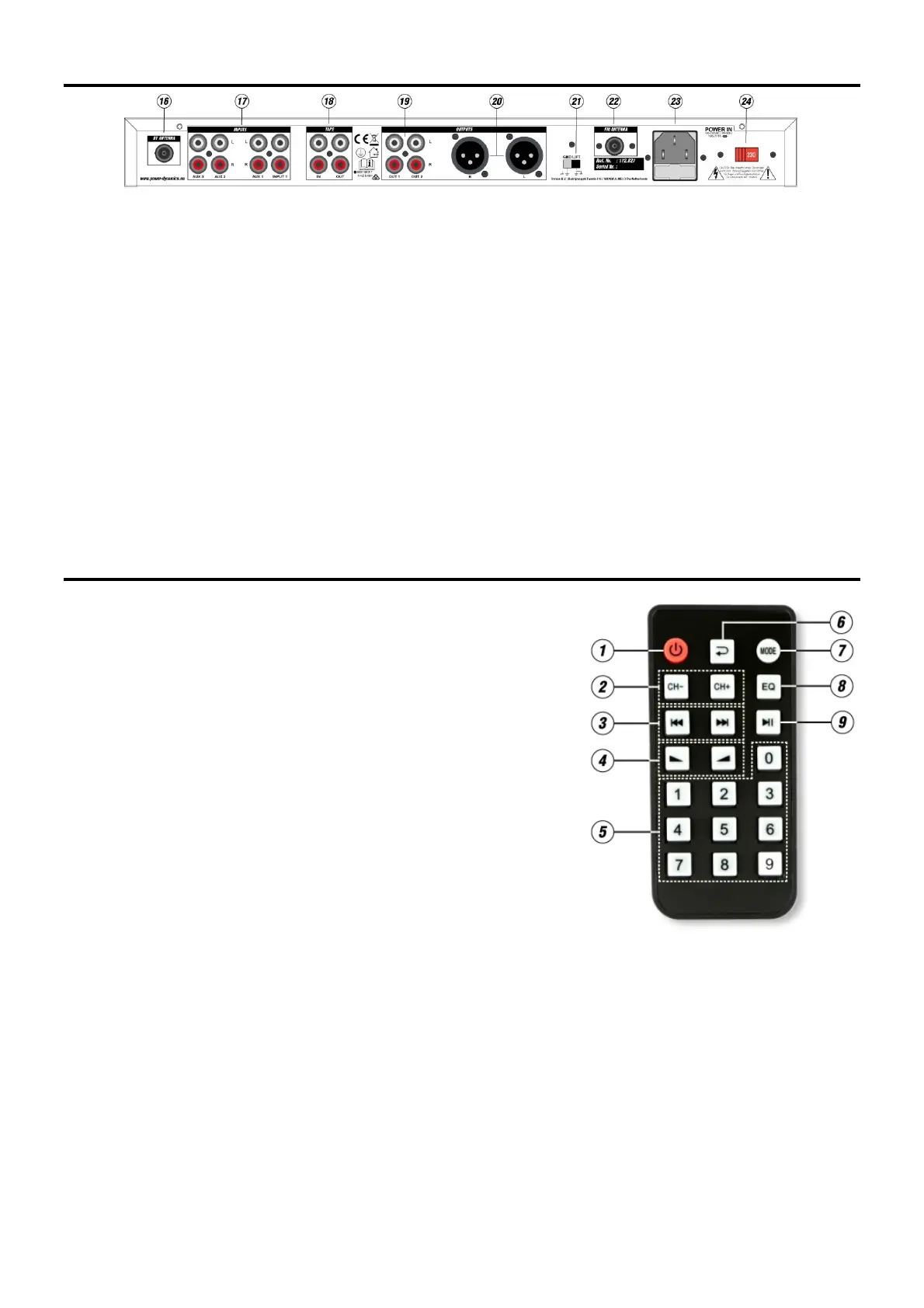

REAR PANEL
16. FM Antenna
This connector is used to fit an external FM antenna in order to use this. FM will not be supported.
17. RCA Inputs
Connect the audio output jacks of DVD/CD to these jacks.
18. Tape input and output
Press “TAPE”-button (13) on the front panel to monitor the headphone or connect with another amplifier through REC
INPUT. To connect with other audio input jacks to PLAY OUTPUT.
19. Balance output
RCA types AUX OUT jacks.
20. Unbalanced output
XLR types AUX OUT jacks.
21. Ground
Switch electrical ground ON or OFF.
22. Tuner antenna
Connect for FM antenna.
23. Power socket
To connect the power cord.
24. Voltage selector
To select the correct local voltage.
REMOTE CONTROL
1. Press this button to turn on the Media player.
2. When in FM mode, press this two buttons to select previous or next
channel.
3. Press these two buttons to select the previous or next track in USB or
SD or BT mode.
4. Volume up or down.
5. Press the numbers to select the tracks directly. The unit takes 1-2
seconds to response
6. Press this button to select the different repeat mode. If press this button
for more than 3 seconds, it will go to folder searching.
7. Press this button to select the playing mode, such as USB/SD/FM/BT.
8. EQ function, if the mp3 with EQ.
9. Play and pause function for MP3.
