UNPACKING INSTRUCTION
CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are
present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if
any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing
materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original
factory box and packing.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The
arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

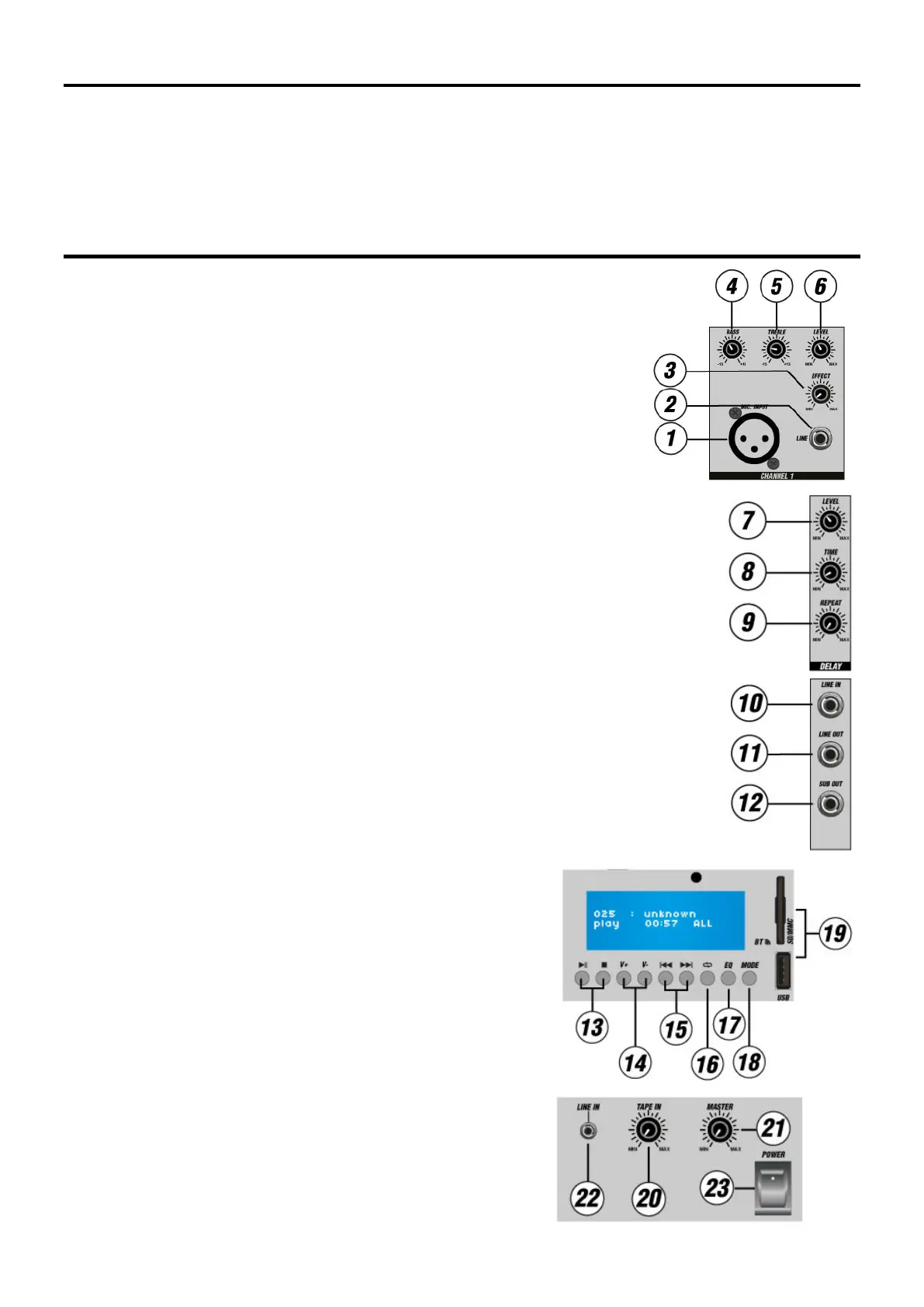

FRONTPANEL
1. Microphone Input
Balanced XLR input jack.
2. Line Input
Unbalanced 6.3mm (¼”) jack line input.
3. Effect Level
Adjust the signal level which will be sent to the built-in delay.
4. Bass
Adjust high low tone control of each channel.
5. Treble
Adjust high tone control of each channel.
6. Level
Adjust the level control of each channel.
7. Delay Level
Adjust the mix level of the effect sound.
8. Delay Time
Adjust the time interval of the delays.
9. Delay Repeat
Adjust the rate of the delays.
10. Line Input
Unbalanced 6.3mm (¼”) jack line input.
11. Line Output
Unbalanced 6.3mm (¼”) jack line output.
12. Sub Output
(171.159 only)
Unbalanced 6.3mm (¼”) jack line output. This output will send signal under 120Hz to your
active subwoofer.
13. Play / Stop Button
Press this button for play or stop the title.
14. Volume Button
Press this button to increase or decrease the MP3 volume.
15. Next / Previous Button
Press this button for title selection (short actuation) and fast forward/reverse (long actuation).
16. Repeat Button
Press key for repeating of single track or all tracks.
17. Equalizer Button
Press this button to select a pre-program equalizer setting.
18. Mode Button
Press the button to select BT/USB/SD function.
19. USB/ SD Slot
Connect your SD/card or USB devices to this slot to play music with
MP3 or WMA format
20. Tape Input Level
Adjust the level control of tape input.
21. Master Volume
Adjust the overall output level.
22. Line Input
Unbalanced 3.5mm (1/8”) jack line input. Signal from external
device can be added to the main output.
23. Power Switch
Press this switch to turns the power mixer ON/OFF.
