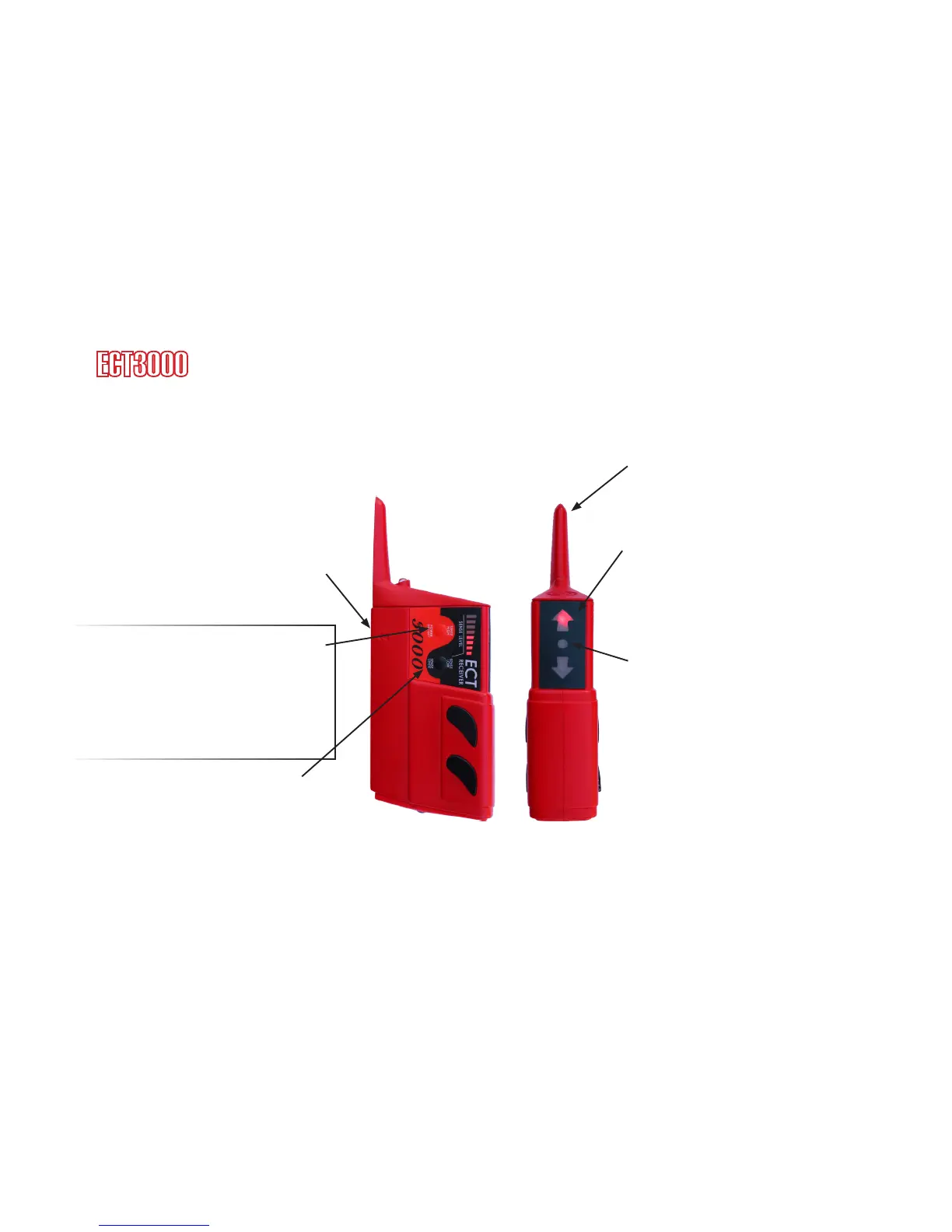

The Receiver
The receiver is designed to detect the “Grounded Circuit signals” and the open circuit signals from the transmitter.
11
Auto shut-o feature
The receiver will automatically shut-o
within 10 minutes when it is NOT receiv-
ing a signal.
The “Open & Short Pick-Up”
located on the side of the receiver housing
is to sense and detect complete and open
circuit signals.
The “Power On/O / Sense High Button
performs three functions:
1. It turns the receiver ON and enters “pulse
mode” (see “Pulse Mode” pg. 12)
2. It increases the receiver signal sensitivity.
(greater distance range)
3. Turns o the receiver
The “Wire Harness Probe” is for probing
a harness to detect the open circuit signal.
(See “Tracing Circuits that are Shielded”
pg.21 )
The “Direction to Short/ Ground” indica-
tors point you in the direction to the short
or ground of the complete circuit. (See “Di-
rection to the Short Circuit” pg. 15)
The “Open Circuit” LED on the housing
indicates when it is receiving an open circuit
signal.
The “Sense Lock / Sense Low Button
performs two functions:
1. It locks the receiver to the Open or Shorted
circuit signal.
2. It turns receiver signal sensitivity down.
(tighter distance range)
