Installation Instructions for Power Sentry Emergency Battery Packs –QD MVOLT Series
Page 4

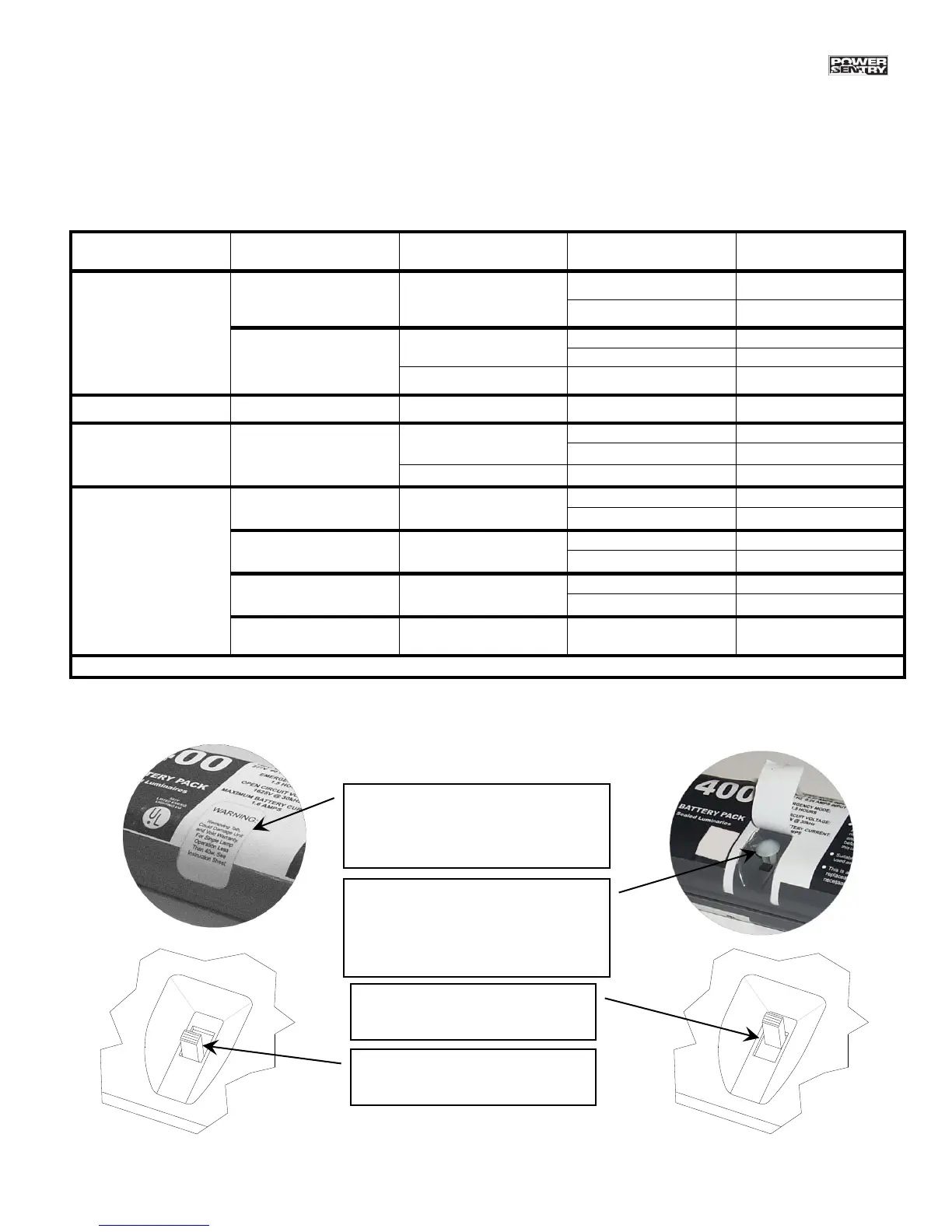

Lamp Selector Table
(PS1400 Only)
The PS1400 has a lamp selector switch that can be used to optimize the performance when placed in the “UP” position.
However, based on your lamp configuration, the PS 1400 can only be placed in the “UP” position if designated in the
lamp selector table. Battery Packs are shipped from the factory in the “DOWN” position.
Lamp Type
Base Type
Lamp Wattage /
Length
Number of
Emergency Lamps
Lamp Selector
Switch Position
T5,T8,T12
(5/8”,1”,1 1/2”)
SINGLE or BIPIN
14-24W (2’-4’)
1
UP
2
DOWN
SINGLE or BIPIN
28-40W (2’-4’)
1
UP
2
DOWN
40-215W (5’-8’)
1
DOWN
T5HO
BIPIN (G5)
24-54W (2’-4’)
1
DOWN
Long Compact
PL
4 PIN (2G11)
18-39W
1
UP
2
DOWN
40-55W
1
DOWN
Compact
PL
4 PIN (G24, GX24)
13-26W
(Quad Tube)
1
UP
2
DOWN
4 PIN (G24,GX24)
18-26W
(Triple Tube)
1
UP
2
UP
4 PIN (G24,GX24
32W
(Triple Tube)
1
UP
2
DOWN
4 PIN (GX24)
42W
(Triple Tube)
1
DOWN
If the sum of the Emergency Lamp rated watts exceed 40 W the Selector Switch must be in the DOWN position
Lamp Selector Switch Location
(PS1400 Only)
Lamp Selector Switch is
located under perforated
panel on product label
White button locking pin
must be removed before
“UP” position can be
selected
Lamp Selector Switch in
UP Position
Lamp Selector Switch in
DOWN Position
