Power Wheels Barbie - Front Wheel Assembly

10

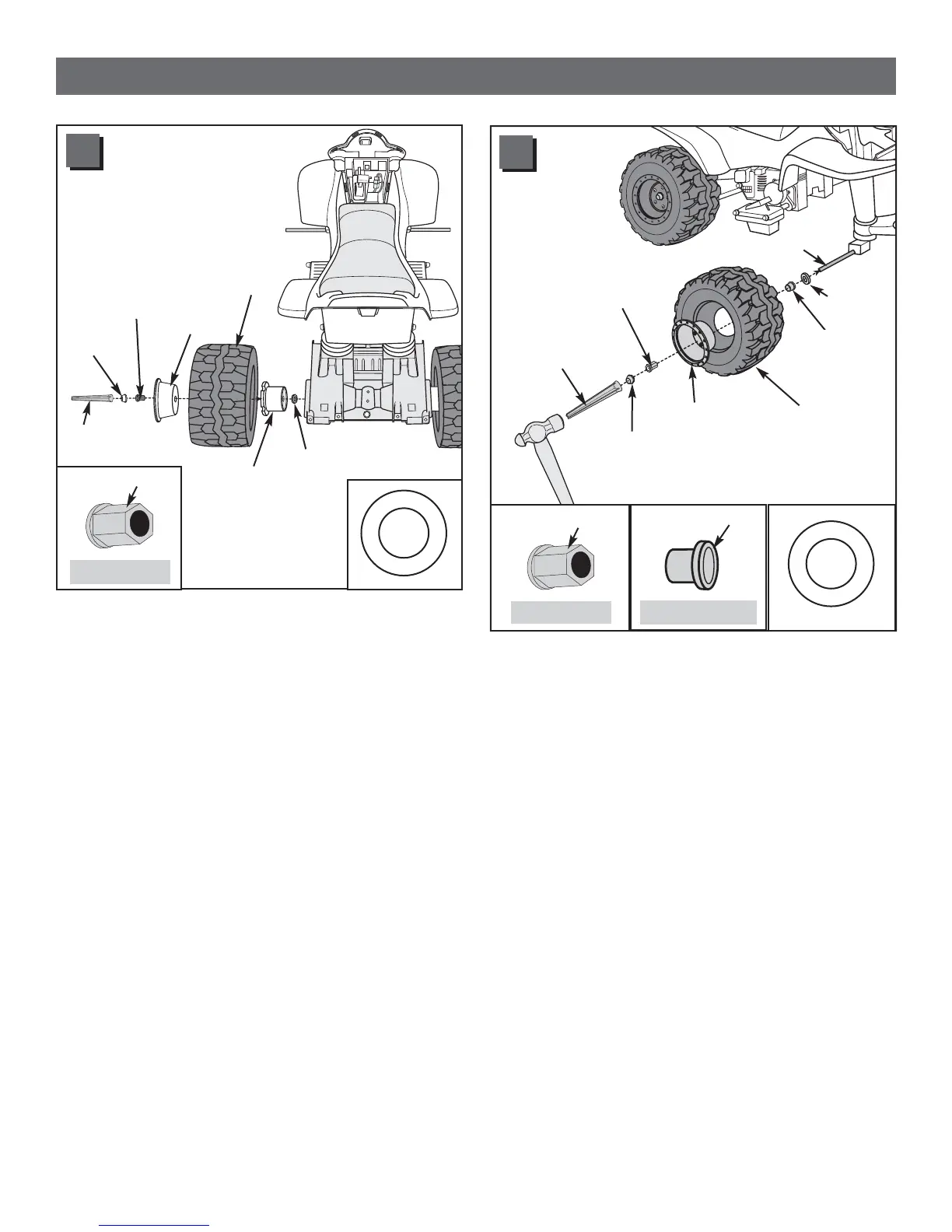

• Slide a washer onto one of the front axles.
• Slide a round bushing, ring side first, onto the same
front axle.
• Slide a wheel onto the front axle.
• Slide a hubcap onto the front axle.
• Slide a hex bushing, barrel side first, onto the front axle.
• Fit a cap nut on the end of the front axle.
• Fit the cupped end of the cap nut assemby tool over
the cap nut and tap the end of the cap nut assembly
tool with a hammer to secure the cap nut on the end
of the axle.
• Repeat this procedure to assemble the remaining front
wheel (and a washer, round bushing, hubcap and
capnut) to the other front axle.
Wheel
Round
Bushing
Washer
Hubcap
Hex Bushing
Front Axle
Cap Nut
Assembly
Tool
Cap Nut
Assembly
Washer
Rear
Wheel
Driver
Hex
Bushing
Cap Nut
Cap Nut
Assembly Tool
Hubcap
Wheel
• Slide a washer onto the rear axle.
• Slide the rear wheel driver onto the rear axle. Make
sure the rear wheel driver fits onto the pins on the
motor assembly.
• Slide a wheel onto the rear axle. Make sure the
ribs on the wheel fit into the grooves on the rear
wheel driver.
• Slide a hubcap onto the rear axle.
• Slide a hex bushing, barrel side first, onto the rear axle.
Press all but the ring on the hex bushing into the wheel.
• Fit a cap nut on the end of the rear axle.
• Fit the cupped end of the cap nut assembly tool over
the cap nut and tap the end of the cap nut assembly
tool with a hammer to secure the cap nut on the end
of the rear axle.
4
5
Barrel Side
Hex Bushing
Barrel Side
Hex Bushing
Ring Side
Round Bushing
