Power Wheels Barbie - Parts Diagram

6

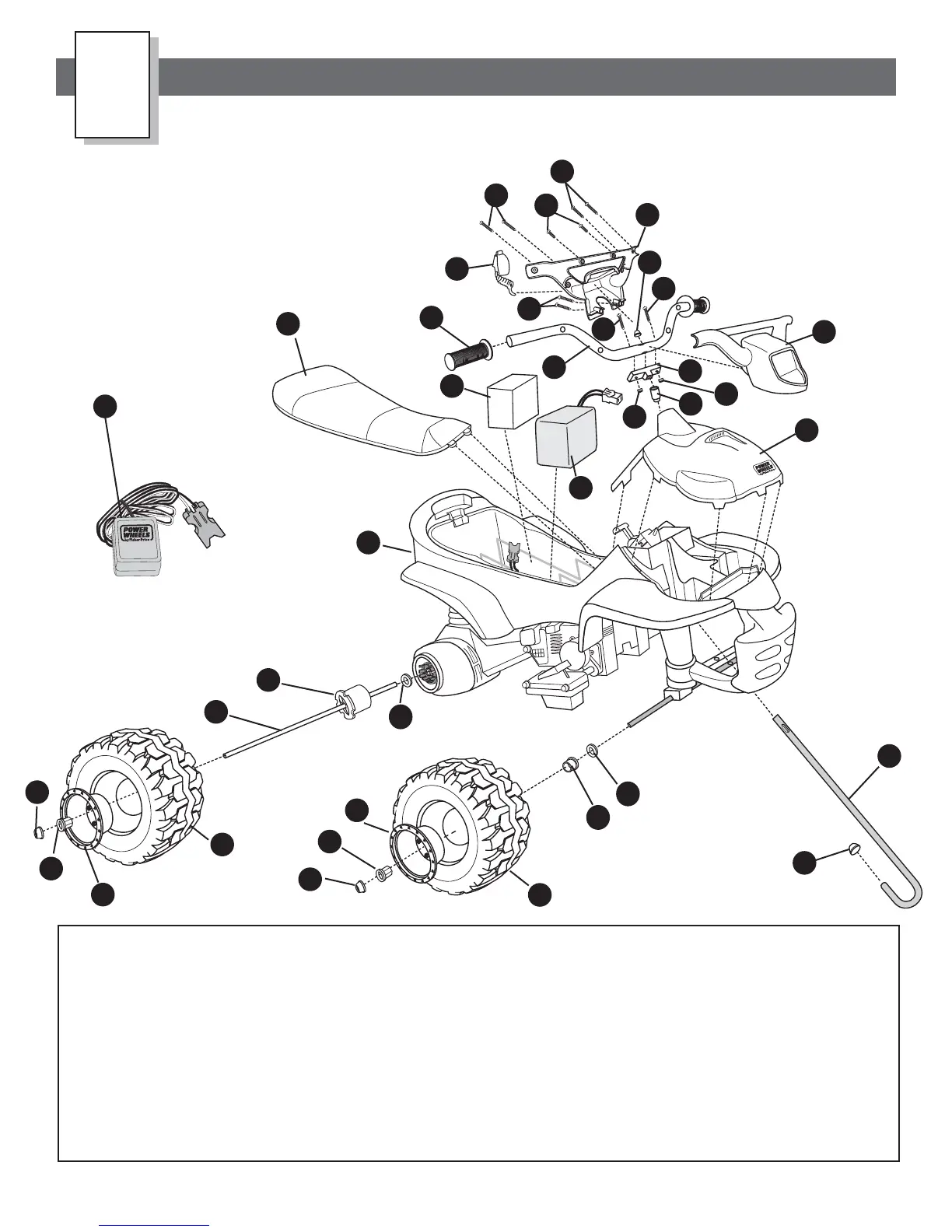

Parts Diagram
D
1. Vehicle Body
2. Cowling
3. Seat
4. Wheel - 4
5. Hubcap - 4
6. Cap Nut - 6
7. Steering Column
8. Steering Bushing
9. Handlebar - Front
10. Handlebar - Back
11. Microphone
12. 6 Volt Battery
13. Hand Grip - 2
14. Handlebar
15.
7
/
16
" Washer - 4
16. Handlebar Neck
17. Hex Bushing - 4
18. Round Bushing - 2
19. Rear Wheel Driver - 2
20. #10 x 1
5
/
8
" Screw - 2
21. Rear Axle
22. #10 Lock Nut - 2
23. #6 x
1
/
2
" Screw - 2
24. #6 x 1" Screw - 6
25. Foam Spacer
26. 6 Volt Charger
Not Shown
Label Sheet
Cap Nut Assembly Tool
T
M
1
26
3
11
24
24
14
13
9
8
4
19
5
5
17
17
6
7
15
2
20
20
16
12
6
21
15
18
25
®
23
22
22
24
6
6
4
Note: Some parts are assembled on both sides of the vehicle.
This illustration shows assembly on right side only.
10
